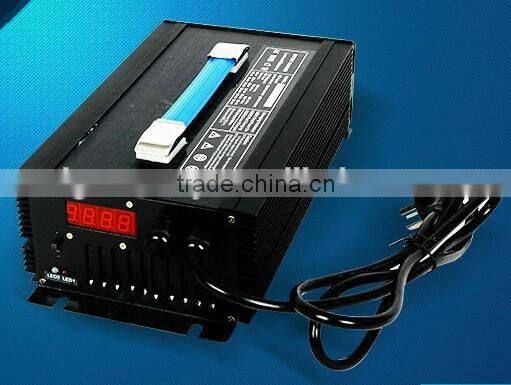

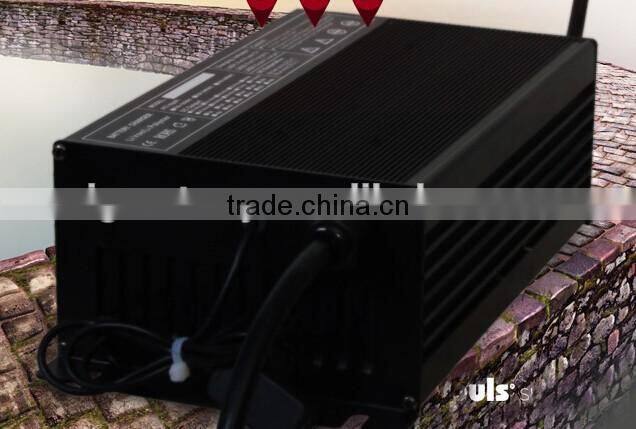

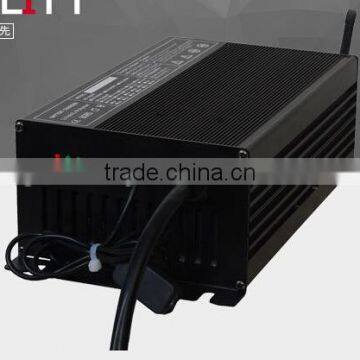

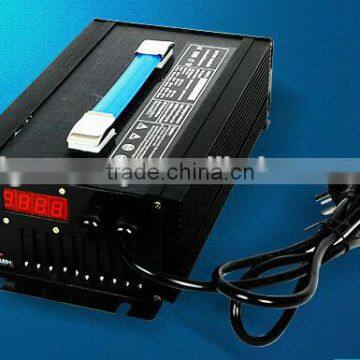

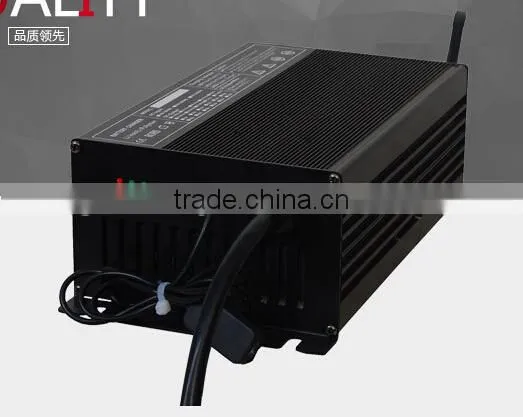

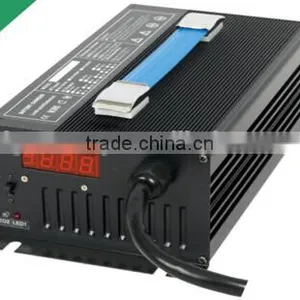

Help Center900W Lead Acid /li Ion Battery Charger for Mytest Boat 12v/24v/36v/48v/ 60v/72v
Related Products
-
900W Lead Acid/li Mn/LiFePO4/ Battery Charger 12v/24v/36v/48v/ 60v/72vNegotiableMOQ: 1 Piece -
600W 12v/24v/36v/48v/ 60v 72v Lead Acid/li Ion/ Battery ChargerNegotiableMOQ: 1 Piece
-
360W 12v/24v/36v/48v/ 60v/72v Lead Acid/li Mn/LiFePO4/ Battery ChargerNegotiableMOQ: 1 Piece
-
240W 12v/24v/36v/48v/ 60v Portable Lead Acid/li Ion/ Battery ChargerNegotiableMOQ: 1 Piece
-
180W Portable Lead Acid/ li Iron/Li Polymer Battery ChargerNegotiableMOQ: 1 Piece
Features:
1.short-circuit protection,charger o/p current automatically when short-circuit.
2.overload protection:charger o/p current limited automatically when overload.
3.reverse polarity protection:it will shut down when the wire is connected,charge DC fuse or remove the fault.
4.3-stage charging mode: CC(constant current), CV(constant voltage) and float stage.
5. Reliable, elegant,Small size, light,
6.charging state:two LED display.
7.all kinds of production has passed the CE certification.
8.Efficiency: ≥88 %( full capacity)
Operate Condition:
1.Temperature: -10~45 Degree
2.Hi-pot: ≥AC1500 (P to S),≥AC1500 (P to FG)
3.Life Expectancy: 50,000H at 25 Degree
Apply to:
1. Electrical forklift
2. Electrical motorcycle
3. Electrical tourist-car
No. |
spec |
Constant voltage |
Constant current |
Transition/ Cut-off |
Weight |

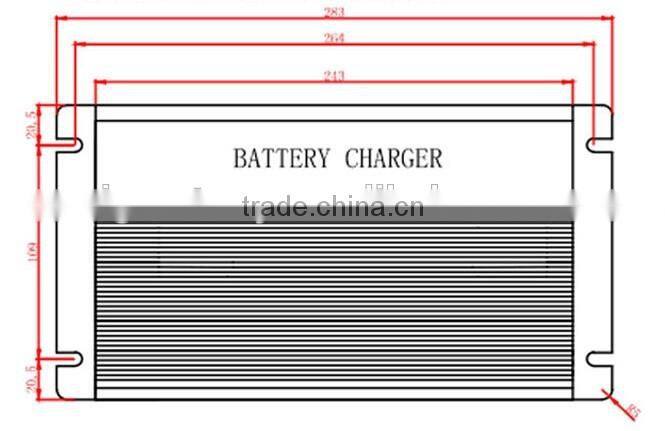

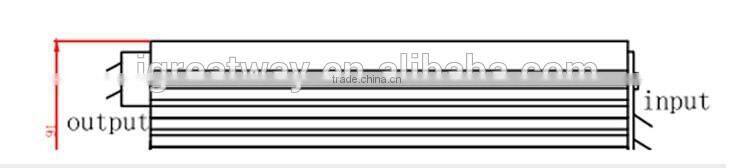

size |
|||
|
|
Lead-acid |
Li-Mn |
Lifepo4 |
Max (A) |
Lead-acid |
Li |
(kg) |
(mm) |
1 |
12V |
14.7V |
16.8V |
14.6V |
40 |
8.0 |
4.0 |
3.5 |
260*150*88
|
2 |
24V |
29.4V |
29.4V |
29.2V |
25 |
5.0 |
2.5 |
||
3 |
36V |
44.1V |
42.0V |
43.8V |
18 |
3.6 |
1.8 |
||
4 |
48V |
58.8V |
54.6V |
58.4V |
15 |
3.0 |
1.5 |
||
5 |
60V |
73.5V |
75.6V |
73.0V |
12 |
2.4 |
1.2 |
||
6 |
72V |
88.2V |
84.0V |
87.6V |
10 |
1.0 |
0.5 |
||
Features |
1 |
Full automatic transition of CC, CV and Float/cut-off |
|||||||
2 |
Precise limit of voltage & current, guarantee fully charged and avoid over charge |
||||||||
3 |
Protections: over current, over voltage, short circuit and reverse polarity |
||||||||
4 |
High Efficiency: 95%~98%, PFC: 0.96, eco-friendly |
||||||||
5 |
Two LED indicators, Aluminium, elegant and reliable |
||||||||
6 |
CE & ROHS Certified, Safety and High Quality |
||||||||
|
Note: Cut-off point for Li battery is 5% of CC, and it can be set between 3%-10%. | |||||||||
lead acid battery: AGM/GEL/VRLA battery
lithium battery : Li-Mn, LiFePo4
our company specialized in the manufacture and export of electric system products , including,pure sine wave power inverter, motor controller,charger,DC-DC converter,electronic throttle,battery discharge indicator,hour tachometer ,air conditioning system,electric system solution .etc
