600W 12v/24v/36v/48v/ 60v 72v Lead Acid/li Ion/ Battery Charger

600W 12v/24v/36v/48v/ 60v 72v Lead Acid/li Ion/ Battery Charger photo-1

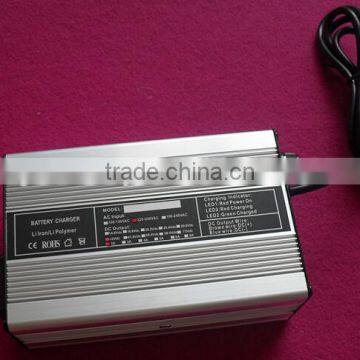

600W 12v/24v/36v/48v/ 60v 72v Lead Acid/li Ion/ Battery Charger photo-2

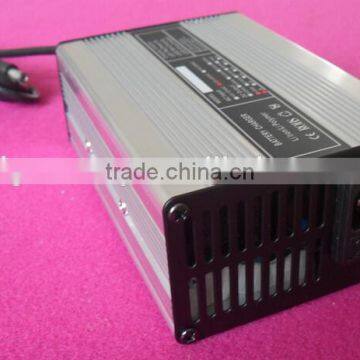

600W 12v/24v/36v/48v/ 60v 72v Lead Acid/li Ion/ Battery Charger photo-3
600W 12v/24v/36v/48v/ 60v 72v Lead Acid/li Ion/ Battery Charger photo-4

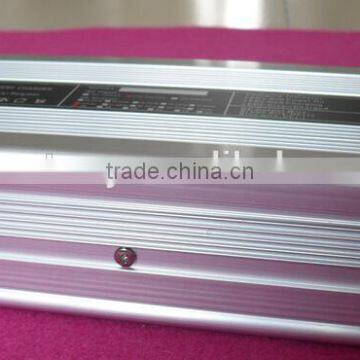

600W 12v/24v/36v/48v/ 60v 72v Lead Acid/li Ion/ Battery Charger photo-5
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
GW
Model Number:
GW-E-600W
Use:
Other, electric golf carts
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGAO
Delivery Detail:
Delivery time depends on order quantity.
Brand Name GW
Model Number GW-E-600W
Use Other, electric golf carts
Type Electric
Place of Origin Shandong, China

 600W 12v/24v/36v/48v/ 60v 72v lead acid/li ion/ battery charger



600W 12v/24v/36v/48v/ 60v 72v lead acid/li ion/ battery charger



600W 12v/24v/36v/48v/ 60v 72v lead acid/li ion/ battery charger



600W 12v/24v/36v/48v/ 60v 72v lead acid/li ion/ battery charger



600W 12v/24v/36v/48v/ 60v 72v lead acid/li ion/ battery charger



Packaging & Shipping



600W 12v/24v/36v/48v/ 60v 72v lead acid/li ion/ battery charger





Product Description



Operate Condition:

1. Input voltage: 90 V - 264 V

    Output voltage: 12 V - 48 V

    Output current: 3 A - 8 A

2.temperature: - 10 ℃ ~ 45 ℃

3.Life Expectancy: >50,000H

Apply to:
Electric car instead of walking ,E-Tool ,Lithium battery charger group



ES-E(600W)Battery Charger Datasheet:

No.

spec

Constant voltage

Constant current

Transition/

Cut-off

Weight

size





Lead-acid

Li-Mn

Lifepo4

Max (A)

Lead-acid

Li

(kg)

(mm)

1

12V

14.7V

16.8V

14.6V

25

5.0

2.5

2.5

205*120*70



2

24V

29.4V

29.4V

29.2V

18

3.6

1.8

3

36V

44.1V

42.0V

43.8V

12

2.4

1.2

4

48V

58.8V

54.6V

58.4V

10

2.0

1.0

5

60V

73.5V

75.6V

73.0V

8

1.6

0.8

6

72V

88.2V

84.0V

87.6V

6

1.2

0.6

Features

1

Full automatic transition of CC, CV and Float/cut-off

2

Precise limit of voltage & current, guarantee fully charged and avoid over charge

3

Protections: over current, over voltage, short circuit and reverse polarity

4

High Efficiency: 95%~98%, PFC: 0.96, eco-friendly

5

Two LED indicators, Aluminium, elegant and reliable

6

CE & ROHS Certified, Safety and High Quality

Note: Cut-off point for Li battery is 5% of CC, and it can be set between 5%-10%.

All functions can be customized production(e.g.BMS communication,predict charge,Recharged regularly,Active power factor correction PFC)



 600W 12v/24v/36v/48v/ 60v 72v lead acid/li ion/ battery charger

Company Information



our   company specialized in the manufacture and export of electric system products ,  including,pure sine wave power inverter, motor controller,charger,DC-DC converter,electronic throttle,battery discharge indicator,hour tachometer ,air conditioning system,electric system solution .etc
