Help Center6.6kw on Board Battery Charger With12v/24V Auxiliary Output Power
Related Products
-
3kw On-board 96 20a Battery Charger With Auxiliary Output PowerNegotiableMOQ: 1 Piece -
3.3kw on Board Battery Charger With12v Auxiliary Output PowerNegotiableMOQ: 1 Piece
-
1500W Waterproof PFC Battery Charger for evNegotiableMOQ: 1 Piece
-
1200W Waterproof PFC Battery Charger 48v 18a,60v15a,72v10aNegotiableMOQ: 1 Piece
-
900W Lead Acid /li Ion Battery Charger for Mytest Boat 12v/24v/36v/48v/ 60v/72vNegotiableMOQ: 1 Piece
AHEVC Series on-board charger absorb the advanced control technology is located, it is a practical, full-featured, high-reliability products. Light weight, volume
Small, charging stability, high efficiency, seismic capability features. Short circuit, reverse polarity, overheating, overload protection. Reasonable charge curve and control technology to control the charging process to ensure that
Sufficient battery power and extend battery life.
1, for battery type: lithium iron phosphate batteries, lithium manganese batteries, three batteries, nickel-metal hydride batteries
2, operating temperature: -30 ℃ ~ 80 ℃
3, the protection function: over-voltage, over current, reverse polarity, short circuit, over temperature
4, power factor: 0.99, harmonic distortion rate: 3%
5, means of communication: CAN 2.0B
6, reference standards: QCT 895-2011 "Electric Vehicle Conductive car charger"
Design reference standard
QCT 895-2011 Electric Vehicle Conductive Car Charger
QC / T Electric Vehicle Conductive Charge Car Technical conditions
SAE J1378 SAE J1939
3., technical indicators:
1) the input voltage: 85 ~ 265Vac
2) input frequency: 50 ~ 60Hz
3)starting inrush current: <10A
4) the input power factor: 0.99
5)harmonic distortion (THD): ≤5%
6) full load efficiency: ≥0.93
7)means of communication: CAN 2.0B
8)the auxiliary power supply: 12Vdc / 150W
9)protection class: IP65
10)Altitude: ≤3000m
11) operating temperature: -30 ℃ ~ 75 ℃
12) over-temperature protection: when the temperature is higher than 45 ℃ , the fan starts, the fan stops it is lower than 45 ℃, when it is higher than 75 ℃ ,the protection is shutdown, it can be Automatically restored when the temperature is less than 75 ℃
13)short-circuit protection: output short circuit, output is 0, after the fault is removed,it can be automatically restored
14)reverse polarity protection: if The output terminal is reversed, the charger does not start,
the fault is removed,it can be automatically restored
15)overvoltage protection: according to the highest value of the CAN settings, over-current protection: according to the highest value of the CAN settings, voltage protection: 50V

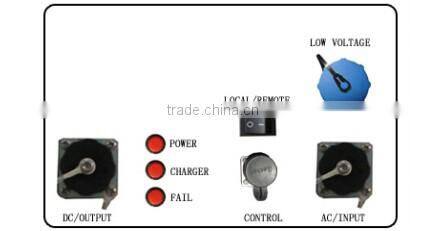

Panel schematic instructions
Function Name |
Description |
Functional specifications |
Charge |
charging indicator |
When the charger is properly charged, the lamp lights up, it shows the charger is charging |
Power |
Power indicator |
When the AC power is turned on correctly. The indicator Lights up, this indicates that the AC input is connected |
Error |
Fault indicator |
When an operation or use of the fault lights up, it shows a warning |
Remote/Local |
Remote control / Local control switch |
Remote control indicates CAN communication,Local controller indicates charging as per the internal procedure of the charger |
AC/Input |
|
AC input interface of the charger |
DC/Output |
|
charging output interface of the charger |
12V/Output |
Low-voltage auxiliary power supply |
Low voltage DC12V 150w or DC24V 150W |
CAN |
CAN communication |
The CAN bus communication interface |
our company specialized in the manufacture and export of electric system products , including,pure sine wave power inverter, motor controller,charger,DC-DC converter,electronic throttle,battery discharge indicator,hour tachometer ,air conditioning system,electric system solution .etc
