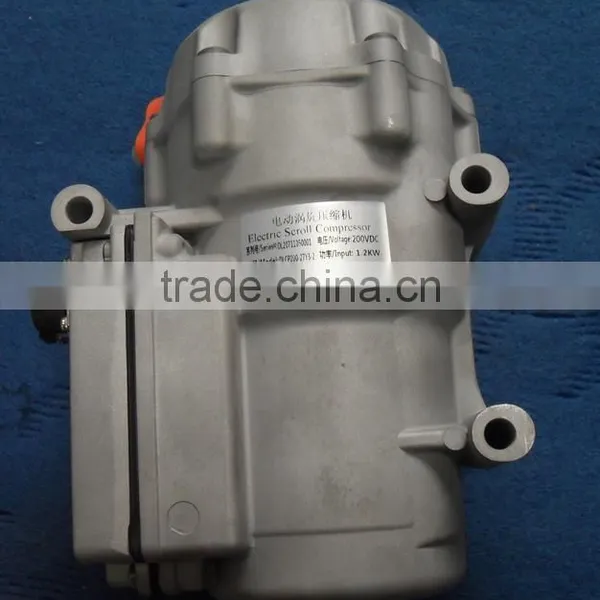

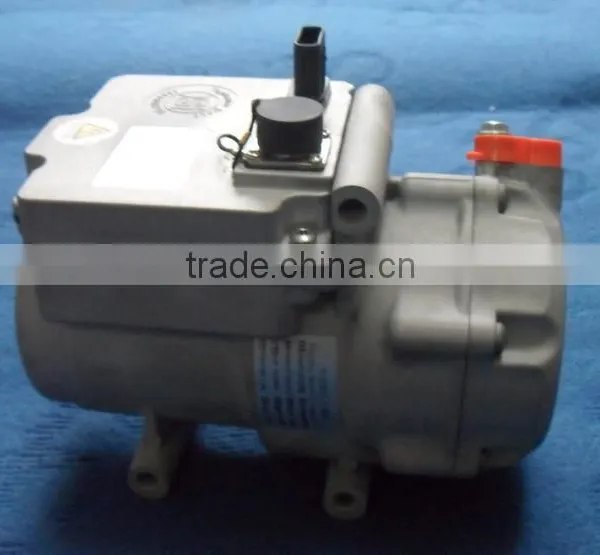

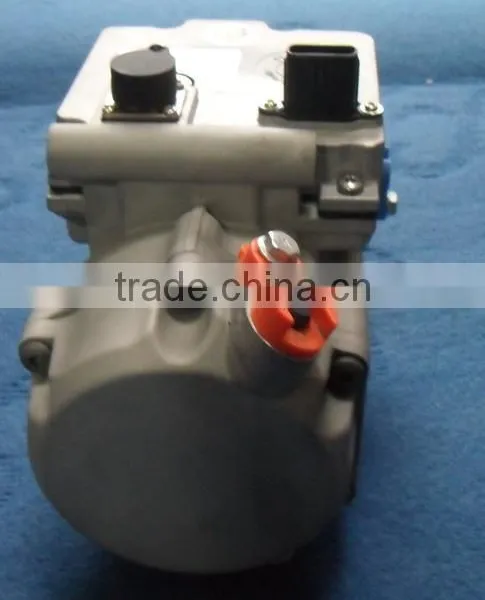

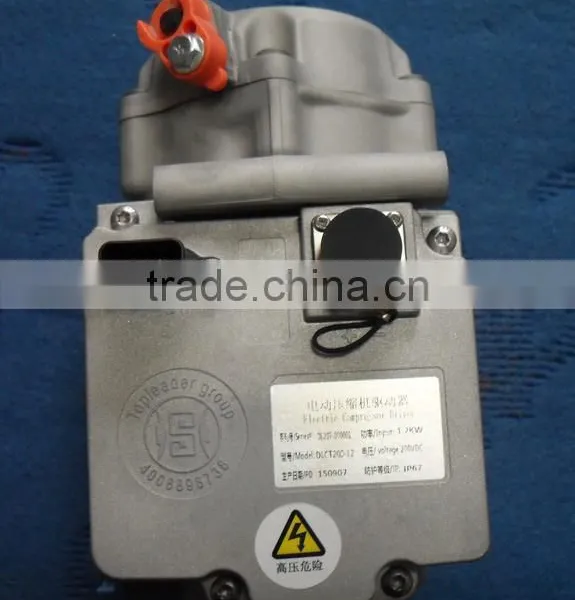

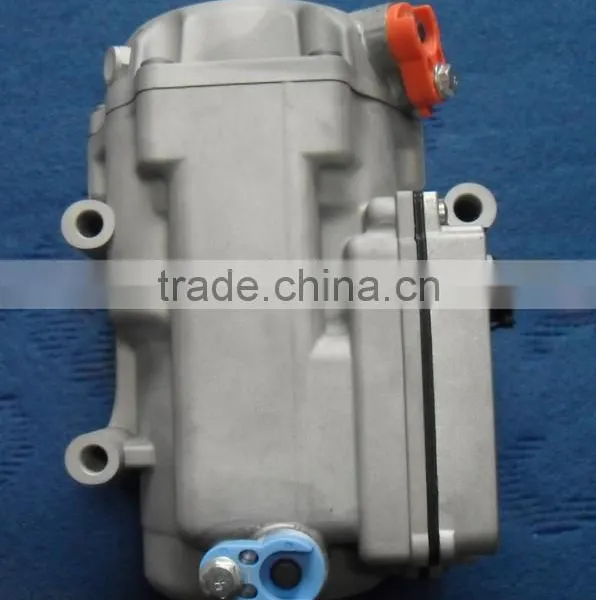

200V DC Electric Scroll Compressor of Air Conditioning

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Shandong, China

Brand Name:

Model Number:

DLCP200

Dezhou Greatway Import And Export Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shandong, China

Brand Name GW

Model Number DLCP200

Size 132*82*40

Type Compressor

Car Make electric car

air conditioning system(A/C) for electric car

a/c system included the following parts

1.Scroll Compressor

2. The condenser assembly

3.A/C controller

4. Air conditioning pipe(line)

5. evaporator

Compressor type			DLCP200-27Y3-2a
Compressor mode			Semi enclosed horizontal scroll compressor
Using refrigerant			R134a
Exhaust volume			27cm3/rev
Driver			Compact version
Motor cooling			Suction refrigerant cooling
Common speed range			3000rpm
Maximum permissible rotational speed
Evaporation temperature range			-10~15.6
Condensation temperature range			26.7~65.6
pressurization	Seal pressure		30bar
	Damage pressure		The suction side 5.2MPa The exhaust side 8.3MPa
Pressure relief valve	Pressure relief		4.0 0.4MPa
	Recovery pressure		3.25 MPa
The amount of leakage of refrigerant			<14g/a
Lubricating oil / oil			POE-68/120ml
Appearance			Aluminum alloy surface shot peening
Total mass (oil)			6.1kg(including lubricating oil)
Installation method			install on the bracket Through 3 holes
Installation dimensions			132 X 82
The suction pipe interface diameter			18.3mm
Exhaust pipe interface inner diameter			15.5mm
Protection level			IP67
Electric parameter performance		Motor type	Permanent magnet synchronous motor
		Voltage resistance	No abnormity when powered with 2000VAC for one minute
		Insulation property	500VAC, insulation resistance >50MΩ (20℃) With refrigerant and refrigeration oil time, 20MΩ
