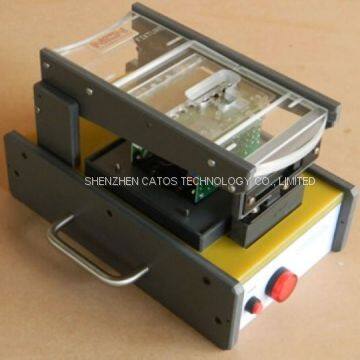

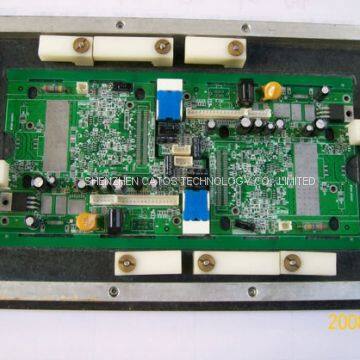

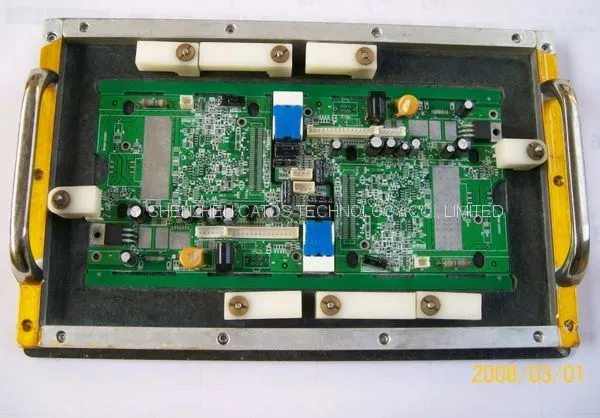

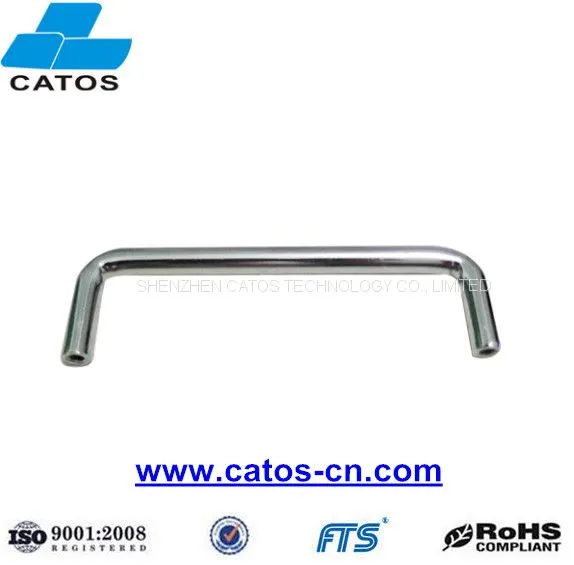

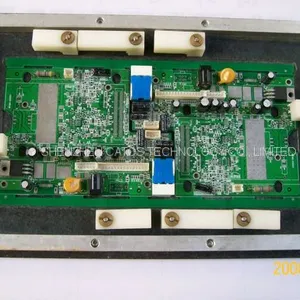

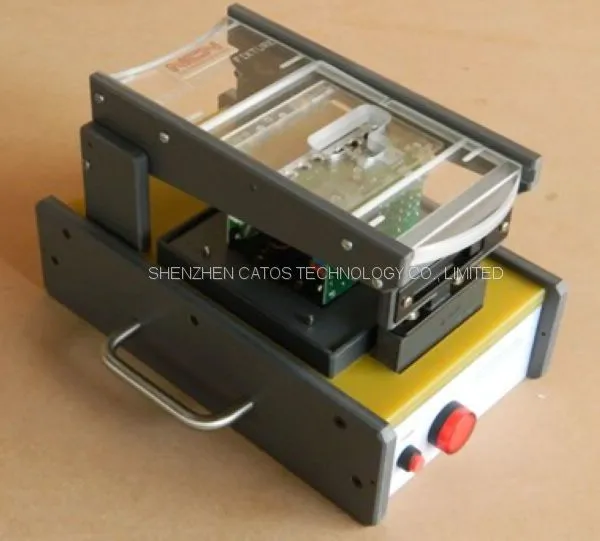

#26 SS handle for wave solder pallet and FCT fixture
Quick Details
Place of Origin: Guangdong, China (Mainland)
Model Number: CATOS-HD#26
Usage: Postion and Fixed
Material:easily cutting iron
Structure: wave Clamp
Standard or Nonstandard: Standard
Surface Treatment:electroplated nickel
Type: SS handle
Application: Wave solder pallet and ICT Fixture accessories
Weight of a set: 65g
Service: technical drawing is available
Sample: available for free
Specifications
2.Quality assurance
3.Easily operating
4.Fast Delivery
5.Size(mm):dia8 x 40 x 107
I.Features
1) .Designed specifically for use in wave solder and FCT fixture ang jigs operations
2) .Mostly made from easily cut iron
3).Surface Treatment: electroplated nickel.
4).It is fixed on FCT fixture and wave solder pallets by screws,easily operating.
II.Function and Application
MATERIAL : | easily cutting iron |
TEMPERATURE RATING : | (>200° C) |
DRAWING : | available. |
IV.Service:
1).Technical Drawing of #26 handle is available.
2).CATOS markets products for the PCB Assembly tooling industry such as fixings, hold downs and clamps for solder pallets / fixtures
