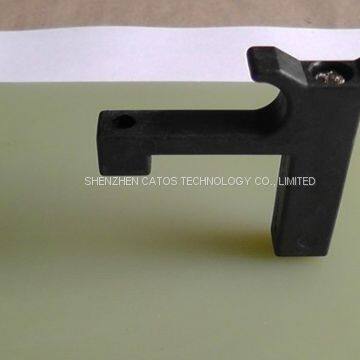

#19 Hold down clamps for solder pallet and SMT fixture in PCB Assembly to Lock PCB
Quick Details
Place of Origin: Guangdong, China (Mainland)
Model Number: CATOS-HD#19
Usage: Postion and Fixed
Material: Plastic
Structure: Spring Clamp
Standard or Nonstandard: Standard
Product Parts: A set of 3 parts

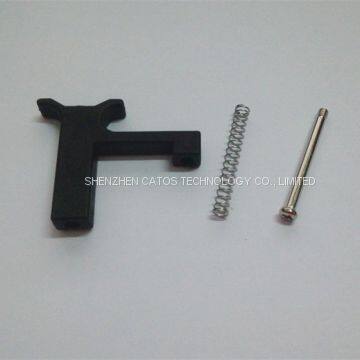

Included items of a set: a screw,a spring and a plastic part
Type: Single Side Hold downs
Application: Wave solder pallet accessories
Weight of a set:12g
Service: technical drawing is available
Sample: available for free
Certificate: FTS report
Specificationssold pallet hold down
1.Free samples
2.Hight temperature resistent.
3.Position PCB substrate to avoid from floating
I.Features
1)Designed specifically for use in wave solder operations
2)Mostly made from molded plastic part, spring, screws and sleeve.
3)Working temperature: 200degree, max 280degree (10~20s).
4)The action is to press PCB board to protect it from floating and lifting under wave solder process so as to create excellent solder tin.
II.Function and Application
Used to be positioned PCB substrate in wave solder pallets, fixtures and stencils to protect PCB substrate from floating and lifting.
MATERIAL : | High temperature polymer |
TEMPERATURE RATING : | (>200° C) |
HARDWARE : | Fixing pre-assembled with, |
IV.Service:
1).Technical Drawing of #19holddowns is available.
2).CATOS markets products for the PCB Assembly tooling industry such as fixings, hold downs and clamps for solder pallets / fixtures.
V.Package Process:
1).500pcs as a bag, with packed PE bag
2).Then put into 400mm x 300mm x 300mm paper carton
3).Finally,used PE protective film packed.
Warm Notes:clients'suggestion is welcomed.
Samples and Product technical drawing is available to you for free,your inquiry is welcome! Any questions please contact me,i will do my best to serve you.
