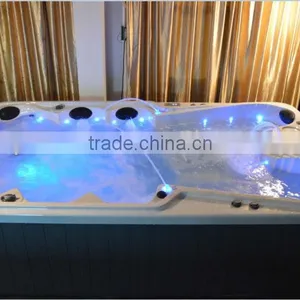

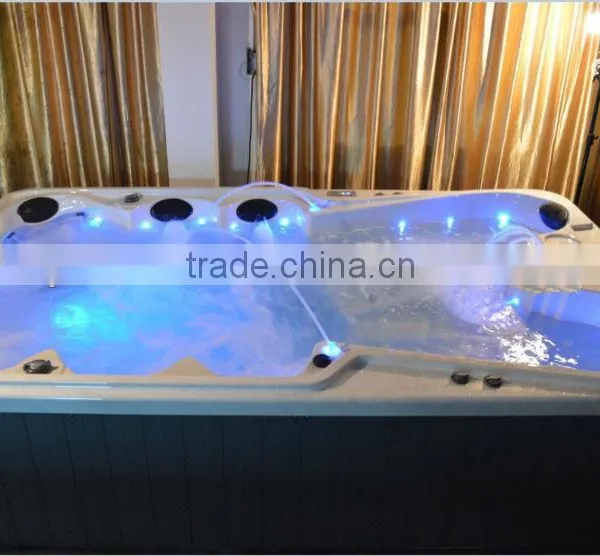

Luxury Square Bathtub Massagers/Whirlpools With 9-10 Seats

STANDARD SYSTEM

SPECIFICATIONS:

Model No.: A870

 (FOB Shenzhen):

Loading Quantity:  4 sets / 40'HQ

2 sets / 20'HQ

Dimensions (L x W x H):

380x 225x 91cm

Seating Capacity:

9adults

Lounge Seat (s):

2

Water Capacity:

1700liters

Dry Weight:

590kg

Filled Weight:

2290kg

Spa Shell Material:

Lucite® Acrylic(Standard Shell Colors: Alba, Sterling silver & Navy)

Spa Cabinet Material:

PS Wood-Plastic Composite Panels

Cabinet Frame:

Pressure-Treated Wood

Bottom (Pedestal Base):

PVC Plastic sheet

Jet Ring Trim:

Dark Grey Plastic

Total Jets (pcs):

95

5" Rotational Jets (pcs)

2

5" Directional Jets (pcs)

4

3" Rotational Jets (pcs):

20

3" Directional Jets (pcs)

7

2" Rotational Jets (pcs):

22

2" Directional Jets (pcs):

39

1" Directional Jets (pcs):

0

Ozone Jets (pcs):

1

1" Air Jets:(Option)

16

Pump1(CE,TUV Approved):

One-speed / 3.0HP

Pump2(CE,TUV Approved):

One-speed / 3.0HP

Pump3(CE,TUV Approved):

One-speed / 3.0HP

Circulation Pump (CE, TUV Approved):

0.5HP

Heater(CE, UL Approved):

1 x 3.0kW

Lighting(ETL Approved):

1 x 12V, Multi-colored LED Underwater Light

Ozone Water Purification System:

Yes

Electrical Requirements:

220-240V/50Hz,30.5A Max.

Suctions(UL Approved):

3x 200GPM,4x 94GPM

Filter Size:

100sq.ft.

Diverter Valve(pc):

2

Air Control Valves (pcs):

5

EVA Spa Pillows(pcs):

8

Bottom Drain(pc):

1

Drain Valve(pc):

1

Using spray insulating PU foam (USA) on the under-side of the spa shell

Yes

SpaRelax  Control system

Yes
