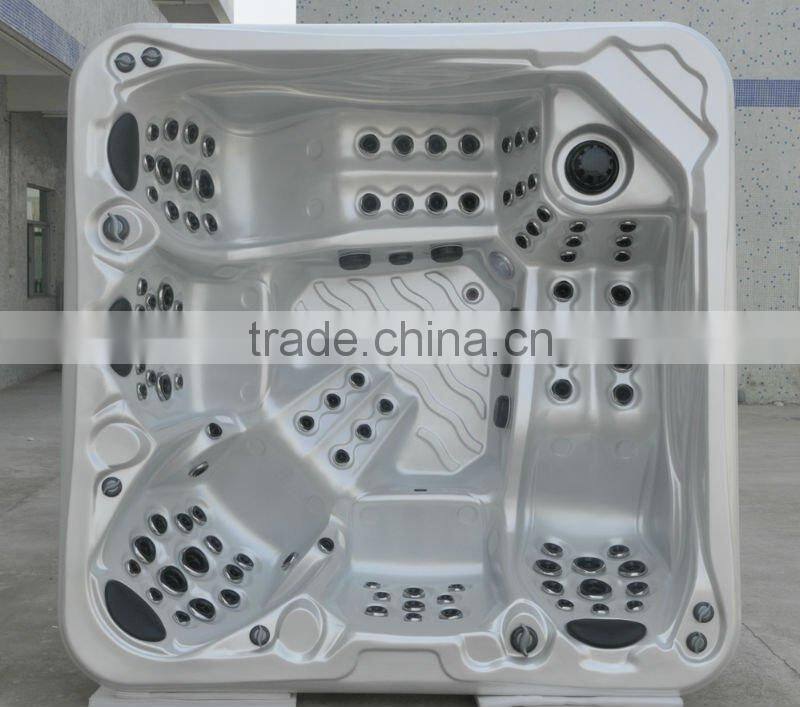

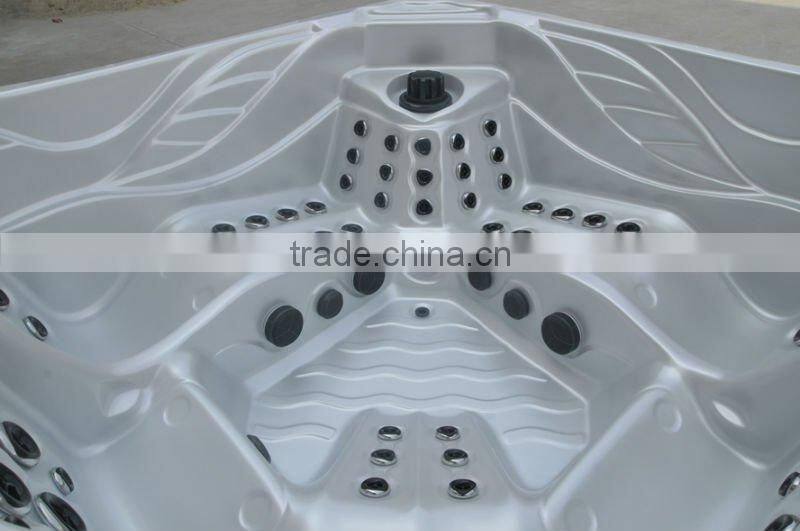

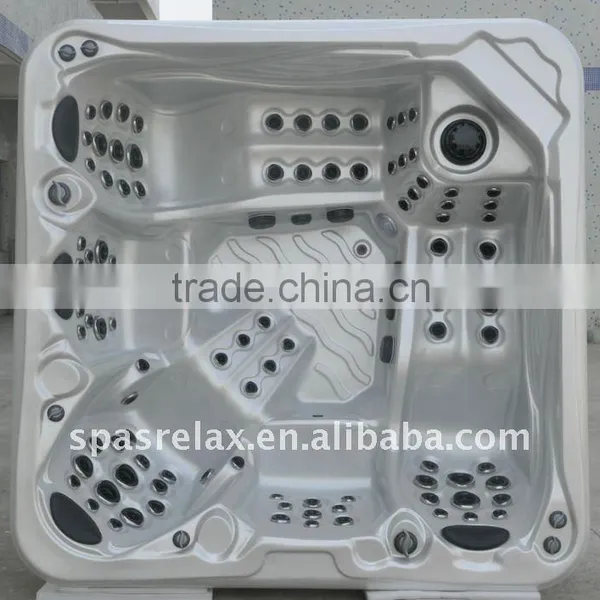

Family 5 Person Spa Pool Spa With 3 Lounges

Model No.: S800

Loading Quantity:

4 sets / 20'GP

12 sets / 40'HQ

Dimensions (L x W x H):

230x230x 92 cm

Seating Capacity:

6 adults

Lounge Seat (s):

3

Water Capacity:

1,491 liters

Dry Weight:

445 kg

Filled Weight:

1,936 kg

Spa Shell Material(USA):

Lucite® Acrylic (Standard Shell Colors: Alba, Sterling silver & Navy)

)

Colors: Alba, Sterling silver & Navy)Colors: Alba, Sterling silver & Navy)

Spa Cabinet Material:

PS Wood-Plastic Composite Panels

Cabinet Frame:

Stainless steel

Bottom (Pedestal Base):

PVC Plastic sheet

Jet Ring Trim(USA):

Dark Grey Plastic (Rising Dragon Alpha series )

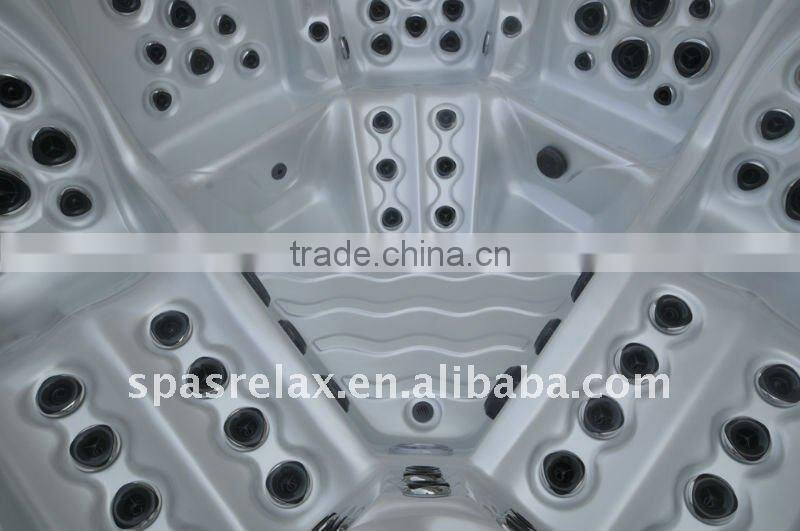

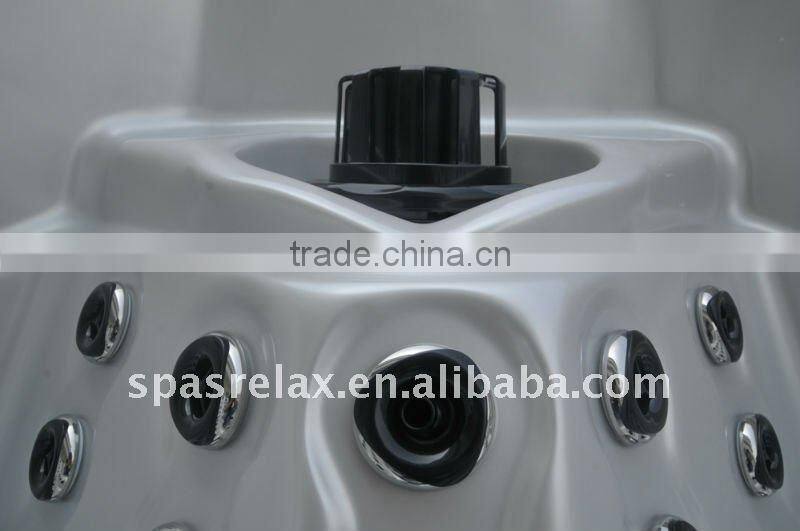

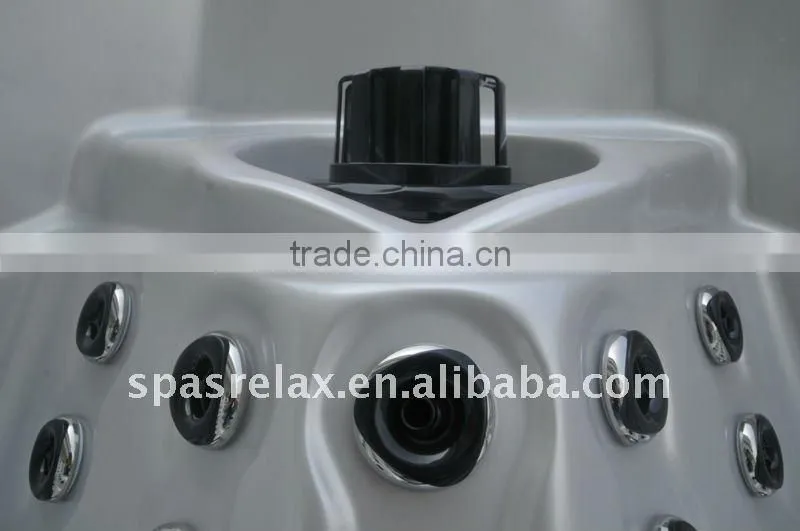

Total Jets (pcs):

101

5" Rotational  Jets (pcs)

4

5" Directional  Jets (pcs)

3

4" Rotational Jets (pcs):

6

4" Directional Jets (pcs):

2

3" Rotational Jets (pcs):

35

3" Directional Jets (pcs):

4

2" Rotational Jets (pcs):

14

2" Directional Jets (pcs):

32

Ozone Jets

1

Air jets(pcs) (Optional):

10

Pump 1(CE, TUV Approved):

One-speed / 3.0HP

Pump 2(CE, TUV Approved):

One-speed / 3.0HP

Pump 3(CE, TUV Approved):

One-speed / 2.0HP

Circulation Pump (CE, TUV Approved):

1 x 0.5HP

Heater(CE, UL Approved):

1 x 3.0kW

Lighting(ETL Approved):

Multi-coloured LED Underwater Light

Ozone Water Purification System:

Yes

Electrical Requirements:

220-240V/50Hz, 26A Max

Suctions(UL Approved):

3 x 200GPM, 4 x 94GPM

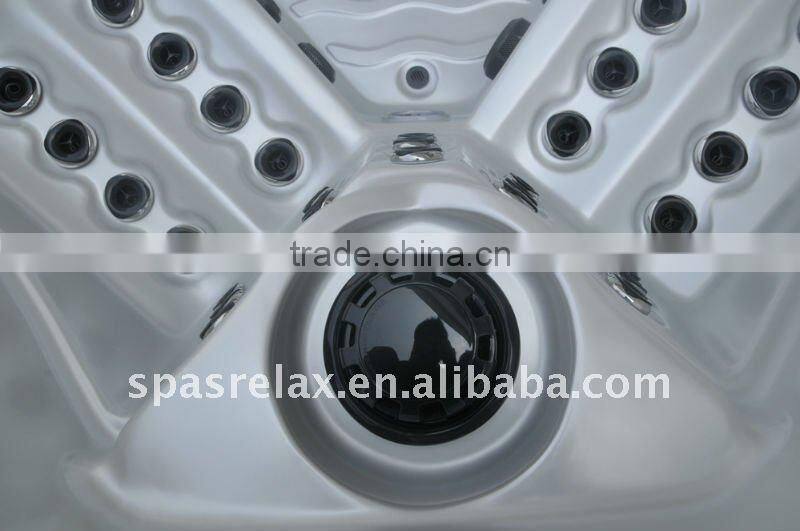

Filter Size:

50 sq.ft

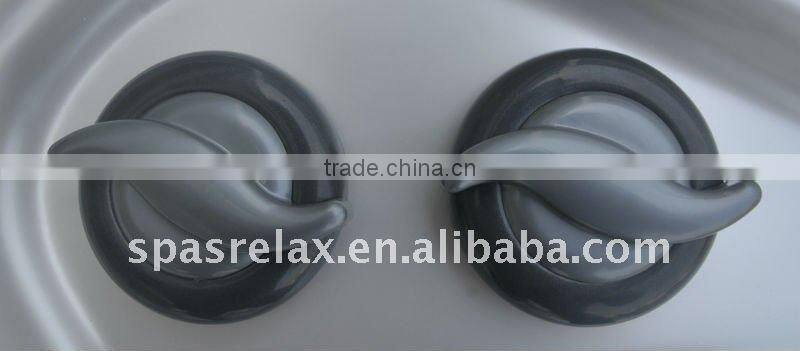

Diverter Valve(pc):

2

Air Control Valves (pcs):

6

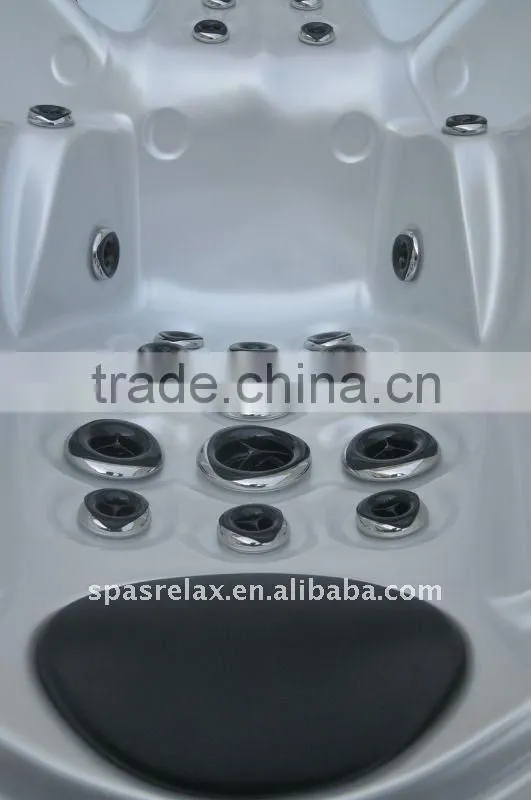

EVA Spa Pillows(pcs):

4

Bottom Drain(pc):

1

Drain Valve(pc):

1

SpaRelax Control system

Yes

Using spray insulating PU foam (USA) on the under-side of the spa shell:

Yes
