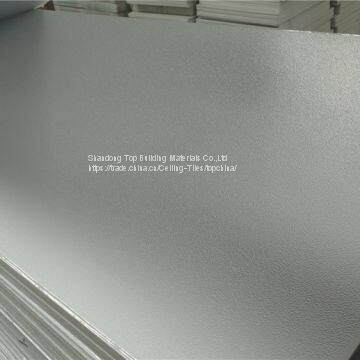

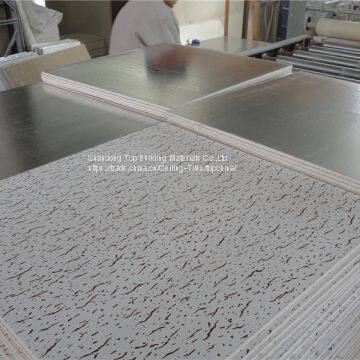

PVC Laminated Gypsum/Paper Faced (Plaster Wall) /Ceiling Gypsum Board

Thickness

7.0,7.5,8.0,8.5,9.0,9.5,12,12.5（mm）

Specification

Tolerance

Length:±1.0MM, Width:±1.0MM, Thickness:±0.5MM

Packing

6/8/10 pieces per carton with shrink wrap bag and importer trade mark printed on the carton strip.

Technical Data

1..Weight/sqm:7.0MM:5.5KGS,7.5MM:5.7KGS,8.0MM:5.9KGS.

8.5MM:6.2KGS,9.0MM:6.8KGS,9.5MM:7.1KGS,12MM:9.2KGS,

12.5MM: 9.5KGS.

2.Fire resistant property: No-flammable B1 in accordance with Chinese standard GB8624-1997

3. Length ways & Lateral Ruptures Load:7.0MM>110N , 8.0MM>120N, 9.0MM>140N.

Installation

Math with Top quality T-32/38 grids with 0.30-0.45MM thickness.

Properties: The top quality pvc laminated gypsum ceiling tile with best aluminum foil backing is of thermal insulation, fire resistant, moisture resistant, no deviation, elegant, economic, environmental and easy installation as the suspend ceiling tile and dry wall partition.

Environmental effective resisting dusts conform to the standard of GB6566-2001<>.

Moisture resistant, slight deviation ,easy to clean, moisture rate ≤2%,conform to the national standard

C/T997-2006 Decorative gypsum board with paper-facing

C. Fire resistant A grade, conform to the Item 204 of BG50222-95 of Building material inter decoration design fireproof criterion

D. Noise reduction Coefficient :0.1-0.3

E. Thermal conductivity:0.16W/MK.

F. Light reflectance:0.75.
