Insulating glass is manufactured through sealing two or more float glasses with high-strength air-tightness composite viscose. There are aluminum alloy partitions filled with drying agents between the sheet glasses, which makes the air inside the glasses very dry, butyl rubber seal is used as the first line, the second seal use glass or plastic polysulfide adhesive on the basis of the used framework of the glasses. The space between the glass and glass is isolated from the outside world by sealant, there is a special gas or air, insulating glass has good performance of heat insulation and noise insulation.
Glass Type : low-e insulated glass
Glass Structure : 5mm+9A+5mm,6mm+12A+6mm,8mm+12A+8mm,etc.
Transmittance: 30%-90%
Reflectance: 7%-20%
U-Value: 1.50-6.00W/m2.K
Color: blue,grey,green,clear,ocean blue,gold,yellow,etc.
Certificate: ISO9001-2008 Certificate,CE,CCC
Band: YUANDA GLASS
Warranty: 20 years
Low E insulated glass performance characteristics:
l. Thermal insulation: with low heat gain and heat loss value (low U value)
2. Light transmission: appropriate level of solar transmission and solar reflectance can be selected to meet the design and functional requirement.
3. Noise insulation: IGU can reduce noise level by 30 dB. With inert gas in-filled, a 5 dB further reduction can be achieved.
4. Condensing prevention: The IG units are designed to withstand down to -65C without condensing, far exceeding the National Requirement of -40C
5. Leak-proof: to ensure the IGU air tight, automatic bending machine is used for all four corners bending, with use of linear connector for the spacer. A dual seal system is adopted with PIB as primary seal, and silicone or polysulfide as secondary seal. We use advanced fully automatic IG production line from Lisec of Austria, with automatic production operations covering spacer bending, filling of desiccant, edge deletion of coated glass, glass assembly, filling with inert gas and application of primary and secondary sealants.
Application:

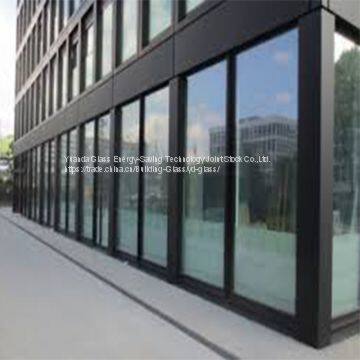

It is widely use in building outer wall glass, high building windows and doors glass, lighting ceiling, furniture, glass table, shower room,indoors partition glass, automotive windshield, and so on.
Specification:
Color：grey, blue, clear, green, solar yellow, light bule, ocean blue, blue gray, bronze and so on.
Air or argon spacer gap: 6mm, 9mm, 12mm, 15mm, 16mm.
Glass thickness: 5+9A+5mm; 6+12A+6mm; 6+16A+6mm; 8+12A+8mm; 8+16A+8mm; etc.
Max size: 2440mm×3660 mm
Min size: 300 mm×300mm
