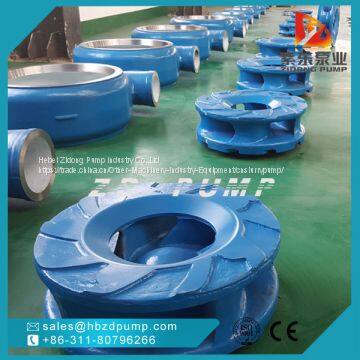

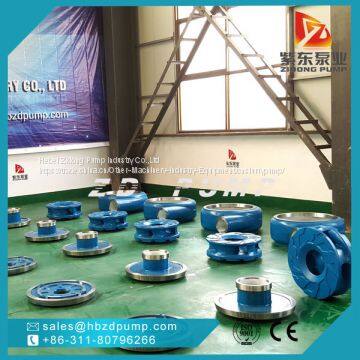

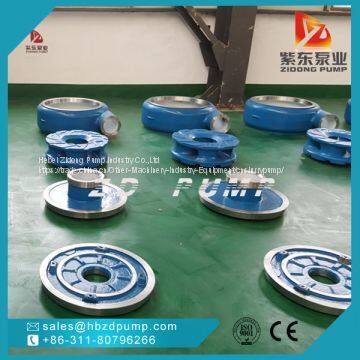

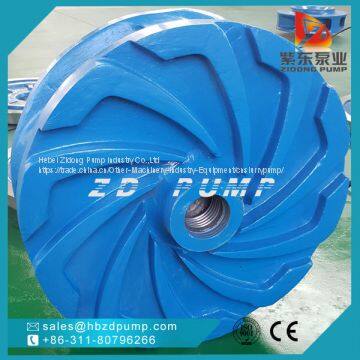

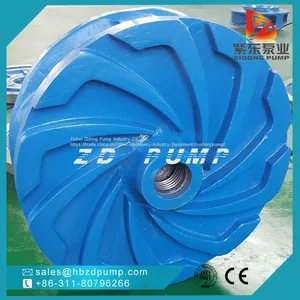

Slurry Pump Interchangeable Pump Parts ,rubber or High Chrome Metal Slurry Pump Impeller

ZH Horizontal centrifugal slurry pump technical parameter

 a) Caliber: DN25-DN400mm
 b) Flow:12-50400m3/hr
 c) Head:5-90 m
 d) Rotate speed:300-3800r/min
 e) Motor power:2.2-55 KW
 f)  Working temperature: ≤80°C

2,Main advantages of ZH  type centrifugal slurry pump

 a) Adopts horizontal, vertical axis medium open type double pump shell structure, lining for cemented carbide or

  rubber has good wear-resisting, corrosion resistance and high reliability
 b) this kind mining slurry pumps have High efficiency hard alloy , and low NPSH
 c) To meet the different operation conditions , adopted the brief type structure bearing parts , selected high bearing

 capacity design , alloy bearing grease lubrication oil .
 d) Through adjusting the clearance between protection board and impeller , ensuring the pump efficient operation
 e) Using packing seal, impeller sealing , container type mechanical seal to adapt to different operating mode

       requirement
 f) mining surry Pump and drive can choose straight league transmission, triangle, hydraulic transmission device

  coupled  transmission, reducer drive
 g) The outflow direction can be installed by eight Angle rotation to adapt to different site installation conditions
 h) Available to use multipole series ,to satisfy the long-distance transmission requirements

3,Main usage of centrifugal slurry pump

  ZH centrifugal slurry pump is used for delivering slurry with strong abrasion and high concentration for metallurgy,

  mines, coal and power plant, etc.

 HEBEI ZIDONG PUMP INDUSTRY CO.LTD. mainly produce the AH type centrifugal slurry pump , our

 slurry pumps have good market in the world, including our slurry pump main wear parts , wel come to our slurry

 pump manufacturer .
