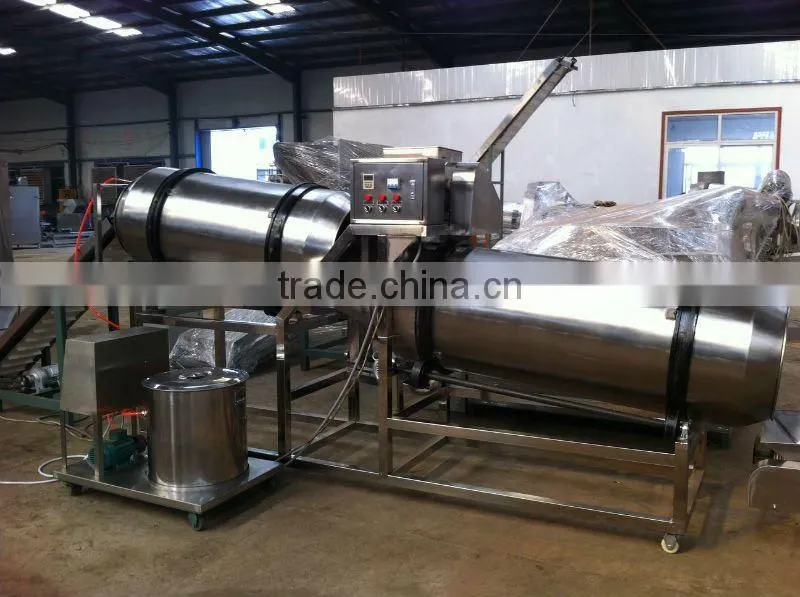

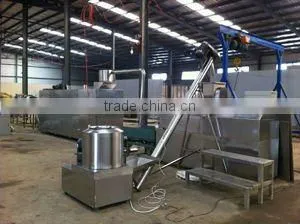

Help CenterDried and Extruded Animal Food/pet Food/ Dog Food Production Line-Jinan Chenyang Company
Related Products
-
Pet Food/ Animal Food/dog Food Machinery With Extrusion TechnologyUS$ 10,000 - 20,000MOQ: 1 Set -
Pet Food Machine-making Various Kinds of Pet FoodNegotiableMOQ: 1 Set
-
Dryer Dog Food Pellet MachineUS$ 25,000 - 36,000MOQ: 1 Set
-
Dry or Wet Dog Food Pellet MachineUS$ 25,000 - 36,000MOQ: 1 Set
-
500kgs Extruded Dog Food Processing Line-0086+15553172778US$ 10,000 - 20,000MOQ: 1 Set
the dog food production line:
1. mixer
2.double-screw Extruder
3. air conveyer
4. five_layer roasting oven
5.Automatic flavoring machine
The dog food processing line
Extruding and inflating technology is that it can supply us un-image processing measure, combine with market demand, pet food machinery produced by Chenyang Company, adopts particular process technics and equipment scheme. The final products with fashion shape, specail taste, scientific nutrition combinative, easily to absorb and is quite popular to the pet market.
The model is :CY70-VI Pet food processing line.
The capacity of the line is:200-250kg/h
The procedure is mixing→extruding→drying→ flavoring
The quotation list and detailed information
NO |
Machine
|
Motor Power
|
Capacity
|
dimension
|
Quantity
|
Function
|
1 |
Milling machine |
7.5kw |
200-300kg/h |
3.0*1.2*3.5m |
1set |
To mill corn into powder |
2 |
Silo |
|
5 Ton/once |
1.8*5.3m |
|
To save the corn powder |
3 |
mixer |
4KW |
50kgs /once time |
0.8*0.7*1.5m |
1set |
To mix the raw materals with the water |
4 |
screw conveyer
|
1.1KW |
150kg/h |
3*0.8*2m |
1set |
To send the materials to the extruder |
5 |
CY70-II Double screw extruder |
30KW
|
200-220kg/h |
2.8*1.0*1.8m |
1set |
To extrude and inflate the food.the main machine of the line |
6 |
Shifter
|
0.55kw |
150kg/h |
1.6*1.0*1.2m |
2set |
To select good pet food, one shifter put after extruder, another shifter put after dryer. |
7 |
Large hoister
|
0.37KW |
150kg/h |
4.1m height |
1set |
To send the food into the dryer |
8 |
5layer 5meter dryer |
45kw |
180-300kg/h |
5.0*1.2*3.5M |
1set
|
To dry the food
|
8 |
Double roller flavoring system |
1.5kw |
150-200kg/h |
2.1*1.1*1.9m |
1set |
To flavor the snack food with flavoring materials |
Technical Parameter:
Model: |
CY65-VI double-screw inflating line |
CY85-II double-screw inflating line |
Installed capacity: |
70 kw |
140 kw |
Power consumption: |
45 kw |
110 kw |
Ouput: |
120-150KG/H |
300-400KG/H |
Size: |
12×1.2×1.8 M |
13×1.2×1.8 M |
