Fully Automatic Floating Fish Food Machine

Jinan Chenyang Technology Co., Ltd.
Fully Automatic Floating Fish Food Machine thumbnail-1
Fully Automatic Floating Fish Food Machine thumbnail-2
Fully Automatic Floating Fish Food Machine thumbnail-3
Fully Automatic Floating Fish Food Machine thumbnail-4
Fully Automatic Floating Fish Food Machine thumbnail-5
Fully Automatic Floating Fish Food Machine thumbnail-6
Fully Automatic Floating Fish Food Machine photo-1
Fully Automatic Floating Fish Food Machine photo-2
Fully Automatic Floating Fish Food Machine photo-3
Fully Automatic Floating Fish Food Machine photo-4
Fully Automatic Floating Fish Food Machine photo-5
Fully Automatic Floating Fish Food Machine photo-6
US$ 12,000 - 36,700 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
ChenYang
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Shandong, China
Brand Name ChenYang
Model Number CY65-III,CY85-II
Application Dog
Voltage 380V/50HZ or according to your local
Power(W) 70kw
Weight 120-1000kg/h
Dimension(L*W*H) 12*1.2*1.8m
Certification CE,ISO
Warranty all life
After-sales Service Provided Engineers available to service machinery overseas

Autoamtic floating pet(dog,cat,fish)food machine/production line with CE certificaters

Fully Automatic floating fish food machine





Extruding and inflating technology is that it can supply us un-image processing measure, combine with market demand, pet food machinery produced by Chenyang Company, adopts particular process technics and equipment scheme. The final products with fashion shape, specail taste, scientific nutrition combinative, easily to absorb and is quite popular to the pet market.

Materials: adopts corn flour, bone meal, fish meal as raw materials

Capacity: 120-150kg/h     160-200kg/h    300-500kg/h

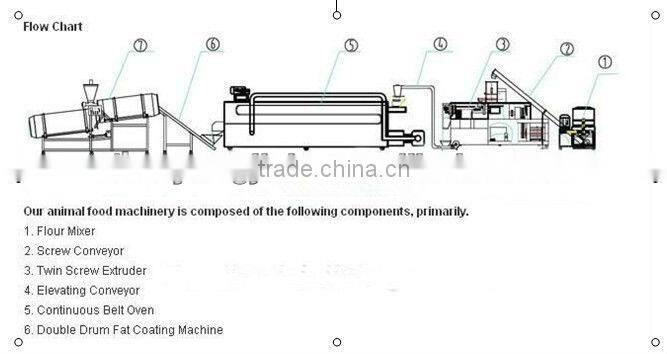

Process and follow chart
Mixer---Screw conveyor---Double screw extruder--- Air conveyor--- Drying oven------Hoister---Flavouring---Cooling

Fully Automatic floating fish food machine





Voltage: Three phases: 380V/50Hz, Single phase: 220V/50Hz, we can make it according to customers' Local voltage according to different countries



Technical Parameter:







Model

CY65-II Pet food processing Line

CY70 Pet Food Processing Line

CY85 Pet Food Processing Line

Installed Capacity

70 kw

120 kw

145 kw

Power

22kw

30 kw

90 kw

Capacity

120-150kg/h

160-200 kg/h

300-500kg/h

Dimension

12000x1200x2300mm

33000x1500x2400mm

35000x1500x2500m







The Various Parts Of Details Technical Parameter:



Model

Installed powder

Power consumption

Output

Dimension

Mixer

4kw

3kw

40kg/time

1200*650*1100mm



Screw conveyor



1.1kw



0.8kw



100-200

kg/h



3000*800*2800mm



Double screw extruder





45kw





30kw





120-150

kg/h





2500*1050*1800mm





Air Conveyor





0.75kw





0.5kw





120-150

kg/h





1000*200*1800

mm



Drying oven



65kw(elec.)



40kw



120-200

Kg/h



5000*1400*2000

mm

7.5kw(gas/oil)

12L/h



Flavouring



4.5kw

3kw

120-150

kg/h



3500*600*1600mm

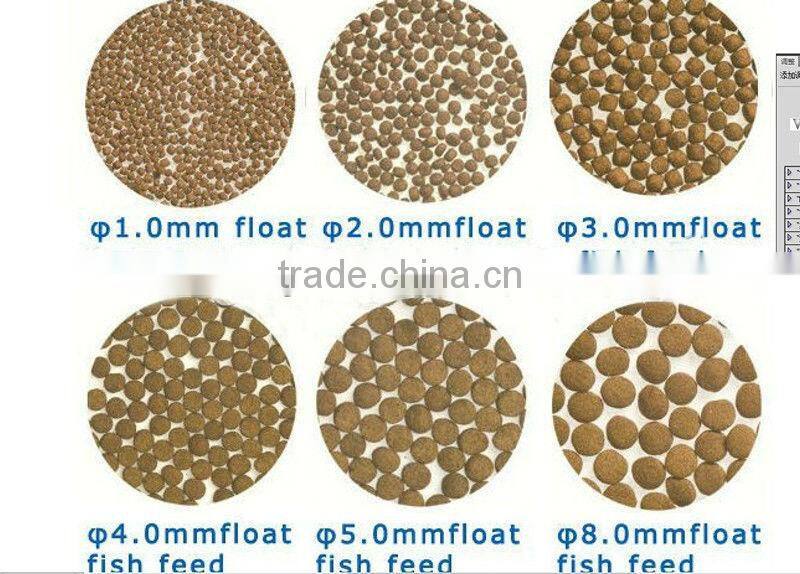

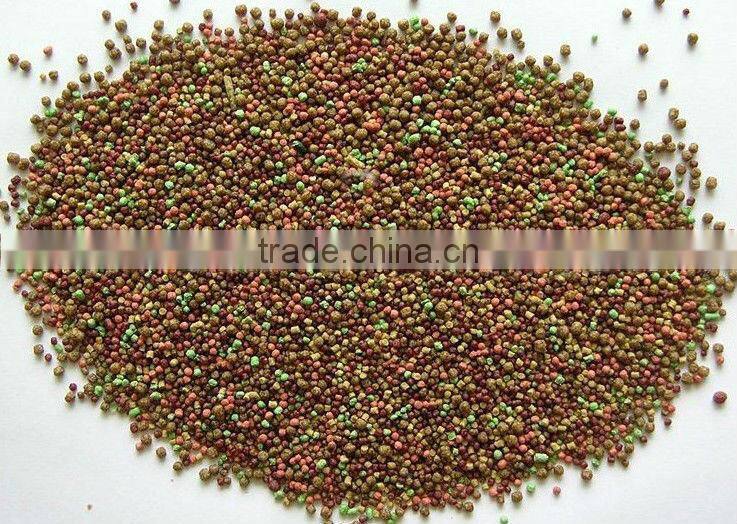

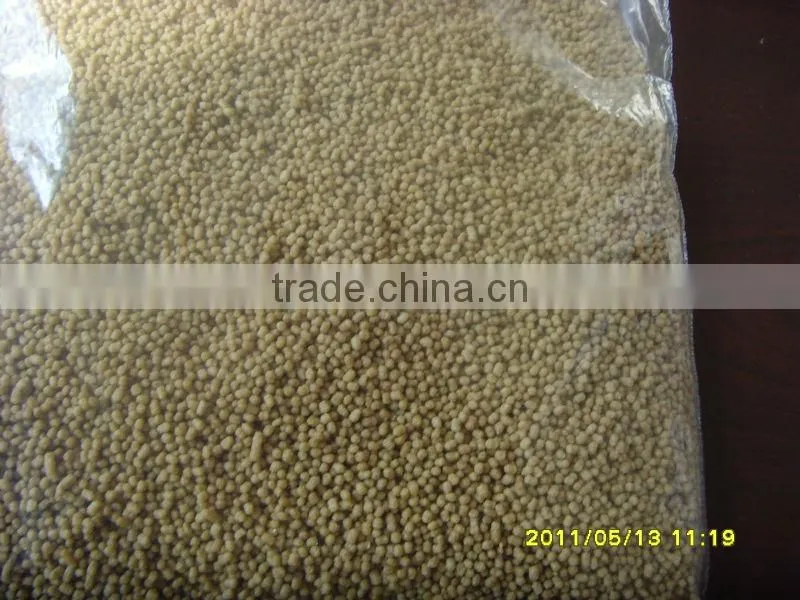

Sample pictures:

Fully Automatic floating fish food machineFully Automatic floating fish food machine



Fully Automatic floating fish food machine



Installation and after-sale service system:



1. Installation and commissioning



2. Project planning and design services



3. Training of equipment maintenance and operating personally



4. New production techniques and formulas



5.1 year complete warrantee
