Dog Food Machine/fish Food Machine& Chewing Dog Food Machine /pet Food Processing Line

Dog Food Machine/fish Food Machine& Chewing Dog Food Machine /pet Food Processing Line photo-1
US$ 4,000 - 25,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
CY
Payment & Shipping
Payment Methods:
Port of Shipment:
Qing dao
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Shandong, China
Brand Name CY
Model Number CY65 CY70 CY85 CY90
Application Other, dog ,fish, cat and bird
Voltage according to customers, according to your request
Power(W) according to customers
Weight 5000kg
Dimension(L*W*H) 20*1.5*2m
Certification CE ISO
Warranty all life
After-sales Service Provided Engineers available to service machinery overseas

Dog Food Machine/fish food machine& chewing Dog Food Machine /pet food processing line  Dog Food Machine/fish food machine& Chewing Dog Food Machine /pet food processing line

Dog Food Machine/fish food machine& Chewing Dog Food Machine /pet food processing line









Product Description





Introduce:
we have two processing machinery line for making dog food. One is for making  chewing-gum for dog,it adopts

single screw extruder. this line can produce like strip,stick,screw shape and double color food with filling

material .it can adjust the recipe to full the demand of pet both of nutrition and chewing hobby.



The other one is for making dog food, not as chewing hobby. this processing machine not only can

make dog food, cat food ,but also can make fish food and bird food,it adopts twin screw extruder.



(1.)Chewing gum dog food making machine



Materials: adopts corn flour, bone meal, fish meal as raw materials

Process and follow chart
Mixer---Screw conveyor--- Single screw extruder---Cooling machine---Cutting machine--- Hoister---Drying oven



Voltage: Three phases: 380V/50Hz, Single phase: 220V/50Hz, we can make it according to customers'

Local voltage according to different countries

Dog Food Machine/fish food machine& Chewing Dog Food Machine /pet food processing line

(2) Dog (fish) food machine

 This line is a multi-function processing line, it not only make the dog food ,but also can make cat food ,

bird food and floating fish food , by changing the moulds.





 Process and follow chart
Mixer---Screw conveyor---Double screw extruder--- Air conveyor--- Drying oven------Hoister---Flavoring machine ---Cooling machine

Voltage: Three phases: 380V/50Hz, Single phase: 220V/50Hz, we can make it according to customers'

Local voltage according to different countries

Technical Parameter:

Model

CY65-II Pet food processing Line

CY70 Pet Food Processing Line

CY85 Pet Food Processing Line

Installed Capacity

70 kw

120 kw

145 kw

Power

22kw

30 kw

90 kw

Capacity

120-150kg/h

160-200 kg/h

300-500kg/h

Dimension

12000x1200x2300mm

33000x1500x2400mm

35000x1500x2500m



 Dog Food Machine/fish food machine& Chewing Dog Food Machine /pet food processing lineDog Food Machine/fish food machine& Chewing Dog Food Machine /pet food processing line

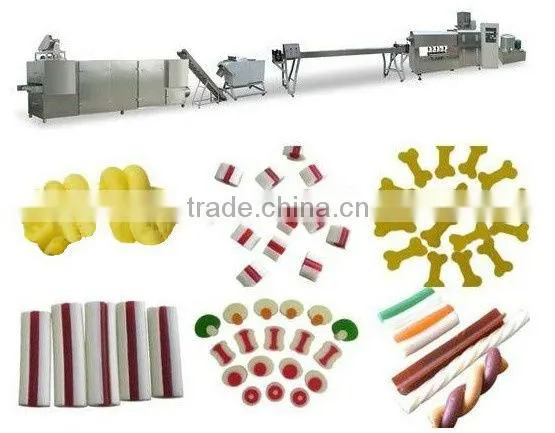

 The plant picture:

Dog Food Machine/fish food machine& Chewing Dog Food Machine /pet food processing lineDog Food Machine/fish food machine& Chewing Dog Food Machine /pet food processing line

Dog Food Machine/fish food machine& Chewing Dog Food Machine /pet food processing lineDog Food Machine/fish food machine& Chewing Dog Food Machine /pet food processing line


Our Services



After-selling service:

1. we will provide you the basic product recipe

2.we will install the processing line for you and teach your workers to operate the line

3.we will provide the technology support and the parts for yor at the best price

If you are interesting in our product, you can contact me , we will give you more useful advice
