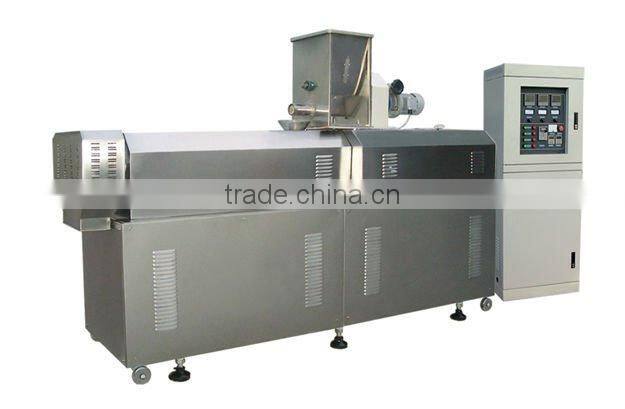

Floating Fish Food ball Making Machine extruder
Main features
- Extruding and inflating technology is that it can supply us un-image processing measure ,combine with market demand.
- Pet food machinery produced by chenyang company,adopts particular process technics and equipment scheme,the final products with fashion shape,spechial taste,scientific nutrition combinative,easily to absorb and is quit and is much popular on the pet market.
Advantage
1. It is more accurately and faster.
2.It is very convenient for cleaning without disassembling.
3.According to different screw design rate are satisfied with different technology request.
Pet Food Production Line
Process flow
Mixer→Screw conveyor → CY65 Double screw extruder → Viberate cooler → Air conveyor → Three-layer electrical roasting oven → Automatic flavoring line
include
1.Mixer
2.Screw conveyer
3.Double-screw extruder
4.Viberate cooler
5.Air conveyer
6.Three-layer electrical roasting oven
7.Automatic flavoring line
Details
NO. | EQUIPMENT | QUANTITY | TECHNICAL PARAMETER | IMAGE | FUNCTION |
1 | Mixer | 1 | Power:4kw Output:50kg/tube Size:0.8*0.7*1.2m | | To mix the raw materials with the water
|
2 | Screw conveyor | 1 | Power:1.1kw Output:100-500kg/h Size: 0.2*0.8*3.0m | | To send the materials to the extruder, |
3 | Double-screw extruder CY65-II | 1 | Power:35kw Length-diameter ratio: 1050*65 Output:120-150kg/h Size: 2.5*1.0*1.8m | | To extrude and inflate the food. the main machine of the line |

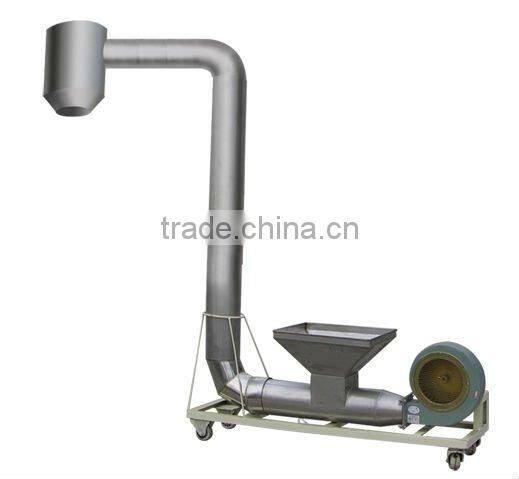

4 | Air conveyer | 1 | Power:0.75kw Output:100-500kg/h Size: 2.5*0.6*2.0m | | To send the food to the next machine |
5 | Roasting oven (3layer/5m electrical) | 1 | Power:27.5kw Output:100-150kg/h Size: 5*1.3*2.0m | | To dry the food
|

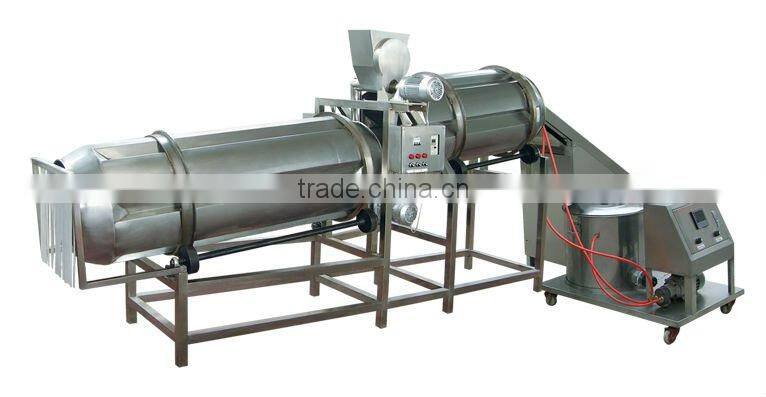

6 | Automatic flavoring line | 1 | Power 0.37kw Size 2.1*0.7*1.6m Output 150-200kg/h | | To flavor the production
|
technical parameter
| Model | CY65-II | |
| Installed capacity | 70KW | |
| Power consumption | 45KW | |
| Output | 120-150kg/h | |
| Size | 12000*1200*1800mm |
