Help CenterItaly and Spaghetti and Macaroni Pasta Production Line
Related Products
-
Pasta Production MachineryUS$ 20,000 - 40,000MOQ: 1 Set -
Professional Stainless Steel Italian Pasta Production Line With Full AutomaticUS$ 9,000 - 40,000MOQ: 1 Set
-
Stainless Steel Automatic Italian Pasta Machinery With CEUS$ 9,000 - 40,000MOQ: 1 Set
-
80-120kg/h Pasta Manufacturing Plant in Chenyang FactoryUS$ 9,000 - 40,000MOQ: 1 Set
-
80-120kg/h Single Screw Spaghetti Pasta ManufactureUS$ 9,000 - 40,000MOQ: 1 Set
Main line to Features:
This process line uses potato starch,corn starch,cassava starch,wheat flour as material produced various shapes second inflating food.This line is reasonable design,high automation,extruding parameter exactitude controlled.
Main extruder has high and low pressure screw,enwide the scope of raw material,reducing process cost and modify the product quality

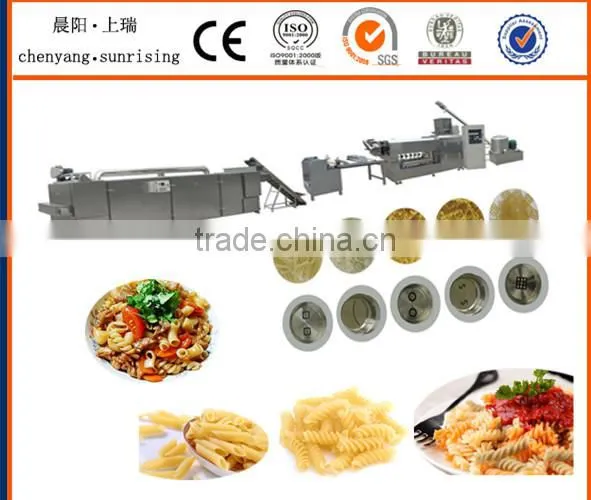

The macaroni flow chart as follow:

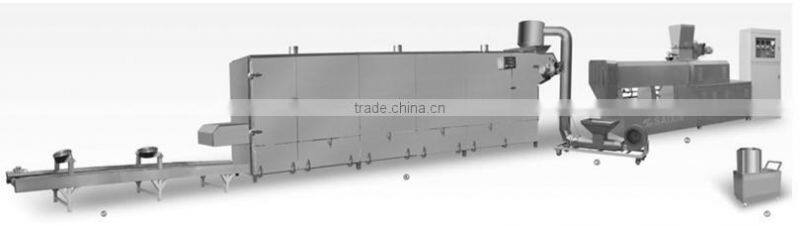

Mixer---Screw conveyor---Single-screw extruder---Cutting machine ---dryer---cooling conveyor---packing

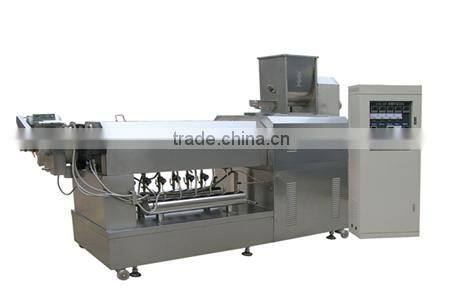

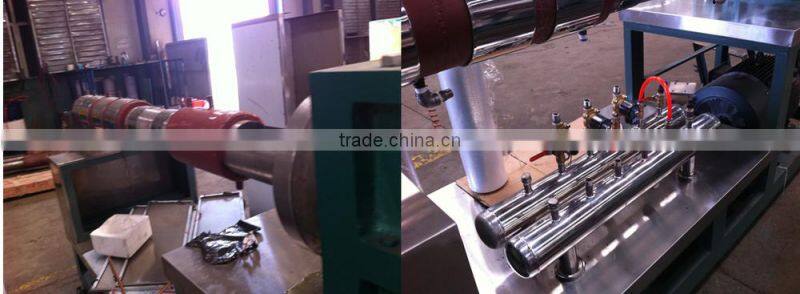

About the Single screw extruder, we add the cooling system to control the temperature and then make the corn pellets more good quality, we add the Decelerator on the extruder and make the extruder runs more steady. The materials of the barrel is anti-corrosion and wear-resistant materials,as the mechanical support, the outer most is made by stainless steel for good corrosion resistance and can be washed by water directly.by using a variety of alloys and materials, the center layer has high wear-resistant performance.the length of the screw is 2050 mm.
A:extruding systems: the screw with high wear-resistant performance by using alloys steel materials, screw is made by special technique, is able to bear grinding, steady and reliable, longer using life.according to different screw design rate to full different technology request.
B:Cutting system :the cutting system adopt center cutting,high precisional orientation to make sure that the cutting knife keep a parallel place with the cyclostyle avoid the wear and tear, the head of the cutting knife like a spring ,so that the symmetrical pressure make the cutting very easy ,after cutting the products size looks more perfect.especially avoid the metal powder go into the products.
C:Heating system:use the far infrared heating manner,circulate water for cooling,to guarantee the extruder running safely.
D: Gearing system:the main motor,feeding ,cutting,liquid feeding system of the extruder all use the frequency to control the speed ,the frequency w e use is : DELTA,the gear we use hard gear,enough strong,running placidiy and low noise.
E: lubricating system:have single oil box circle system,and have a inspect equipment for the press meter.
F: Controlling system :consists of feeding system, extruding system and cutting system adopts frequency speed-controlling with high automation and stable per-formation.
G: Feeding system:according to different materials, to choose the relative single or double screw feeding system, the materials should be uniformity and stable.
H: the extruder has cooling system, it can control the temperature well.
main motor power:- 30kw
heating system :14kw
feeding motor :0.75kw
oil pump motor :075kw
cutting system :0.75kw
with cooling system inside

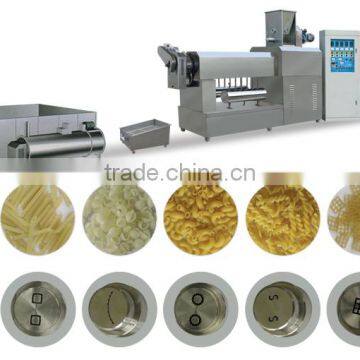

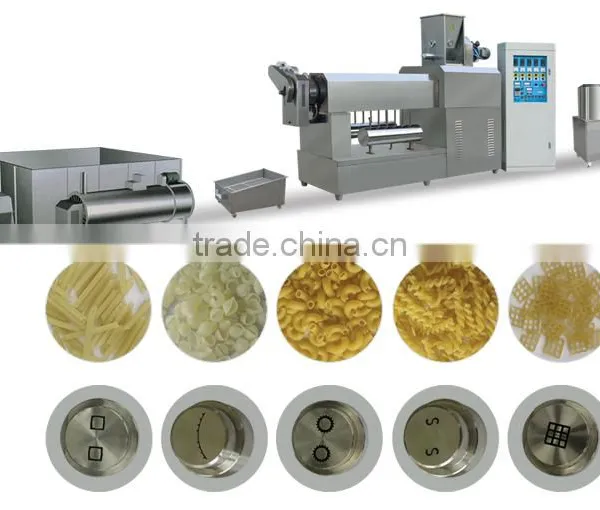

change dies can do different shapes
speed control by frequency
Dimension :2.5*1.0*2.0m
