pasta production machinery

Specifications

pasta production machinery
1advanced extruded technology
2basic formula
3help and train your worker
4fully automatic large





high quality pasta production machinery







Introduction



The macaroni production line mainly use flour, starch as raw material. We are using unique extrusion process, many popular shapes in market, the rational design of the production line, There are fully automatic, precisely control system, the host with the high and low pressure screw, to increase the range of use of raw materials, to reduce the cost and improve the product quality. The main products are: .



Products

This line can be used to produce screw, shell, round tube, square tube, bend tube and so on.

Raw materials

Wheat flour.

Capacity

80-100kg/h

Machine material

All the machines are made by Stainless steel 201,If you have special requirement, we also have ss304,ss316.

Voltage

Chinese Input Voltage is 380V/ 50Hz /3, If it is different from yours , we will adjust it .

Process Flow

Mixer---screw conveyor---single screw extruder---cutting machine---cooling conveyor---roasting oven---cooling---(packing machine)



Technical parameter of macaroni production line



Model	CYS-100 Single-screw extruder line
Installed capacity	55KW
Power consumption	40KW
Output	80-100kg/h
Size	18.0*1.2*2.0m



Technical parameter of machine



NO	Machine	Motor Power	Capacity	Dimension	Quantity	Function
1	Mixer	4KW	50kgs /once time	0.8*0.7*1.5m	1set	To mix the raw materals with the water
2	Screw conveyer	1.1KW	100-150kg/h	3.0*0.8*2m	1set	To send the materials to the extruder
3	CYS-100 Single screw extruder	30KW	80-100kg/h	4.0*1.2*3.0 m	1set	To extrude the food.the main machine of the line
4	Cutting machine	1.1KW	80-150kg/h	2.4*0.6*1.3	1set	To cut the macaroni to round tube or square tube
5	Vibrate cooler	0.75KW	80-150kg/h	1.0*0.8*1.3	set	To cool and convey the macaroni
6	5layers 8meter oven		80-120kg/h	8.0×1.4×2.5m	1set	To dry the macaroni
7	Cooling machine	1.2kw	150-300kg/h	6m lenth	1set	To cool the macaroni















































































About installation and after-sale service system:

1. We can provide factory layout according to customer’s factory size in advance

2. When we received your deposit of this order, we will ask our engineers to prepare to apply the visa, when food processing line arrived your country, and we will send two engineers to go and help you to install the fried snack food line, teach your worker(3-4 workers) how to operate the  food line, until your worker know the  food line well.

3. Our engineers has responsibility to teach your worker how to clean the extruder, how to change the screw,  how to change barrel etc. and we have responsibility to provide technology support with you forever.

4. Our engineers can provide basic formula for producing the snack food and help customer to produce good quality food according customer’s detailed formula.

5. We provide the spare parts will at preferential price for an extended long time. 6. other item:

a). Free consultation service before, during, and after sales

b). Free project planning and design services;

c). Free debugging of equipment until everything is functional;

d). Free management of equipments' long distance shipping;

e). Free training of equipment maintenance and operating personally;

f ). Free new production techniques and formulas;

g). Provide 1 year complete warrantee and life-time maintance service

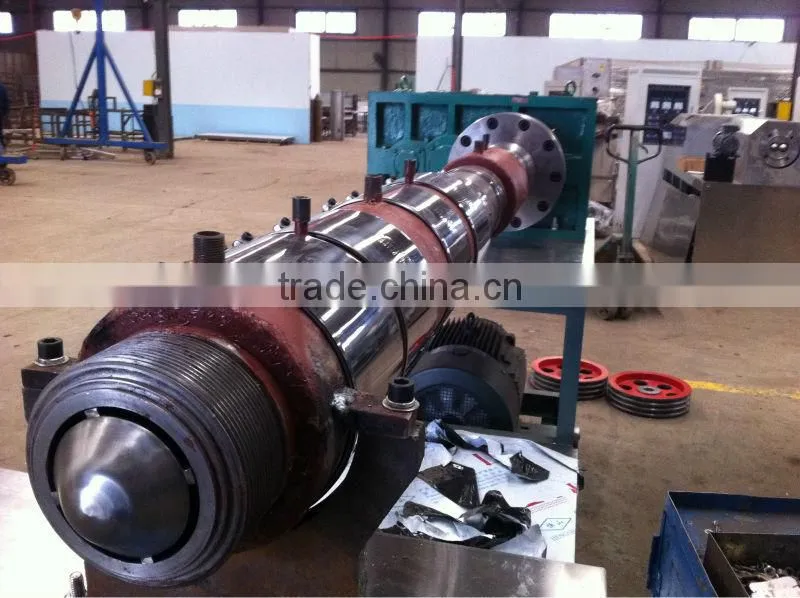

equipment picture
