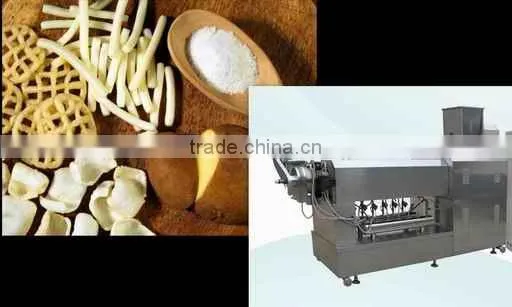

Tri-D food production lineTri-D food production line
Introduction
3D pellet snack food processing line is designed for making the pellets, chips, fried snacks by single screw extruder machine. Raw materials can be used as potato starch, corn starch, cassava starch wheat flour, etc. Through the extruder ,then the snacks can be shaped to many different shapes by cutting machine,such as heart,triangle,badminton,duck,oval,shell,screw and so on. After drying and frying, at final, flavoring with the flavor powder can get delicious 3D pellet snacks food.
Products
This line can be used to produce 3D pellet snacks.
Raw materials
potato starch , corn starch , cassava starch , wheat flour etc.
Capacity
80-100kg/h
Machine material
All the machines are made by Stainless steel 201.We can produce in your requirement.
Voltage
Chinese Input Voltage is 380V/ 50Hz /3, If it is different from yours , we will adjust it .
Technical parameter of 3D pellet snack production line
Model |
CYS100 Single-screw extruder line |
Installed capacity |
86KW |
Power consumption |
55KW |
Output |
80-100kg/h |
Size |
16*1.2*1.8m |
Technical parameter of machine
NO |
Machine |
Motor Power |
Capacity |
Dimension |
Quantity |
Function |
1 |
Mixer |
4KW |
50kgs /once time |
0.8*0.7*1.5m |
1set |
To mix the raw materals with the water |
2 |
Screw conveyer
|
1.1KW |
100-150kg/h |
3.0*0.8*2m |
1set |
To send the materials to the extruder |
3 |
CYS-100 Single screw extruder |
30KW |
80-100kg/h |
4.0*1.2*3.0 m |
1set |
To extrude the food.the main machine of the line |
4 |
Cutting machine |
1.1KW |
80-150kg/h |
2.4*0.6*1.3 |
1set |
To cut the macaroni to the 3D shape |
5 |
Shifter |
0.55KW |
|
2.0m length |
2sets |
To cool and sifting the 3Dpellet snacks |
6 |
5layers 5meter oven |
|
80-120kg/h |
5.0*1.4*2.5m |
1set |
To dry the 3D pellet snacks |
7 |
Fryer |
65KW |
100-200kg/h |
4.0*1.3*2.0m |
1set |
To frying the 3D snacks to the final product |
8 |
Single flavoring roller |
0.55kw |
150kg/h |
2.1*1.1*1.9m |
1set |
To flavor the 3D pellet snacks |
