protein food machine
- qingdao
- T/T
You May Like
Product Details
Condition | New | Place of Origin | Shandong, China | |
Brand Name | chenyang | Model Number | CY65-III | |
Type | Bean Curd Machine | Voltage | 380 220V | |
Power(W) | 90KW | Weight | 2t | |
Dimension(L*W*H) | 16.0*1.2*1.8m | Certification | CE ISO | |
Warranty | 12 months | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

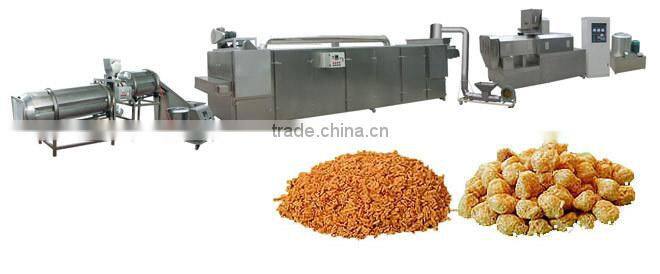

Protein Food Production Line
Introduction
Plant tissue protein production line is puffed my company which to adapt to the requirements of the food market, it is based on years of the development of new equipment experience. The machine use low-temperature soybean meal or peanut meal as raw materials, produce new foods such as lean meat state (commonly known as artificial meat),looks like muscle and taste like mastication.It can be widely used in ham, sausage, canned food, fast food, frozen food production . Nowadays, with the increasing of people's lives,Jinan Chenyang artificial plant meat production is not only nutritional but also the health benefits to the human body, 54 % plant protein to be much higher nutritional than the animal protein.
Products
This line can be used to produce plant pretein food, used in ham,cam,fast food,instant-cool food.
Raw materials
Soybean powder, peanut meal.
Capacity
180-220kg/h, 300-500kg/h
Machine material
All the machines are made by Stainless steel 201,If you have special requirement, we also have ss304,ss316.
Voltage
Chinese Input Voltage is 380V/ 50Hz /3, If it is different from yours , we will adjust it .
Technical parameter of the protein food production line
Model | CY65-III Double-screw extruder line | CY85-II Double-screw extruder line |
Installed capacity | 90KW | 120KW |
Power consumption | 65KW | 95KW |
Output | 180-220kg/h | 300-500kg/h |
Size | 16.0*1.2*1.8m | 18.0*1.2*1.8m |
Technical parameter of the machine
NO | Machine | Motor Power | Capacity | Dimension | Quantity | Function |
1 | Mixer | 4KW | 50kgs /once time | 0.8*0.7*1.5m | 1set | To mix the raw materals with the water |
2 | Screw conveyer
| 1.1KW | 100-150kg/h | 3.0*0.8*2m | 1set | To send the materials to the extruder |
3 | CY65-III Double screw extruder | 30KW
| 180-220kg/h | 4.0*1.2*3.0 m | 1set | To extrude and inflate the food.the main machine of the line |
4 | Air conveyer | 1.5KW |
| 4.1m length | 1set | To connect two machines |
5 | 3layers 5meter oven |
| 150-300kg/h | 5.0×1.4×2.0m | 1set | To dry the protein food |
12 | Cooling machine | 1.2kw | 150-300kg/h | 6m lenth | 1set | To cool the protein food |
