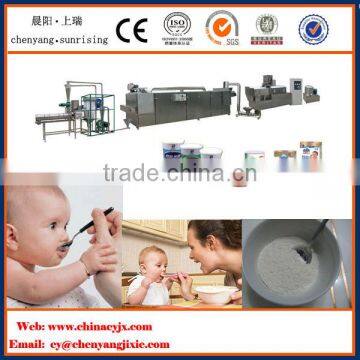

Baby Milk Powder Food Heathy Nutritional Milk Rice Making Machine

Baby Milk Powder Food Heathy Nutritional Milk Rice Making Machine photo-1
Baby Milk Powder Food Heathy Nutritional Milk Rice Making Machine photo-2
Baby Milk Powder Food Heathy Nutritional Milk Rice Making Machine photo-3
Baby Milk Powder Food Heathy Nutritional Milk Rice Making Machine photo-4
US$ 4,350 - 150,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
ChenYang
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Shandong, China
Brand Name ChenYang
Model Number CY65-III/CY85-II
Application Other, baby food
Voltage 220V/380V
Power(W) 55kw /65kw
Weight it depends
Dimension(L*W*H) 18000*1200*2000mm/19000*1500*2000mm
Certification CE ISO9001
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas



Introduction:

The nutritional powder production line is according to the European and American technology, our company developed to our own technology, the production line is fully automatic, stablely performance, simply operation, highly yield, less time produce, and overcome all the disadvantages of the original tradition.Now our nutritional powder production line widely used in all kinds of baby rice, sesame paste, walnut paste-type products.

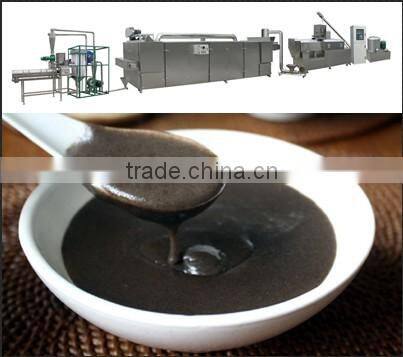

Baby milk Powder food Heathy nutritional milk rice making machineBaby milk Powder food Heathy nutritional milk rice making machineBaby milk Powder food Heathy nutritional milk rice making machine





Products:



This line can be used to produce baby rice, sesame paste, walnut paste-type products.



Raw materials:



Rice, sesame, walnut, black rice and so on.



Capacity:



120-150kg/h, 180-220kg/h



Machine material:



All the machines are made by Stainless steel 201, If you have special requirement, we also have ss304,ss316.



Voltage:



Chinese Input Voltage is 380V/ 50Hz /3, If it is different from yours , we will adjust it .



Process Flow:

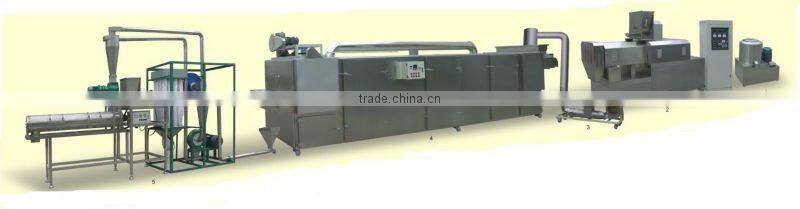

Mixer---screw conveyor---Double screw extruder---air conveyor---roasting oven---crusher---(packing machine)



Technical parameter of rice powder production line



ModelCY65-II Double-screw extruder lineCY85-II Double-screw extruder line
Installed capacity69KW76KW
Power consumption55KW65KW
Output 120-150kg/h180-220kg/h
Size18.0*1.2*2.0m19.0*1.5*2.0m





Technical parameter of machine



NOMachineMotor PowerCapacityDimensionQuantityFunction
1Mixer4KW50kgs /once time0.8*0.7*1.5m1setTo mix the raw materals with the water
2Screw conveyer1.1KW100-150kg/h3.0*0.8*2m1setTo send the materials to the extruder
3
CY65-II
Double screw extruder
30KW120-150kg/h4.0*1.2*3.0 m1setTo extrude and inflate the food.the main machine of the line
4Air conveyer1.5KW 4.1m length1setTo connect two machines
53layers 5meter oven 120-150kg/h5.0*1.4*2.0m1setTo dry the rice or sesame
6Crusher65KW120-180kg/h2.5*1.5*2.5m1setTo crush the rice to powder



Our Company:

Baby milk Powder food Heathy nutritional milk rice making machineBaby milk Powder food Heathy nutritional milk rice making machineBaby milk Powder food Heathy nutritional milk rice making machine



Our Services:





1. We can provide factory layout according to customer’s factory size in advance.



2. When we received your deposit of this order, we will ask our engineers to prepare to apply the visa, when the processing line arrived your country, and we will send two engineers to go and help you to install the line, teach your worker(3-4 workers) how to operate the corn flakes line, until your worker know the well.



3. Our engineers has responsibility to teach your worker how to clean the extruder, how to change the screw, how to change barrel etc. and we have responsibility to provide technology support with you forever.



4. Our engineers can provide basic formula for producing the snack food etc. and help customer to produce good quality food according customer’s detailed formula.



5. We provide the spare parts will at preferential price for an extended long time.



6. other item:



a). Free consultation service before, during, and after sales;



b). Free project planning and design services;



c). Free debugging of equipment until everything is functional;



d). Free management of equipments' long distance shipping;



e). Free training of equipment maintenance and operating personally;



f ). Free new production techniques and formulas;



g). Provide 1 year complete warrantee and life-time maintance service;
