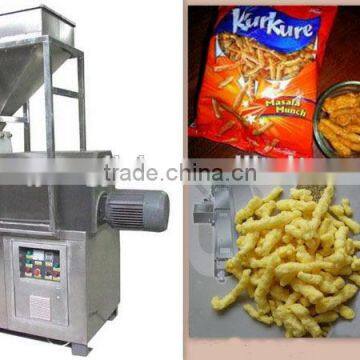

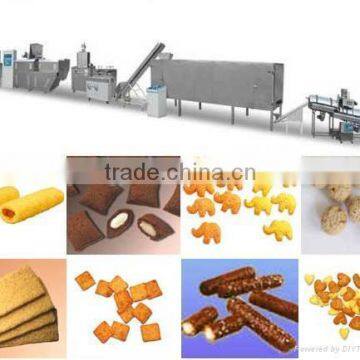

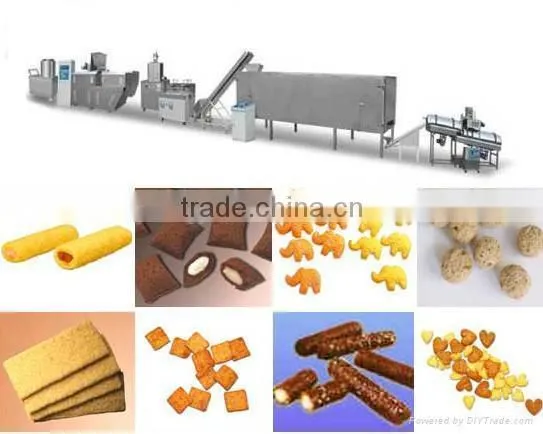

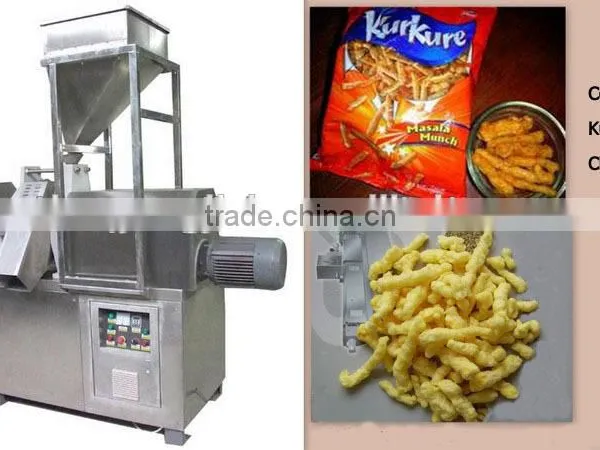

Crisp Delicious Snack Food Extruder

Total Introduction:

Food screw extruder mainly contains :feeding systems, extruding systems, cutting systems,heating systems,gearing systems, lubricating system, control system, it can produce snack food, pet food etc by changing the different screw, we have many model, it can meet customer’s different requirments.Besides the motor is  Schneider Electric or Siemens motor

Technical Parameter :

Detailed information for CY65-II extruder :

Double screw extruder mainly contains :feeding systems, extruding systes, cutting systems, heating systems, gearing systems, lubricating system, control system.

Main features:

A: extruding systems: the screw with high wear-resistant performance by using alloys steel materials(38ARMOAL), screw is made by special technique, is able to bear grinding, steady and reliable, longer using life. according to different screw design rate to full different technology request.

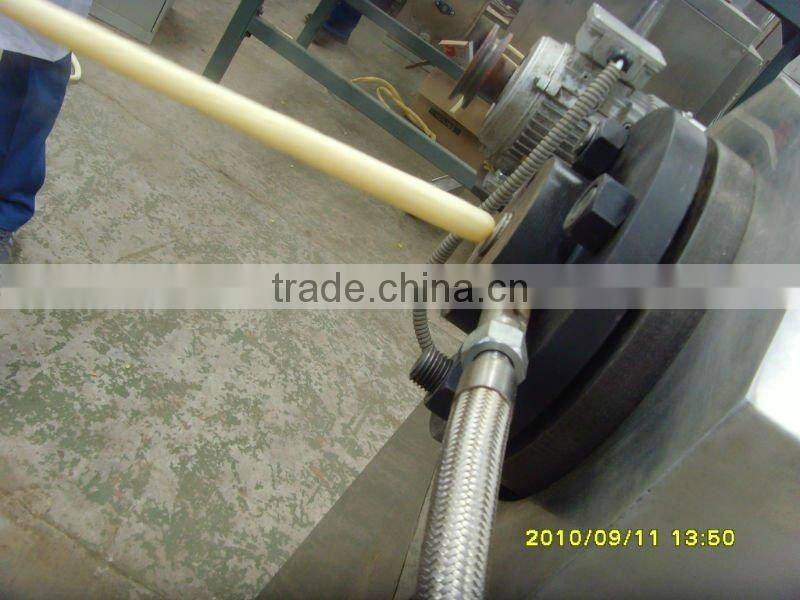

B: Cutting system :the cutting system adopt center cutting, high exactly to make sure that the cutting knife keep a parallel place with the cyclostyle avoid the wear and tear, the head of the cutting knife like a spring ,so that the symmetrical pressure make the cutting very easy ,and cutting the product size look more perfect. especially avoid the metal powder go into the products.

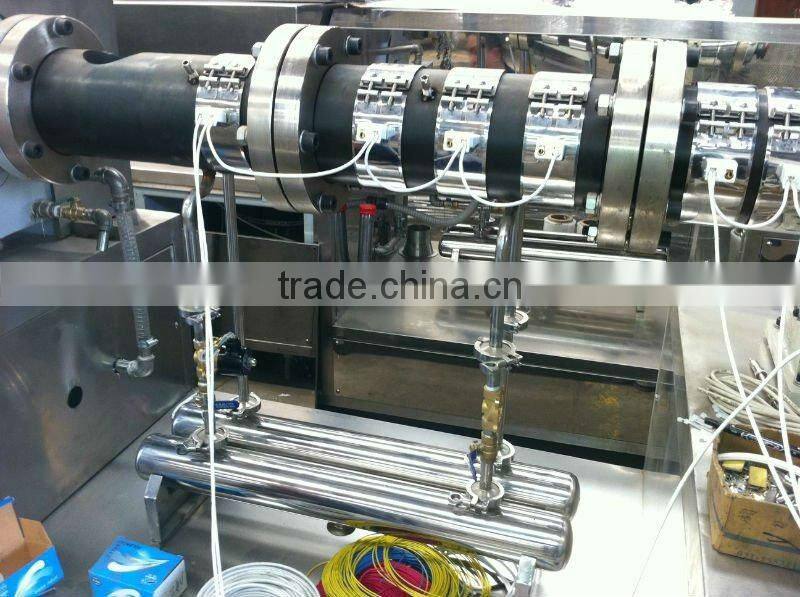

C: Heating system: use the far infrared heating manner, circulate water for cooling, to guarantee the extruder running safely.

D: Gearing system: the main motor, feeding ,cutting, liquid feeding system of the extruder  all use the frequency to control the speed ,the frequency we use is : DELTA, the gear we use hard gear, enough strong, running placidity and low noise.

E: lubricating system: have single oil box circle system,and have a inspect  equipment for the press meter.

F: Controlling system : consists of feeding system, extruding system and cutting system adopts frequency speed-controlling with high automation and stable per-formation.

G: Feeding system: according to different materials, to choose the relative single or double screw feeding system, the materials should be uniformity and stable.

H: Cooling system: we add the cooling system on each zone,it can control the temperature well.

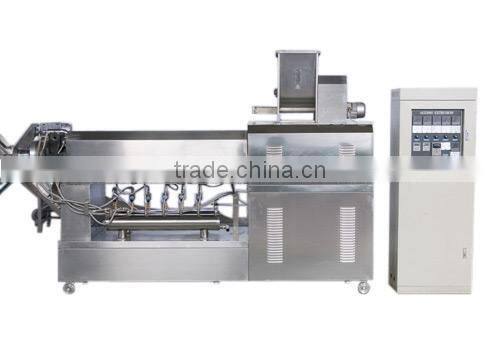

CY65-II double screw extruder

              main motor:       22 KW

          cutting motor :      0.37 kw

          feeding motor:       0.75kw

       oil control motor:       0.75kw

                   capacity:     120-150kg/h

                         size:     3.0*1.0*1.8 m

         Screw diameter:     65mm

             Screw length:    1050mm

Barrel/Screw materials:  38 ARMOAL

The barrel and screw HRC(High-Rupturing capacity):  60

Voltage:

Three phases: 380V/50Hz, Single phase : 220V/50Hz, we can make it according to customers' Local voltage according to different countries

Sample pictures :

Installation and after-sale service system:

1. Installation and commissioning

2. Project planning and design services

3. Training of equipment maintenance and operating personally

4. New production techniques and formulas

5. 1 year complete warrantee
