Corn Snack Food Puff Extruder Machines

Jinan Chenyang Technology Co., Ltd.
Corn Snack Food Puff Extruder Machines thumbnail-1
Corn Snack Food Puff Extruder Machines photo-1
US$ 1 - 2 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
chenyang
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Shandong, China
Brand Name chenyang
Model Number CY65-II CY85-II
Application Other, food making machine
Voltage 380v
Power(W) 100KW 180KW
Weight 2t 3t
Dimension(L*W*H) 28.0*1.2*2.0m 30.0*1.5*2.0m
Certification CE ISO
Warranty one year
After-sales Service Provided Engineers available to service machinery overseas

Specifications

corn snack food puff extruder machines
1 best quality
2 good seller
3 large amount
4.high-efficiency



Corn snack food machine

corn snack food puff extruder machines



Introduction

We are professional manufacturer of food machinery. We have many years experience in this industry. Our machine has been exported many countries,like Russia,German,Ukraine,South Africa, they have obtained much praise for their reliability and full sutomatic from our clients.Corn flakes can be flavored with sugar,honey,coco and cheese,etc.Corn flakes are a popular breakfast cereal manufactured by twin-screw extruder through the treatment of corn flakes of grain, served with milk and marshmallows, were a very popular food among the families.



Features

1)Corn flakes is one kind of crispy food which is processed by this line and adopt grist as basic material
2)It is fast and nourishing food with given structrue,such as granule shape,flake shape and animal shape.
3)For the cornflakes processing line, different process get different snacks,and different taste.

 corn snack food puff extruder machinescorn snack food puff extruder machinescorn snack food puff extruder machines





corn snack food puff extruder machines

Products

This line can be used to produce corn flakes, breakfast cereals, snacks by adjusting the dies from extruder.

Raw materials

Kinds of cereals, such as: corn flour, rice flour, corn grits, millet and so on.

Capacity

120-150kg/h, 300-400kg/h

Machine material

All the machines are made by Stainless steel 201,If you have special requirement, we also have ss304,ss316.

Voltage

Chinese Input Voltage is 380V/ 50Hz /3, If it is different from yours , we will adjust it .

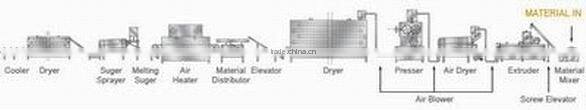

Process Flow

Mixer---extruder---vibrate cooler---air conveyr---rollers drying machine---flaking machine---air conveyor---roasting oven---high temperature oven---second vibrate cooler---sugar spayer--- multi-layer oven---cooling







corn snack food puff extruder machines



Technical parameter of the corn flakes production line





Model

CY65-II Double-screw extruder line

CY85-II Double-screw extruder line

Installed capacity

100KW

180KW

Power consumption

70KW

140KW

Output

120-150kg/h

300-400kg/h

Size

28.0*1.2*2.0m

30.0*1.5*2.0m



Introduction of machine

NO

Machine

Motor Power

Capacity

Dimension

Quantity

Function

1

Mixer

4KW

50kgs /once time

0.8*0.7*1.5m

1set

To mix the raw materals with the water

2

Screw conveyer

1.1KW

100-150kg/h

3.0*0.8*2m

1set

To send the materials to the extruder

3

CY65-III Double screw extruder

30KW



120-150kg/h

4.0*1.2*3.0 m

1set

To extrude and inflate the food.the main machine of the line

4

Shifter

0.55KW



2.0m length

3sets

To cool and sifting the corn flakes.

5

Air conveyer

1.5KW



4.1m length

4set





To connect two machines





6

Single roller

0.37kw



2.1*0.7*1.6m

1set

to cool the corn flakes, avoid tostick together

7.

The flaking machine



5.5kw

150kg/h

1.8*1.1*1.2m

1set

To flake the corn pellets into corn flakes

8

5layers 5meter oven



150-300kg/h

6.0*1.4*2.0m

1set

To dry the corn flakes

9

High-temperature oven



100-150kg/h

3.0*1.5*1.5m

1set

To inflate the corn flakes

10

Sugar coating drum

0.55kw

150kg/h

2.1*1.1*1.9m

1set

To flavor the corn flakes

11

5layers 5meters oven with hoister



150-300kg/h

9.0*1.4*2.0m

1set

To dry the corn flakes

12

Cooling machine

1.2kw

150-300kg/h

6m lenth

1set

To cool the corn flakes

corn snack food puff extruder machines

corn snack food puff extruder machines
