Specifications
1widely useful corn flakes food machine2.Advanced extruder
vide basic formula
and train your worker

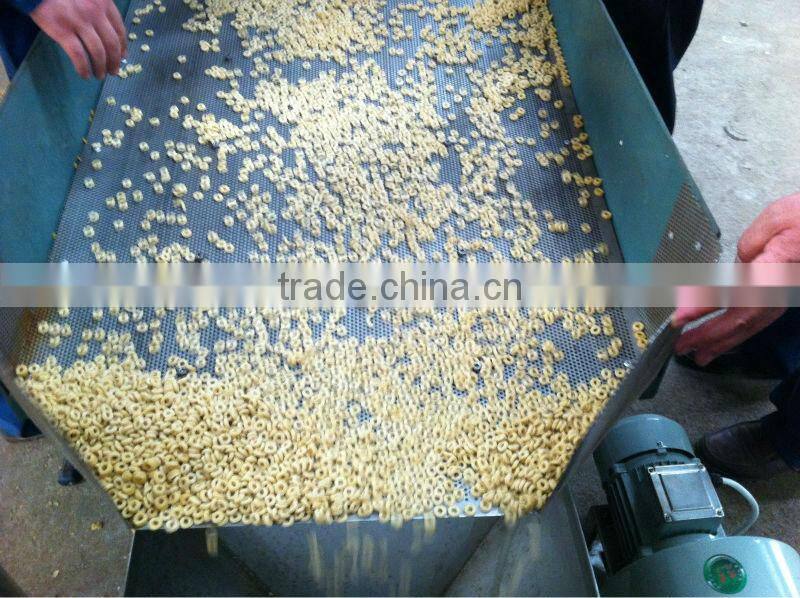

Inflated corn snacks manufacturing plant
Payment term:
1. 40% of total payment as the deposit,we will finish the machine within 40 days.
2. 60% of total payment before making delivery the Equipment to Buyer’s plant.
Package: Wooden case for export, fit for multiple handing and long distance marine shipping.
Delivery time: Seller should get all the goods ready and ship the goods to the destination port within 40 days after receiving the total amount price.
Quality guarantee terms: equipment shall be guaranteed 12 month, without destroyed by some people. Enclosed the whole line, we will give you some spare parts, such as heating ring, spanner, etc. for free. The spare parts shall be supplied at preferential price for an extended long time.
Installation and training: we will send our engineer to install and train in your company, on condition that you should supply the go and return air tickets, the accommodation, the food for our engineers and also pay USD50 each person per day.
Detail information
1: Produced by double screw extruder CY65-II , the capacity is 120-150 kg/h.
2: Raw material use corn powder, rice powder,wheat flour, buckwheat flour, oats flour, millet, black rice, buckwheat, sorghum oats and so on.
3: The production line power consumption is 53kw.
4: The size of production line: 15000*800*1600mm.
5: All the machine material is stainless steel 201.
6: All the motor, electrical devices and components, frequency converter ,we have them made in China . We also have SIEMENS/ABB/DELTA but the price is fifferent.
7: Energycan use electrical, gas , fuel. Chinese Input Voltage is 380V/50Hz/3, If it is different from yours , we will adjust it .

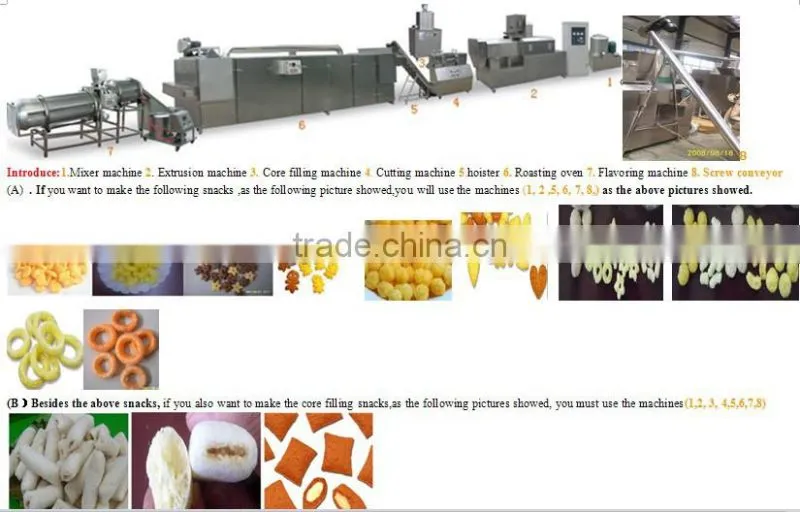

Flow chart
mixer---extruder---roasting---flavoring--- (packing)
Include machines
Mixer---screw conveyor---double screw extruder CY65-II---air conveyor---Three layers electrical roasting oven---Automatic flavoring line---(packing machine)
NO. | EQUIPMENT | QUANTITY | TECHNICAL PARAMETER | FUNCTION |
1 | Mixer | 1 | Power:4kw Output:50kg/tube Size:0.8*0.7*1.2m | To mix the raw materials with the water
|
2 | Screw conveyor | 1 | Power:1.1kw Output:100-500kg/h Size: 0.2*0.8*3.0m | To send the materials to the extruder, |
3 | Double-screw extruder CY65-II | 1 | Power:35kw Length-diameter ratio: 1050*65 Output:120-150kg/h Size: 2.5*1.0*1.8m | To extrude and inflate the food. the main machine of the line |
4 | Air conveyor | 1 | Power:0.75kw Output:100-500kg/h Size: 2.5*0.6*2.0m | To send the food to the next machine
|
5 | Roasting oven (3layer/5m electrical) | 1 | Power:27.5kw Output:100-150kg/h Size: 5*1.3*2.0m | To dry the food
|
6 | Automatic flavoring line | 1 | Power 0.37kw Size 2.1*0.7*1.6m Output 150-200kg/h | To flavor the production
|
7 | Cooling conveyor | 1 | Power:3kw Output:200-250kg/h Size: 6.0*0.6*1.0m | To cool the food
|
Installation and after-sale service system:
1. Installation and commissioning
2. Project planning and design services
3. Training of equipment maintenance and operating personally
4. New production techniques and formulas
