corn flaks machine line/plant
Automatic maize food/corn flakes making machine line use cereals as main raw material.After extruding(or boiling).planishing,drying,roasting,coating and cooling,or after extruding and inflating to produce such as ring,grain or flakes shape.These kinds of food can be mixed with coffee or milk.Of course,it can be eaten directly as snacks,food taste.
Maize chips making machine Description:
The finished product having long lasting crispness in milk due to minimal damage of the cereal's
starch structure during processing thanks to the particular process conditions. An end product
exhibiting the best combination of texture, colour and flavour base on an accurate control of the
conditioning, drying and toasting stages of the process.
Technical parameter of the corn flakes production line
Model | CY65-II Double-screw extruder line | CY85-II Double-screw extruder line |
Installed capacity | 100KW | 180KW |
Power consumption | 70KW | 140KW |
Output | 120-150kg/h | 300-400kg/h |
Size | 28.0*1.2*2.0m | 30.0*1.5*2.0m |

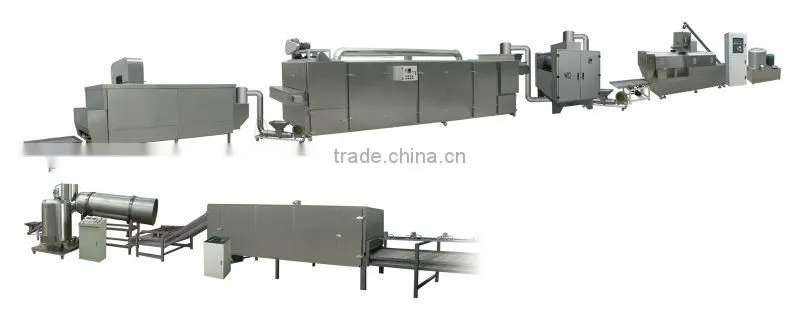

Introduction of machine
NO | Machine | Motor Power | Capacity | Dimension | Quantity | Function |
1 | Mixer | 4KW | 50kgs /once time | 0.8*0.7*1.5m | 1set | To mix the raw materals with the water |
2 | Screw conveyer | 1.1KW | 100-150kg/h | 3.0*0.8*2m | 1set | To send the materials to the extruder |
3 | CY65-III Double screw extruder | 30KW
| 120-150kg/h | 4.0*1.2*3.0 m | 1set | To extrude and inflate the food.the main machine of the line |
4 | Shifter | 0.55KW | 2.0m length | 3sets | To cool and sifting the corn flakes. | |
5 | Air conveyer | 1.5KW | 4.1m length | 4set
| To connect two machines
| |
6 | Single roller | 0.37kw | 2.1*0.7*1.6m | 1set | to cool the corn flakes, avoid tostick together | |
7. | The flaking machine
| 5.5kw | 150kg/h | 1.8*1.1*1.2m | 1set | To flake the corn pellets into corn flakes |
8 | 5layers 5meter oven | 150-300kg/h | 6.0*1.4*2.0m | 1set | To dry the corn flakes | |
9 | High-temperature oven | 100-150kg/h | 3.0*1.5*1.5m | 1set | To inflate the corn flakes | |
10 | Sugar coating drum | 0.55kw | 150kg/h | 2.1*1.1*1.9m | 1set | To flavor the corn flakes |
11 | 5layers 5meters oven with hoister | 150-300kg/h | 9.0*1.4*2.0m | 1set | To dry the corn flakes | |
12 | Cooling machine | 1.2kw | 150-300kg/h | 6m lenth | 1set | To cool the corn flakes |
The Samples:

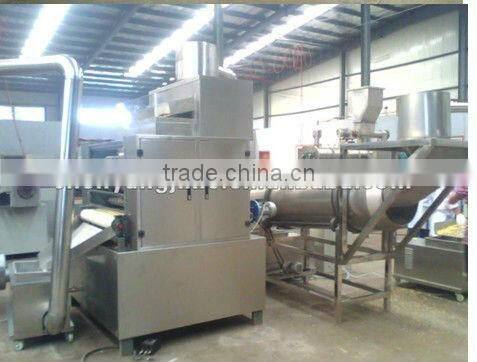

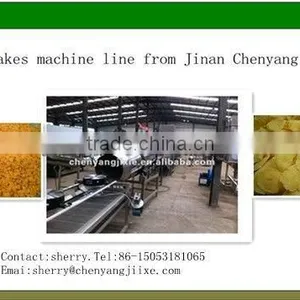

In our factory :
