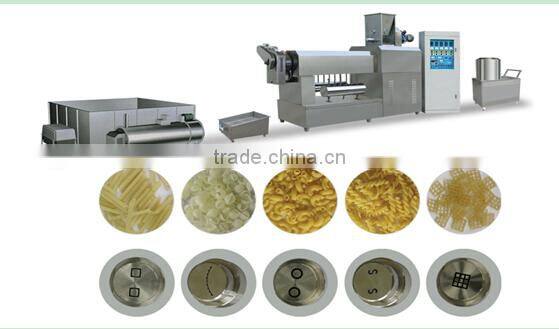

Macaroni Production Line
Introduction
The macaroni production line mainly use flour, starch as raw material. We are using unique extrusion process, many popular shapes in market, the rational design of the production line, There are fully automatic, precisely control system, the host with the high and low pressure screw, to increase the range of use of raw materials, to reduce the cost and improve the product quality.
Products
This line can be used to produce screw, shell, round tube, square tube, bend tube and so on.
Raw materials
Wheat flour.
Capacity
80-100kg/h
Machine material
All the machines are made by Stainless steel 201,If you have special requirement, we also have ss304,ss316.
Voltage
Chinese Input Voltage is 380V/ 50Hz /3, If it is different from yours , we will adjust it .
Process Flow
Mixer---screw conveyor---single screw extruder---cutting machine---cooling conveyor---roasting oven---cooling---(packing machine)
The main products are:
Technical parameter of macaroni production line
Model |
CYS-100 Single-screw extruder line |
Installed capacity |
55KW |
Power consumption |
40KW |
Output |
80-100kg/h |
Size |
18.0*1.2*2.0m |
Technical parameter of machine
NO |
Machine |
Motor Power |
Capacity |
Dimension |
Quantity |
1 |
Mixer |
4kw |
50kgs /once time |
0.8*0.7*1.5m |
1set |
2 |
Screw conveyer
|
1.1kw |
100-150kg/h |
3.0*0.8*2m |
1set |
3 |
CYS-100 Single screw extruder |
30kw |
80-100kg/h |
4.0*1.2*3.0 m |
1set |
4 |
Cutting machine |
1.1kw |
80-150kg/h |
2.4*0.6*1.3 |
1set |
5 |
Vibrate cooler |
0.75kw |
80-150kg/h |
1.0*0.8*1.3 |
1set |
6 |
5layers 8meter oven |
|
80-120kg/h |
8.0×1.4×2.5m |
1set |
7 |
Cooling machine |
1.2kw |
150-300kg/h |
6m lenth |
1set |
