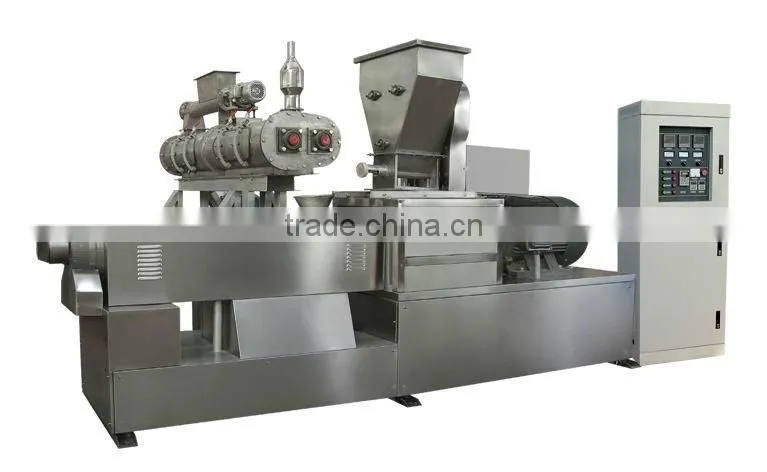

The breakfast cereals extruder machine
Series of Double-screw Inflating Extruder are consisting of feeding system, extruding system, cutting system, heating system, Gearing system and controlling system.
1.Consists of feeding system extruding system and cutting system, adopts frequency speedcontrolling with high automation and stable per-formation.
2. Automatic lubricating,cooling,to guarantee the extruder running safely.
3.Accordingto different material,to choose the relative single or double screw feeding system,the material should be uniformity and stable.
4. Screw is made by special technique,is able to bear grinding,steady and reliable, longer using life.
5. According to different screw design rate to full different technology request.
The detailed information
NO |
Machine
|
Motor Power
|
Capacity
|
dimension
|
Quantity
|
Function
|
1 |
mixer |
4KW |
50kgs /once time |
0.8*0.7*1.5m |
1set |
To mix the raw materals with the water |
2 |
screw conveyer
|
1.1KW |
100-150kg/h |
3.0*0.8*2m |
1set |
To send the materials to the extruder |
3 |
CY65-III Double screw extruder |
30KW
|
120-150kg/h |
4.0*1.2*3.0 m |
1set |
To extrude and inflate the food.the main machine of the line |
4 |
Shifter
|
0.55KW |
|
2.0m length |
3sets |
To cool and sifting the corn flakes. |
5 |
air conveyer
|
1.5KW |
|
4.1m length |
4set
|
To connect two machines
|
6 |
single roller
|
0.37kw |
|
2.1*0.7*1.6m |
1set |
to cool the corn flakes, avoid tostick together |
7. |
The flaking machine
|
5.5kw |
150kg/h |
1.8×1.1×1.2m |
1set |
To flake the corn pellets into corn flakes |
8 |
5layers 5meter gas oven |
45kw |
150-300kg/h |
6.0×1.4×2.0m |
1set |
To dry the corn flakes |
9 |
High-temperature oven
|
70kw |
100-150kg/h |
3.0*1.5*1.5m |
1set |
To inflate the corn flakes |
10 |
sugar coating drum
|
0.55kw |
150kg/h |
2.1*1.1*1.9m |
1set |
To flavor the corn flakes |
11 |
5layers 5meters gas oven with hoister |
45kw |
150-300kg/h |
9.0×1.4×2.0m |
1set |
To dry the corn flakes |
12 |
cooling machine
|
1.2kw |
150-300kg/h |
3m lenth |
1set |
To cool the corn flakes |
Technical Parameter:
Model |
Installed power |
Actual power |
Main power |
Output |
Dimension |
Products |
CY65-lll |
35kw |
28kw |
22kw |
120-150kg |
2.5×1.0×1.8m |
Fried or without fried |
