Specifications
Nutritional power processing line1.120-300kg/h
2.CE,ISO
3.Suppy the basic formula and technology support
Products
This line can be used to produce baby rice, sesame paste, walnut paste-type products.
Raw materials
Rice, sesame, walnut, black rice and so on.
Capacity
120-150kg/h, 180-220kg/h
Machine material
All the machines are made by Stainless steel 201, If you have special requirement, we also have ss304,ss316.
Voltage
Chinese Input Voltage is 380V/ 50Hz /3, If it is different from yours , we will adjust it .
Process Flow
Mixer---screw conveyor---Double screw extruder---air conveyor---roasting oven---crusher---(packing machine)

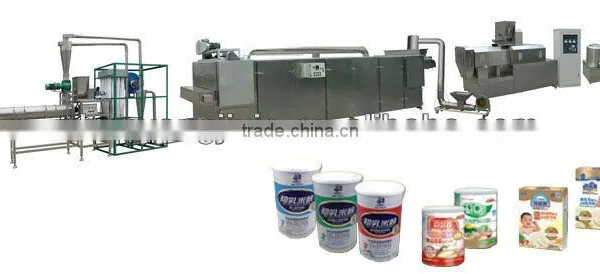

Automtic Nutritional power processing line
Introduction
The nutritional powder production line is according to the European and American technology, our company developed to our own technology, the production line is fully automatic, stablely performance, simply operation, highly yield, less time produce, and overcome all the disadvantages of the original tradition.Now our nutritional powder production line widely used in all kinds of baby rice, sesame paste, walnut paste-type products.
Products
This line can be used to produce baby rice, sesame paste, walnut paste-type products.
Raw materials
Rice, sesame, walnut, black rice and so on.
Capacity
120-150kg/h, 180-220kg/h
Machine material
All the machines are made by Stainless steel 201, If you have special requirement, we also have ss304,ss316.
Voltage
Chinese Input Voltage is 380V/ 50Hz /3, If it is different from yours , we will adjust it .
Process Flow
Mixer---screw conveyor---Double screw extruder---air conveyor---roasting oven---crusher---(packing machine)
Technical parameter of rice powder production line
Model |
CY65-II Double-screw extruder line |
CY85-II Double-screw extruder line |
Installed capacity |
69KW |
76KW |
Power consumption |
55KW |
65KW |
Output |
120-150kg/h |
180-220kg/h |
Size |
18.0*1.2*2.0m |
19.0*1.5*2.0m |
Technical parameter of machine
NO |
Machine |
Motor Power |
Capacity |
Dimension |
Quantity |
Function |
1 |
Mixer |
4KW |
50kgs /once time |
0.8*0.7*1.5m |
1set |
To mix the raw materals with the water |
2 |
Screw conveyer |
1.1KW |
100-150kg/h |
3.0*0.8*2m |
1set |
To send the materials to the extruder |
3 |
CY65-II Double screw extruder |
30KW |
120-150kg/h |
4.0*1.2*3.0 m |
1set |
To extrude and inflate the food.the main machine of the line |
4 |
Air conveyer |
1.5KW |
4.1m length |
1set |
To connect two machines |
|
5 |
3layers 5meter oven |
120-150kg/h |
5.0*1.4*2.0m |
1set |
To dry the rice or sesame |
|
6 |
Crusher |
65kw |
120-180kg/h |
2.5*1.5*2.5m |
1set |
To crush the rice to powder |
About installation and after-sale service system:
1. We can provide factory layout according to customer’s factory size in advance.
2. When we received your deposit of this order, we will ask our engineers to prepare to apply the visa, when the corn flakes processing line arrived your country, and we will send two engineers to go and help you to install the corn flakes line, teach your worker(3-4 workers) how to operate the corn flakes line, until your worker know the corn flakes line well.
3. Our engineers has responsibility to teach your worker how to clean the extruder, how to change the screw, how to change barrel etc. and we have responsibility to provide technology support with you forever.
4. Our engineers can provide basic formula for producing the corn flakes, breakfast cereals, snack food etc. and help customer to produce good quality food according customer’s detailed formula.
5. We provide the spare parts will at preferential price for an extended long time.
