1.Brief introduction:
Roller hanging type concrete pipe machine is a kind of machine to produce concrete pipes and Pre-stress concrete pipe. This machine use the roller to support the pipe mould,and produce roller force to the concrete in the mould. When the roller rotate at a high speed, the concrete in the mould will spread in the inner wall of the pipe mould and form a cement pipe with the centrifugal force.
We can design many kinds of pipe joint, including flush joint(flat mouth type), groove joint, socket and spigot joint(socket and plug mouth type) ect. And all the concrete pipes are widely used in admistrative drainage, agricultural field irrigation, rood culvert and deep water well .
2. Features of Concrete Pipe Mould
2.1 The adoption of integrated design is reinforced design of leakproof slurry, no rough edges on which the mouth of pipe joints, easy mold-opening.
2.2 The friction rings in the molds are all made of 45 cast steel.
2.3 The steel plate we use is produced by Laigang which is one of the four major steel mills, and its abrasion resistance will be guaranteed.
2.4 The carbon-dioxide arc welding is applied into the all welding. The plasma cutting machine is used for cutting. Welding seam is smooth and nice, and the cutting seam is very exquisite. All above ensure the mold tough and durable and extend the service life greatly.
Technical Parameter of Concrete Spun concrete pipe machine
| Type | SZ800x2000mm | SZ1200x2000mm | SZ1650x2000mm | SZ2000x2000mm |
| Pipe Diameter (mm) | 300-800(60m/day) | 800-1200(50) | 1200-1650(40) | 1650-2000(40) |
| Roller Diameter (mm) | 127 | 216 | 273 | 325 |
| Pipe Length (mm) | 2000 | 2000 | 2000 | 2000 |
| Motor Model | YCT225-4B | YCT1250-4B | YCT355-4A | YCT355-4B |
| Motor Power (KW) | 15 | 18.5 | 55 | 75 |
| Rolling Speed (r/m) | 62-618 | 62-61 | 72-727 | 72-727 |
| Machine Dimension (mm) | 4100x2350x1600 | 4100x2350x1850 | 4550x3500x2500 | 4550x3500x2900 |
| Output (pipes/8 hrs) | 30 | 25 | 20 | 20 |
Steel Pipe Mould Specification
| Inner Diameter of Top End(mm) | Wheel Distance(mm) | Pole Length(m) |
| Φ100 | 2000 | 6~7 |
| Φ110 | 2000 | 6~7 |
| Φ120 | 2000 | 6~8 |
| Φ130 | 2000 | 6~8 |
| Φ150 | 2000 | 6~10 |
| Φ170 | 2000 | 6~12 |
| Φ190 | 2000 | 7~12 |
| Φ190 | 2000 | 15~18 |
| Φ230 | 2000 | 6~9 |
| Φ310 | 2000 | 6~9 |
| Φ350 | 2000 | 6~9 |
| Φ390 | 2000 | 6~9 |
Pictures

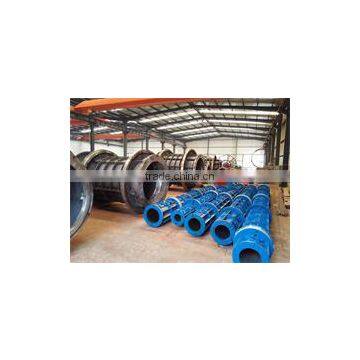

Cement pipe molds
Professional debug
Internal and external pressure test
PS:we can supply the whole concrete pipe forming line,matched with the roller suspension pipe making machine.
Concrete complete set of equipment:
1. Concrete Mixers (rotary-drum-type, double-horizontal-shaft);
2. Concrete Batchers;
3. Concrete Mixing/Batching Plants (25-480m3/h, stationary, mobile, conventional-type, compact-type, simple-type, commercial-type);
4.Electiric pole making mould (8M-18M, round/square)
5.Well pipes and drain pipes making mould(2m,4m,8m)
6.Suspension cement pipe making machine
7. Centrifugal machine
8. Vertical extrusion molding machine
9 Reinforcement cage seam welder
10.Boiler
11.Feeding machine
Any inquiry, pls feel free to contact us! |
|
