Prestressed Pole Column Machine as Exellent Seller Electricity Cord

FOB Price

US$ 1,000 - 25,000 / Set

1 Set(Min. Order)

Port Qingdao
Payment TermsT/T Money Gram

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Pipe Molding Machine
Pipe Material	Concrete	Application	Drain Pipe
Production Capacity	4-6 pipes	Place of Origin	Shandong, China
Brand Name	CICQ	Model Number	1500-2000*2000
Voltage	380V	Power(W)	110KW
Dimension(LWH)	500028002080mm	Weight	8500kg
Certification	ISO	Warranty	12 months
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

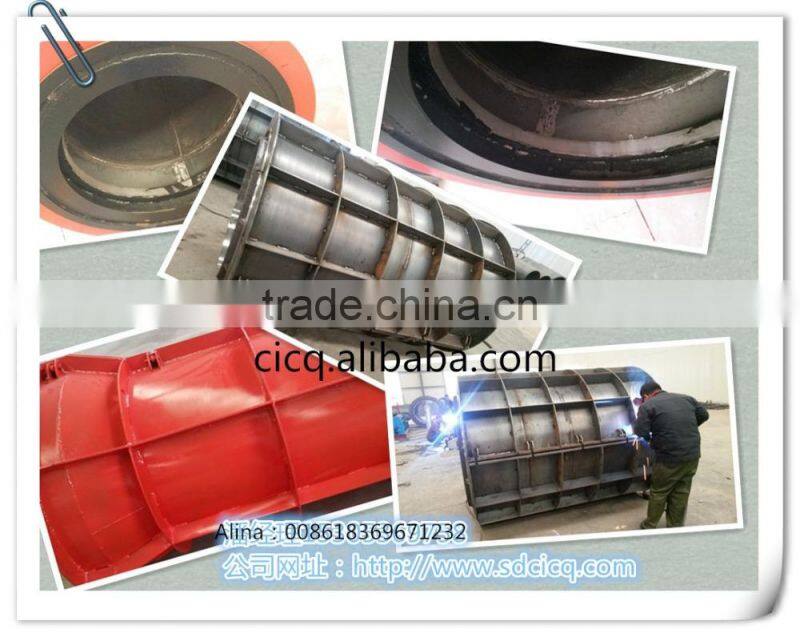

Concrete Cement Pipe Mould/hume pipes moulds/drainage pipe moulds

1.Easy mold-opening and installation.
2.Made of 45 steel
3.Good resistance.
4.Durable

1. Introduction of Concrete Pipe Mould

Concrete pipe mold fall into two types according to the way of connection of the shaped drain pipes: rigid joint and flexible joint; pipe mold fall into three types according to the joint shape of shaped drain pipes: plain top, tongue and groove, bell and spigot; pipe mold fall into Ⅰ,Ⅱ,Ⅲ grades according the grade difference of external pressure load of shaped drain pipes.

2. Features of Concrete Pipe Mould

2.1 The adoption of integrated design is reinforced design of leakproof slurry, no rough edges on which the mouth of pipe joints, easy mold-opening.

2.2 The friction rings in the molds are all made of 45 cast steel.

2.3 The steel plate we use is produced by Laigang which is one of the four major steel mills, and its abrasion resistance will be guaranteed.

2.4 The carbon-dioxide arc welding is applied into the all welding. The plasma cutting machine is used for cutting. Welding seam is smooth and nice, and the cutting seam is very exquisite. All above ensure the mold tough and durable and extend the service life greatly.

3. Technical Parameter of Prestressed Spun Concrete Pipe Moulds

Mold Diameter(mm)	Cylinder Thickness	Hooped, Longitudinal Reinforcement
300~600	6mm	8mm×60mm
800~1000	8mm	10mm×80mm
1200~1500	10mm	12mm×120mm
1500~2000	10mm	14mm×150mm

Company Information

located in the famous Haight Kyushu, one of the ancient historical and cutural city-Qingzhou city, with convenient transportation.

Founded in 2006, we are a professional manufacturer engaged in concrete poles/pipes making machine design, manufacture, installation and matainance. And in 2010 invest 80 million RMB to build a new plant., now the company covers an areaof 148 acres, with 140million yuan fixed assets. employee 302 people,.

Four large standard modern workshop equip with superior production equipment, complete testing equipment, more than 140 sets mordern equipement effectively gurantee the performance and quality.

we can supply the whole sets of concrete poles/pipes making equipments.

Concrete Pipes product line wiht complete set of equipment:

1. Concrete Mixers (rotary-drum-type, double-horizontal-shaft);

2. Concrete Batchers;

3. Concrete Mixing/Batching Plants (25-480m3/h, stationary, mobile, conventional-type, compact-type, simple-type, commercial-type);

4.Electiric pole making mould (8M-18M, round/square)

5.Well pipes and drain pipes making mould(2m,4m,8m)
