Round Conical Concrete Pole Steel Mould

FOB Price

US$ 1,500 - 1,500 / Set

1 Set(Min. Order)

Port Qingdao
Payment TermsT/T Money Gram Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shandong, China	Brand Name	CICQ
Shaping Mode	Punching Mold	Product Material	Steel
Product	Other

Product Description

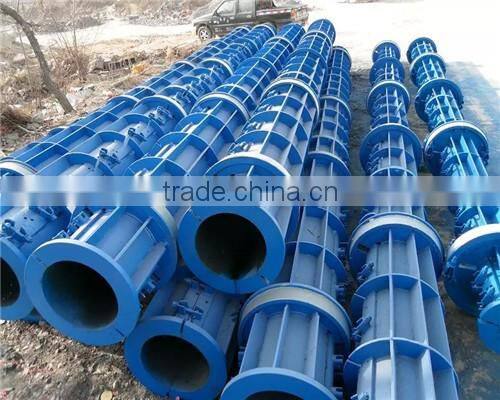

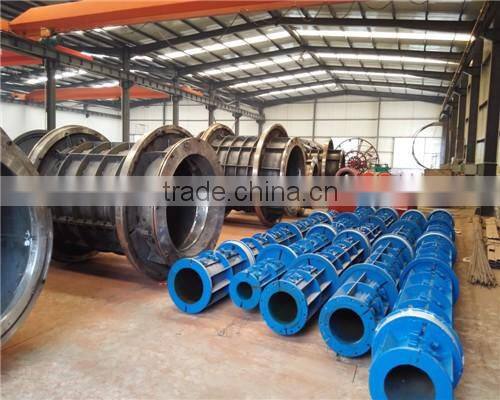

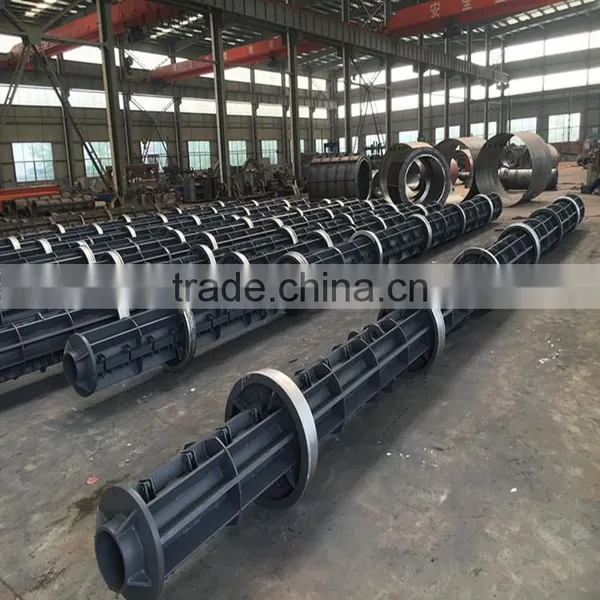

The electric pole mould is made by pressing steel board,with longitude and circular bar on the cylinder body.the mould has strong rigidity and long life span.it's segmented processing and overall assembly,thus it remain the advantage of convenient transportation,assembly fast and easy maintenance,etc.This steel mould may be used to produce both prestress and non-prestress concrete pole.

WhatsApp:15318906257 please add me.

Detailed technical paramters:

Type	Top diameter(mm)	Length(m)	Diameter of running	Wheel tread(mm)
Conical pole mould	100	6-7	2000	2000
	130	6-8	800	2000
	150	6-10	500	2000
	190	7-15	600	2000
	230	6-12	600	2000
	270	6-10	600	2000
	310	6-9	600	2000
	390	6-9	600	2000
Equal diameter pole mould	300	4.5-9	600	2000
	400	4.5-9	600	2000
	500	4.5-9	600	2000
Raw materials / thickness of concrete pole mould
Mould body	Circular bar	Longitude bar	Flange	Wheel
Q345/8mm	Q235/10mm	Q235/12mm	Q235/ 30mm	Casting steel
