Complete concrete electric pole production line
1. We're professional manufacturer of concrete pole machine & matching equipment, supply complete production equipment such as tensioning machine, winding machine, button head machine, straightening machine, boiler, concrete mixer, cranes and other accessories.
2. Spinning time: 16-20min for one pole (low speed--medium speed--high speed)
3. Pole machine wheel span: 2m/unit
4. Curing time or natural drying: 4 hours (durable, anti-crack)
5. We provide installation, commissioning, trainning, and log life mold maintenance

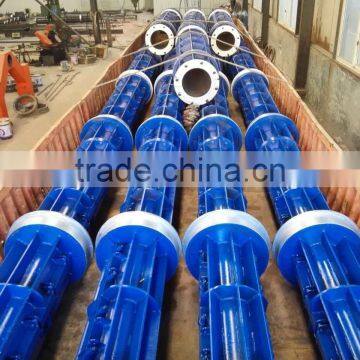

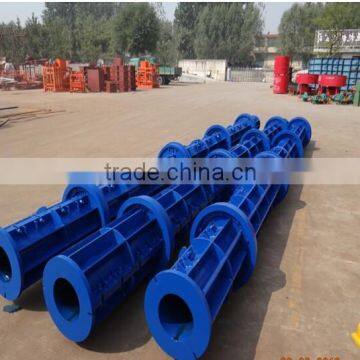

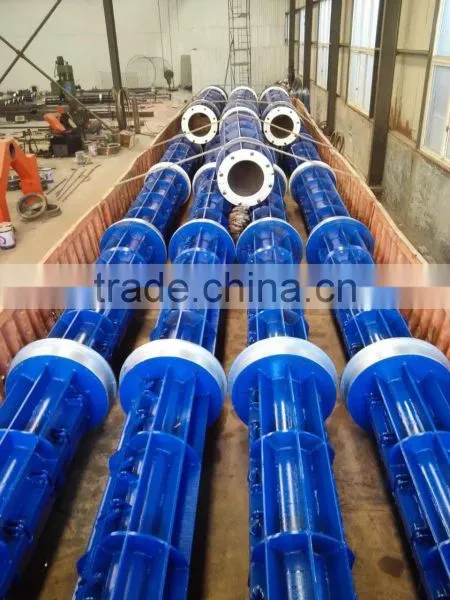

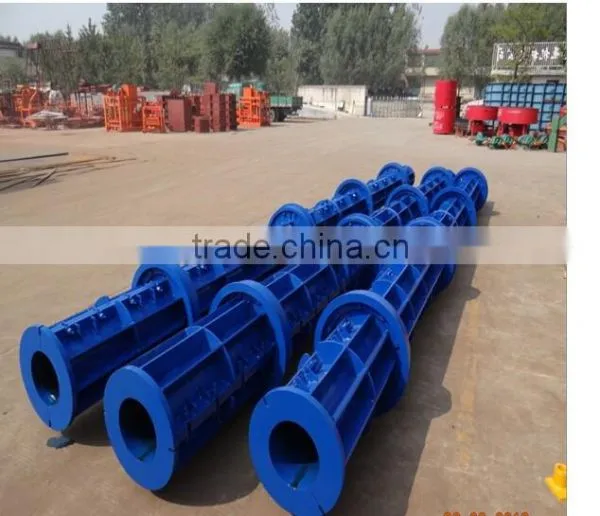

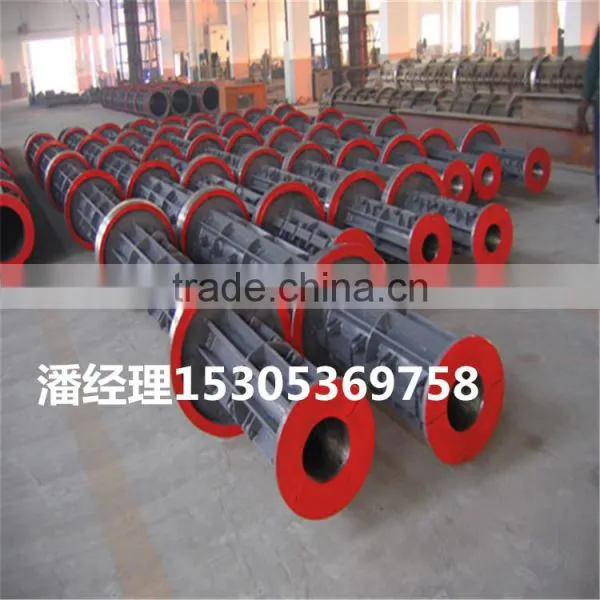

Title: Pre-stressed Electric Concrete Pole Spinning machine and mould
Centrifugal Spinning pole Machine is consist of running wheels, and the bearing seats. equipped with variable frequency motor and automatic control PLC panel.
the wet concrete will be feeding into concrete pole mould, the mould with support wheel will be droved by the running wheel, and rotate at a high speed. the concrete will be distributed in the inner mould under the centrifugal force, the extra water will be discharged out of the mould , and concrete will become more solid and stronger during the different speed.
| Pole Mold Diameter (mm) | Spinning wheel pitch(mm) | Running wheel diameter (mm) | Mold Length (m) |
| 150 | 2000 | 600 | 7-12 |
| 170 | 2000 | 600 | 7-12 |
| 190 | 2000 | 650 | 7-15 |
| 230 | 2000 | 650 | 6-9 |
| 300 equal diameter | 2000 | 600 | 6-9 |
| 350 equal diameter | 2000 | 650 | 6-12 |
| 30 | 2000 | 650-780 | 6-15 |
OUr foreign visitor
About our company
Qing Zhou CICQ industry limited company is China supplier and manufacturer, fabricating concrete pole machines, concrete pipe machines. Our equipments comply with International Standard and can customize according to the standards of other country. Our products are widely used all over Africa, Middle Asia and South-Asia. We can provide all sizes of moulds. Our products got certification of international quality system. We are devoting to producing minimize industrial wastes which helpful environmental protection. We can meet your different requirement meanwhile guarantee the quality of products. Sincerely welcome to our company.
