Product Description
We specilize in water pump for many years, which has enjoyed great popularity in world market.This kind of chemical pump is designed for maritime with 168F engine, which can work efficiently and stably.

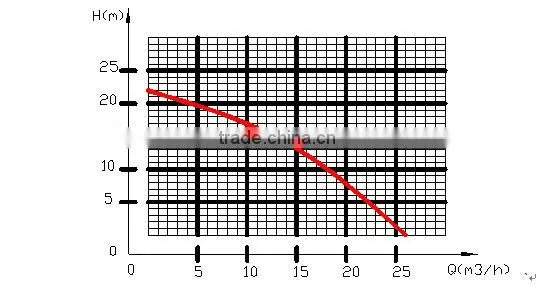

Performance curve
Parameter
ITEM |
FTB50 |
Outlet Size(mm) |
50 |
Inlet Size(mm) |
50 |
Speed(rpm) |
3600 |
Displacement Q.max(m3/h) |
25 |
Lift H.max(m) |
22 |
Suction(m) |
7 |
Engine Model |
168F |

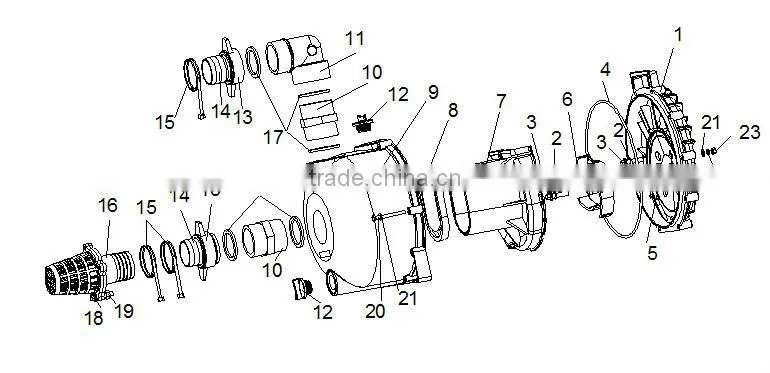

Serial number |
Name
|
Number
|
1 |
Water pump cover |
1 |
2 |
Rubber ring φ12×φ6×3.1 |
4 |
3 |
Bolt M8×35 |
4 |
4 |
Pump sealing ring |
1 |
5 |
Mechanical seal / ceramic |
1 |
6 |
Impeller |
1 |
7 |
Eddy shell |
1 |
8 |
Eddy shell sealing ring |
1 |
9 |
Water pump body |
1 |
10 |
Inlet joint |
2 |
11 |
The water outlet joint |
1 |
12 |
Threaded plug pump |
2 |
13 |
Pipe joint connecting nut |
2 |
14 |
Pipe joint |
2 |
15 |
Clamp |
3 |
16 |
Filter cover |
1 |
17 |
Pipe joint sealing gasket |
2 |
18 |
Bolt M8×35 |
2 |
19 |
Nut M8 |
2 |
20 |
BoltM6×65 |
10 |
21 |
Shim |
20 |
22 |
Spring pad |
10 |
23 |
Nut M6 |
10 |
Features:
1.Good engine will be used and lightweight die-cast aluminum pump delivers high volume of water.
2.The highly effective mechanical seal with special carbon ceramics provide extra durability.
3.The entire unit is protected by a sturdy rollover pipe frame.
4.Guaranteed suction head of 7 meters.
Quality Control:
1: On line inspection, we perform 100% on line inspection during production not to release any problem during production.
2: 100% inspection on each finished products.
3: Customer’s own inspection.
4: Third party inspection.
5: Testing: UT, PT, MT, X-ray testing etc.
6: GB/T6402-91, JB4730-2000, JB4726-2000, JB4727-2000, JB4728-2000 and JB/T5000.8-1998.

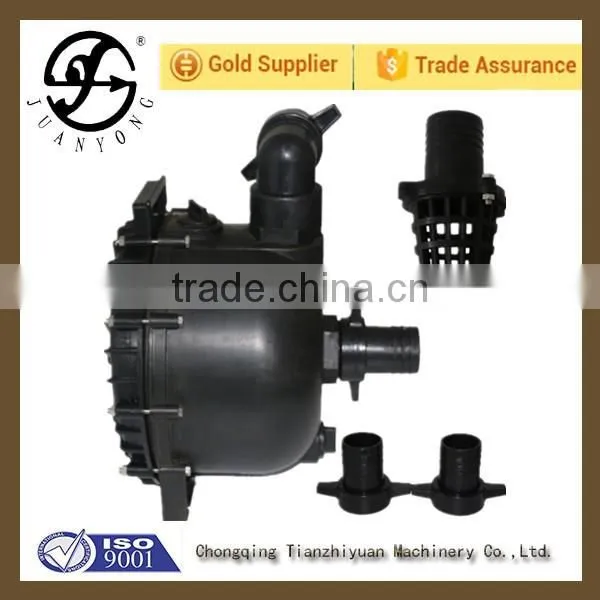

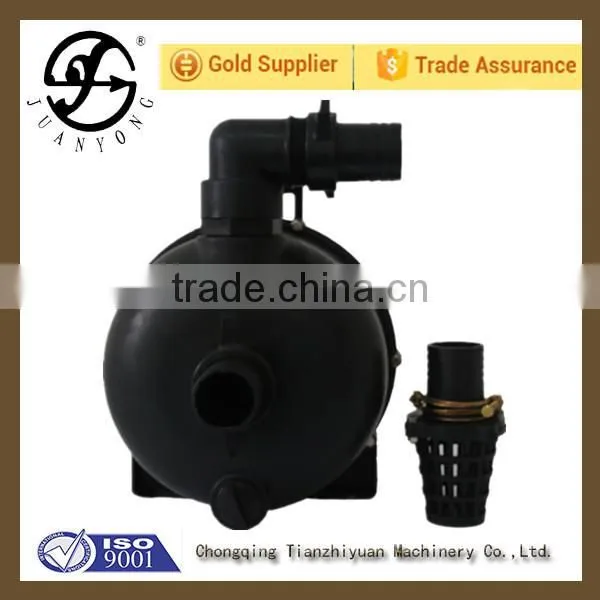

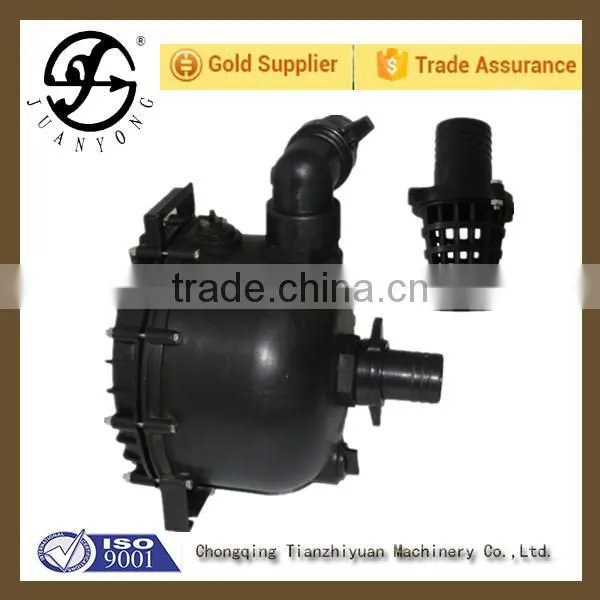

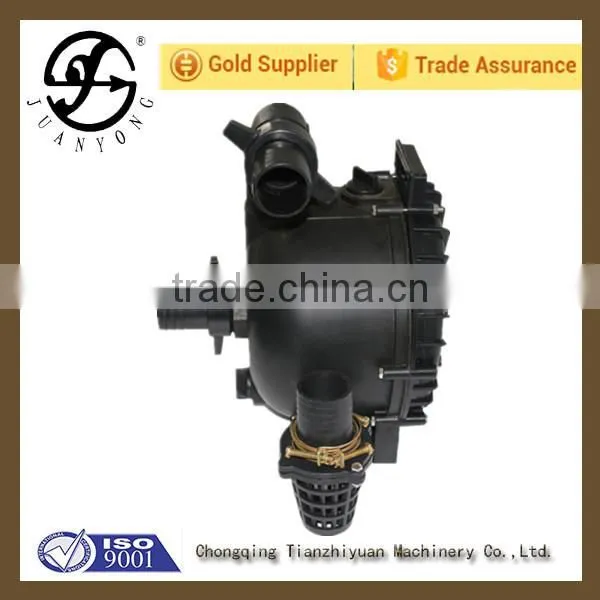

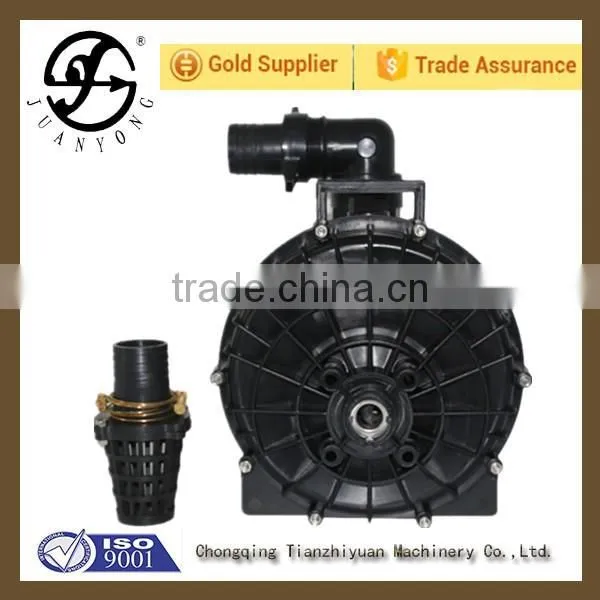

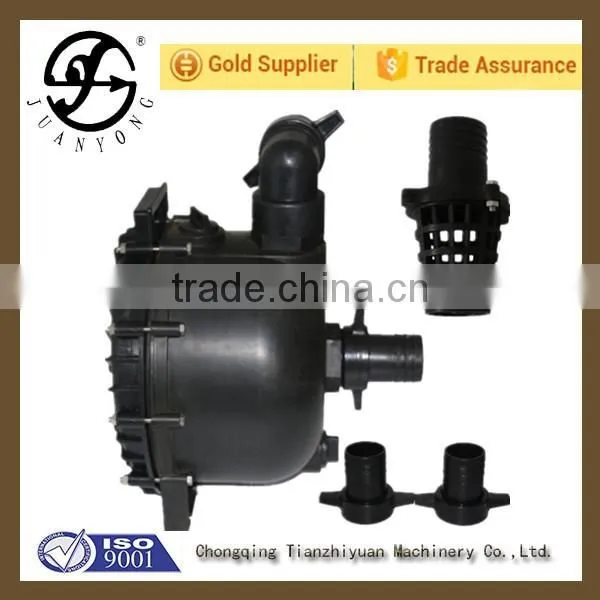

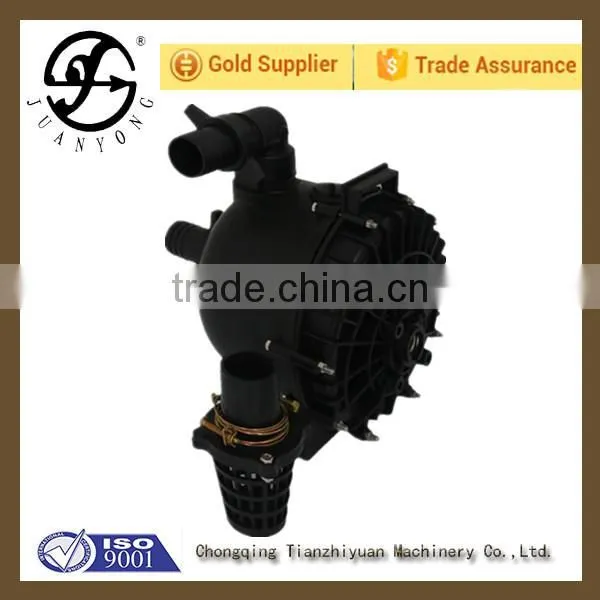

Product Image
Company Information
Tianzhiyuan Machinery Company has been in water pumps industry close to 7 years. Tianzhiyuan provide self-priming water pumps for a wide range of water supply applications- agricultural irrigation, orchard cultivation, drinking water, forestry and firework. Put our advance water pumps and innovation to the world. Tianzhiyuan Machinery Company within concentrated operation of self-priming water pump, include farm irrigation high lift self priming pump, water pumps with 2-6 inches, self priming clear water pump, self priming dirty pumps, high lift water pump, chemical pump/ agriculture irrigation water pump, sewage water pump and related machine components. Tianzhiyuan water pumps have been sold to more than 40 countries all over the world.
Product Certification
