Product Description
We specilize in water pump for many years, which has enjoyed great popularity in world market.This kind of self priming water pump is designed for home car wash with 152F engine, which can work efficiently and stably.
Features:
1. buen motor va a ser utilizado y ligero morir- fundidode aluminiola bomba proporciona altaEl volumen de agua.
2. el sello mecánico muy eficaz con especial de cerámica de carbono proporcionan una mayor durabilidad.
3. toda la unidad está protegido por una resistente rollover marco de tubo de.
4. garantizada la cabeza de succión de 7 metros.
Performance curve
Parameter
ITEM |
WP40A |
Outlet Size(mm) |
40 |
Inlet Size(mm) |
40 |
Speed(rpm) |
3600 |
Displacement Q.max(m3/h) |
12 |
Lift H.max(m) |
15 |
Suction(m) |
7 |
Engine Model |
152F |
Serial number |
Name
|
Number
|
1 |
Water pump cover |
1 |
2 |
nut M14 |
1 |
3 |
Bolt M6×25 GB5787 |
4 |
4 |
Pump sealing ring |
1 |
5 |
Mechanical seal / ceramic |
1 |
6 |
Impeller |
1 |
7 |
Eddy shell |
1 |
8 |
Eddy shell sealing ring |
1 |
9 |
Water pump body |
1 |
10 |
Outlet gasket |
1 |
11 |
The water outlet joint |
1 |
12 |
Bolt M6 |
8 |
13 |
Bolt M6×55 |
6 |
14 |
Threaded plug pump |
2 |
15 |
Inlet sealing gasket |
1 |
16 |
Inlet joint |
1 |
17 |
Pipe joint sealing gasket |
2 |
18 |
Pipe joint connecting nut |
2 |
19 |
Pipe joint |
2 |
20 |
Clamp( |
3 |
21 |
Filter cover |
1 |
22 |
The handle |
1 |
23 |
Connecting flange |
1 |

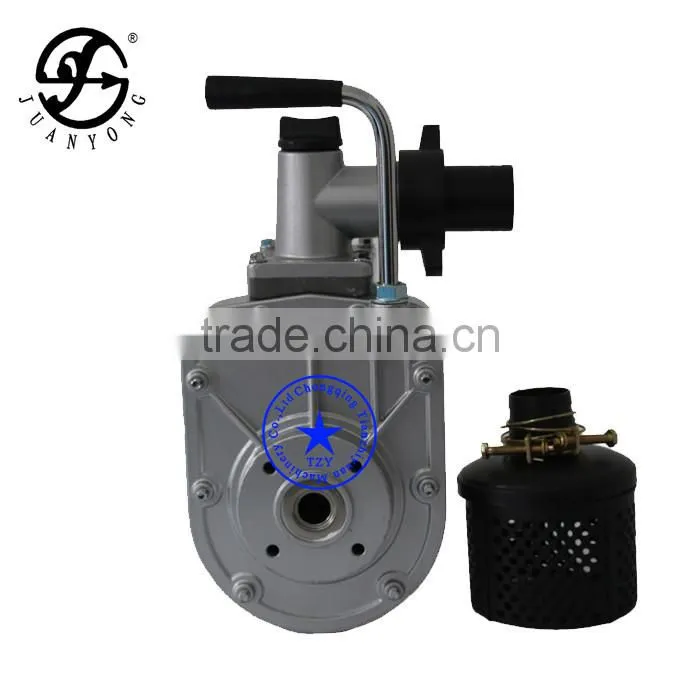

Product image
Quality Control:
1: On line inspection, we perform 100% on line inspection during production not to release any problem during production.
2: 100% inspection on each finished products.
3: Customer’s own inspection.
4: Third party inspection.
5: Testing: UT, PT, MT, X-ray testing etc.
6: GB/T6402-91, JB4730-2000, JB4726-2000, JB4727-2000, JB4728-2000 and JB/T5000.8-1998.
Advantages we have:
A. Experienced slate products supplier.
B. Professional design team and sales department for your service.
C. Alibaba golden supplier, factory recognized by "CE/IS9001"and so no.
D. 7/24 service for you all the question will be dealed within 24 hours.
Benelit you got:
A. stable quality-coming from good material and technic.
B. lower price-not cheapest but the lowest at the same quality.
C. good service-satisfactory service before and after sale.
D. delivery time10-15 days for mass production.
Company Information
Tianzhiyuan Machinery Company has been in water pumps industry close to 7 years. Tianzhiyuan provide self-priming water pumps for a wide range of water supply applications- agricultural irrigation, orchard cultivation, drinking water, forestry and firework. Put our advance water pumps and innovation to the world. Tianzhiyuan Machinery Company within concentrated operation of self-priming water pump, include farm irrigation high lift self priming pump, water pumps with 2-6 inches, self priming clear water pump, self priming dirty pumps, high lift water pump, chemical pump/ agriculture irrigation water pump, sewage water pump and related machine components. Tianzhiyuan water pumps have been sold to more than 40 countries all over the world.
