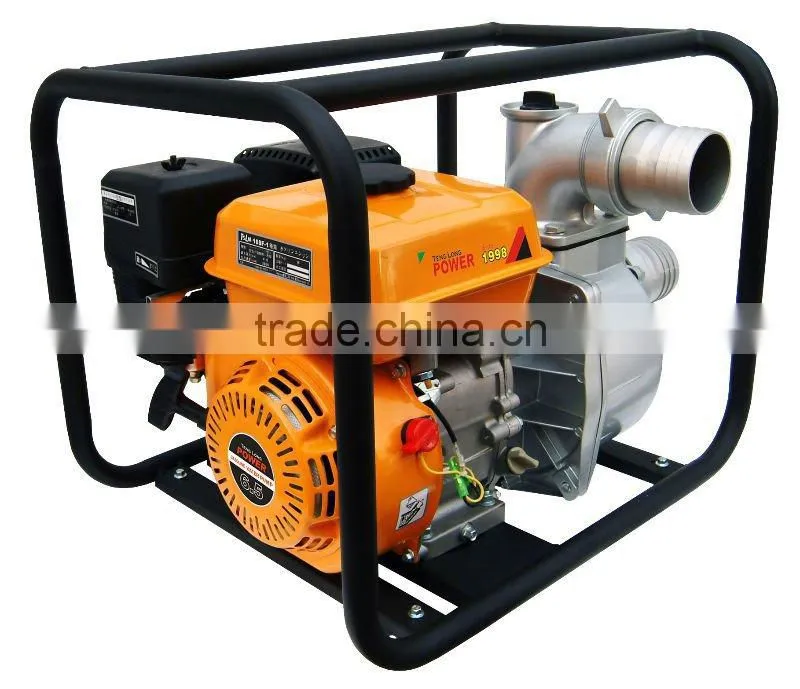

Manual water pump for bottled water Self priming Water Pump for agriculture irrigation
Product Description
We specilize in water pump for many years.Our products have been sold to main domestic markets and exported to the Europe,North American,African,South American and Southeast Asian countries.Which has enjoyed great popularity in world market.This kind of self priming water pump is designed for irrigation with 6.5 hp gasoline engine,which can work efficiently and stably.
Performance curve
Parameter
ITEM | WP80 |
Outlet Size(mm) | 80 |
Inlet Size(mm) | 80 |
Speed(rpm) | 3600 |
Displacement Q.max(m3/h) | 50 |
Lift H.max(m) | 28 |
Suction(m) | 7 |
Engine Model | 168F |
Serial number | Name | Number |
1 | Water pump cover | 1 |
2 | Aluminum flat washer φ8×φ16×1.5 | 4 |
3 | Bolt M8×65 GB5787 | 4 |
4 | Pump sealing ring | 1 |
5 | Mechanical seal / ceramic | 1 |
6 | Impeller | 1 |
7 | Eddy shell | 1 |
8 | Eddy shell sealing ring | 1 |
9 | Water pump body | 1 |
10 | Outlet gasket | 1 |
11 | The water outlet joint | 1 |
12 | BoltM10 | 11 |
13 | Rubber plug gasket | 2 |
14 | Threaded plug pump | 2 |
15 | Inlet sealing gasket | 1 |
16 | Inlet joint | 1 |
17 | Pipe joint sealing gasket | 2 |
18 | Pipe joint connecting nut | 2 |
19 | Pipe joint | 2 |
20 | Clamp | 3 |
21 | The filtering orifices | 1 |
22 | Filter cover | 1 |

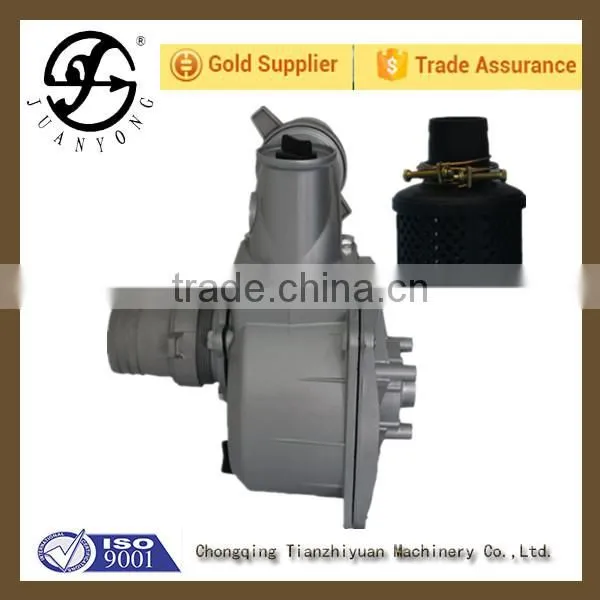

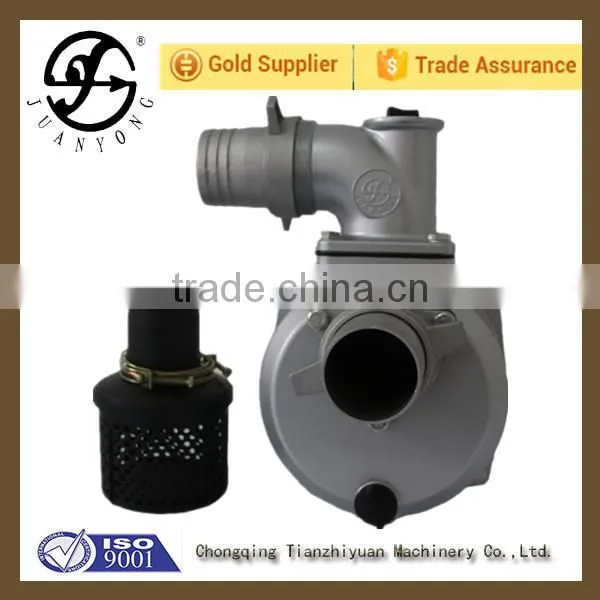

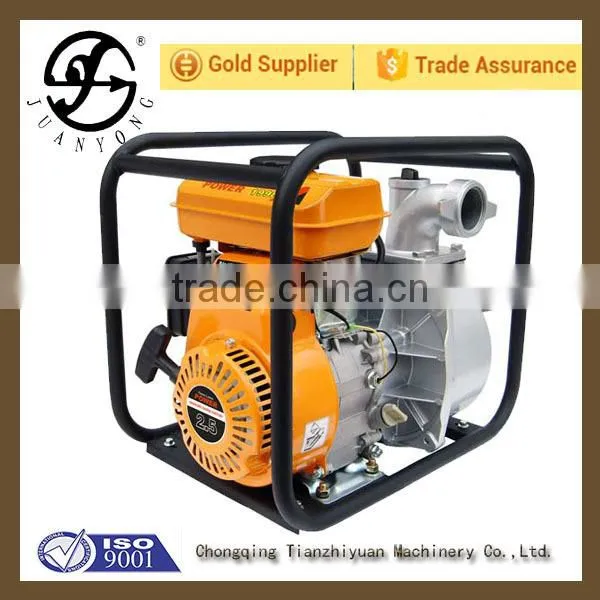

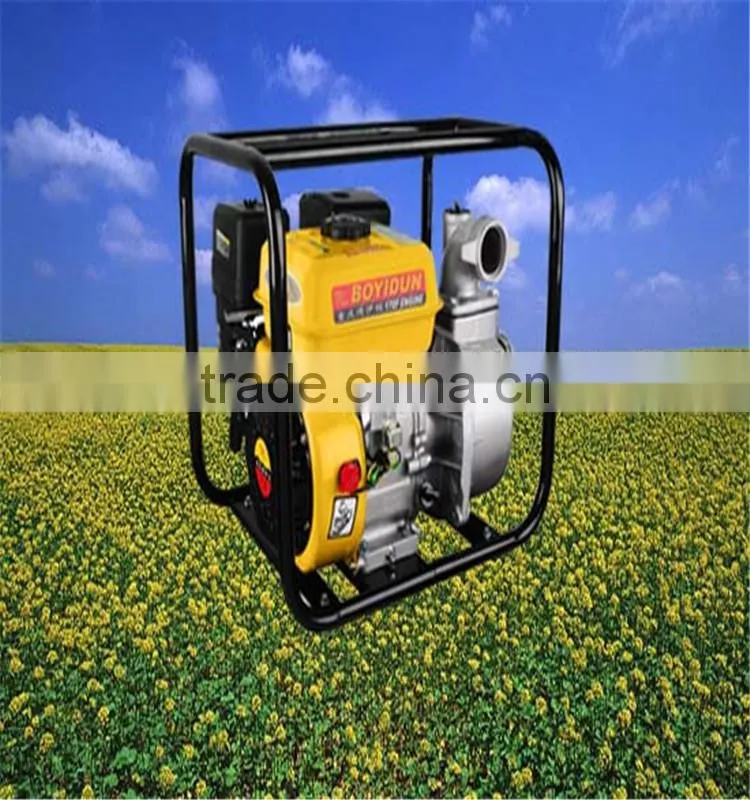

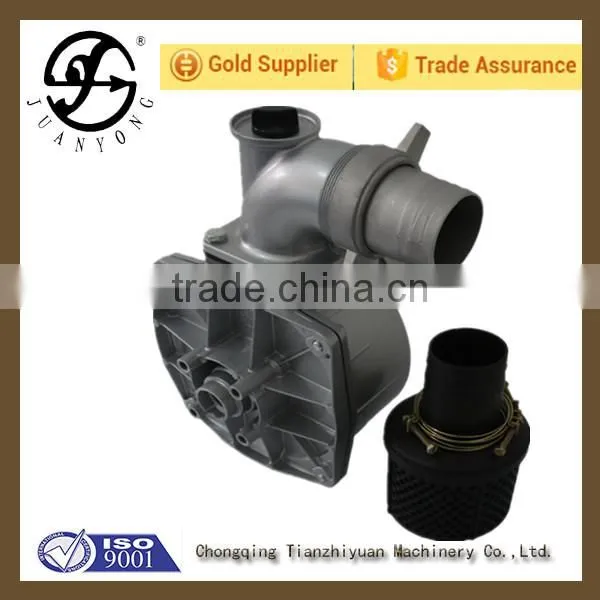

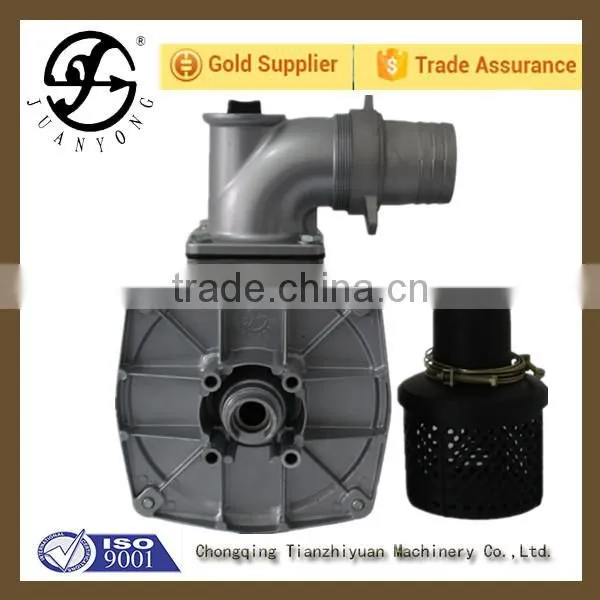

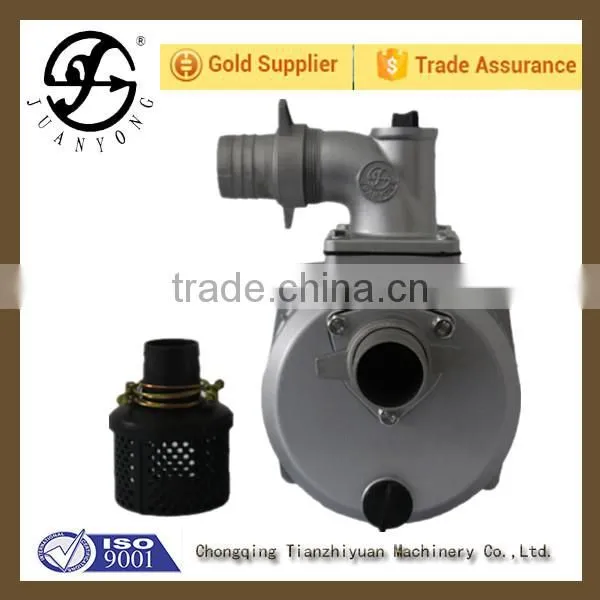

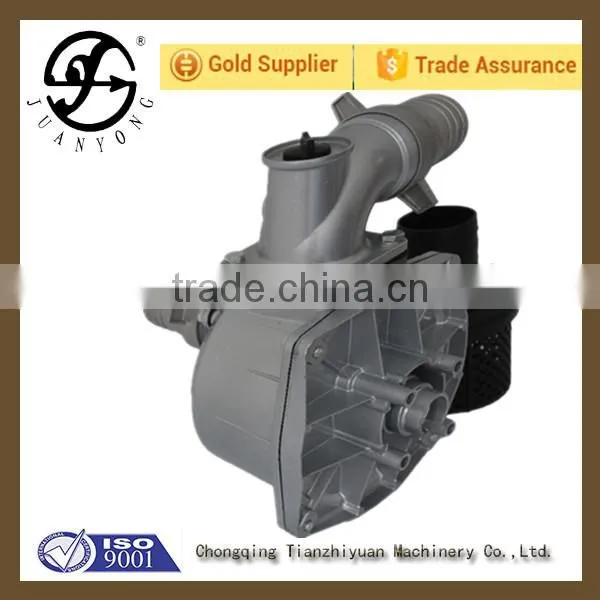

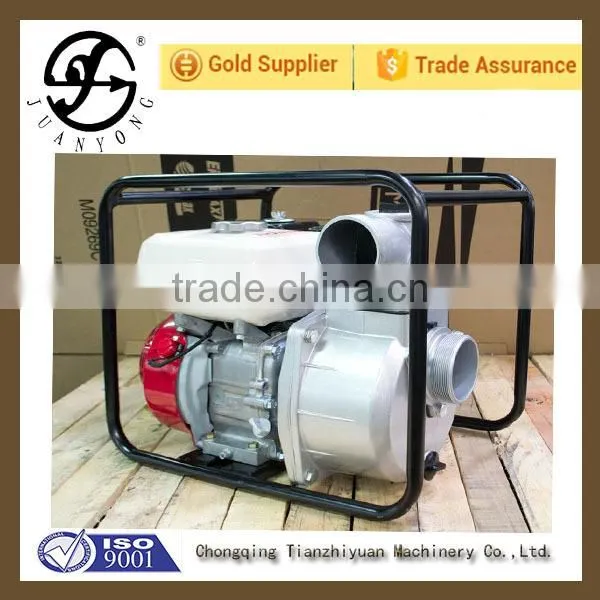

Product Image
Application
- Applies to high pressure washer .
- Applies to garden for cleaning and watering, and also for fog system.
- Applies to large fire scene.
- Applies to agriculture irrigation.
- Applies to water supply and drainage in factory. power station.
- Applies to transporting pure water or liquids with physical and chemical properties similar to water.
Why Choose Us
- Alibaba golden supplier, factory recognized by "CE/IS9001"and so on
- We are a factory manufacturing pump,best production capability ,best quality
- Professional design team and sales department for your service.
- Free and quick technical guidance will be offered to buyers in 12 hours always.
- We have established stable cooperation with major customers in the US, Canada, Italy and Germany.
Our Service
We can make sample according to your requirement.
We can supply OEM production.
We also accept small orders.
We reply you in a very short time.
We provide high quality products.
We can guarantee the delivery time
We are looking forward to building a long-standing business relationship on the basis of equality and mutual benefits
Factory Photo
FAQ
1.Q:Are you a manufactory or trading company?
A:We are water pump manufactory with more than seven years production experience,welcome to visit our factory.
2.Q:What's your MOQ?
A:Trial sample order is ok.
3.Q:What's ypur payment terms
A:T/T 30% payment in advance,70% pay it when we send all goods after.
Product Certification
