ITEM |
WB100 |
Outlet Size(mm) |
100 |
Inlet Size(mm) |
100 |
Speed(rpm) |
3600 |
Displacement Q.max(m3/h) |
68 |
Lift H.max(m) |
20 |
Suction(m) |
5 |
Engine Model |
190F |

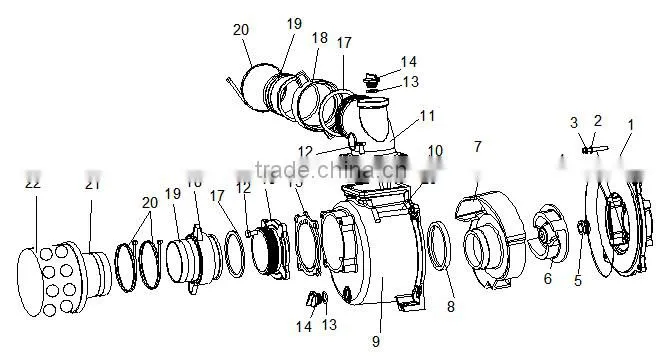

Serial number |
Name |
Number |
1 |
Water pump cover |
1 |
2 |
Aluminum flat washer φ8×φ16×1.5 |
5 |
3 |
Bolt M8×45 GB5787 |
4 |
4 |
Pump sealing ring |
1 |
5 |
Mechanical seal / ceramic |
1 |
6 |
Impeller |
1 |
7 |
Eddy shell |
1 |
8 |
Eddy shell sealing ring |
1 |
9 |
Water pump body |
1 |
10 |
Outlet gasket |
1 |
11 |
The water outlet joint |
1 |
12 |
Bolt M10×30 |
8 |
13 |
Rubber plug gasket |
2 |
14 |
Threaded plug pump |
2 |
15 |
Inlet sealing gasket |
1 |
16 |
Inlet joint |
1 |
17 |
Pipe joint sealing gasket |
2 |
18 |
Pipe joint connecting nut |
2 |
19 |
Pipe joint |
2 |
20 |
Clamp |
3 |
21 |
The filtering orifices |
1 |
22 |
Filter cover |
1 |
23 |
T bolt |
4 |
Accesseries Installation Diagram
Advantages we have:
A. Experienced slate products supplier.
B. Professional design team and sales department for your service.
C. Alibaba golden supplier, factory recognized by "CE/IS9001"and so no.
D. 7/24 service for you all the question will be dealed within 24 hours.
Benelit you got:
A. stable quality-coming from good material and technic.
B. lower price-not cheapest but the lowest at the same quality.
C. good service-satisfactory service before and after sale.
D. delivery time10-15 days for mass production.
