Home > Industrial Equipment & Components > Pump & Vacuum Equipment > Water Pump > Juanyong Brand 4 Inch Self Priming Dirty Water Suction Pump

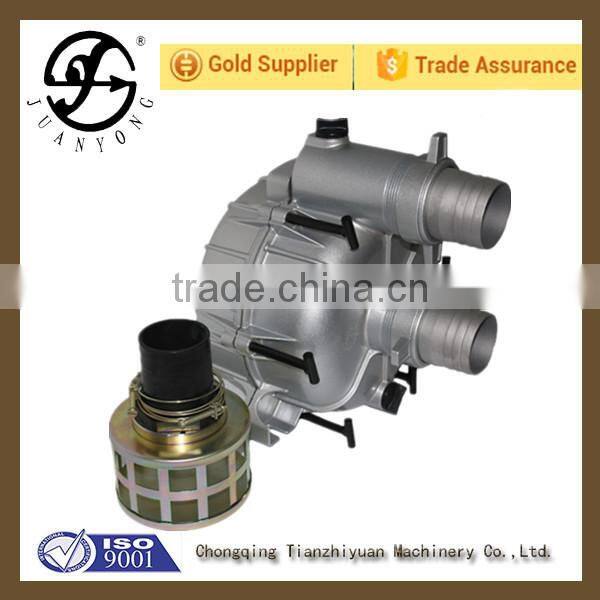

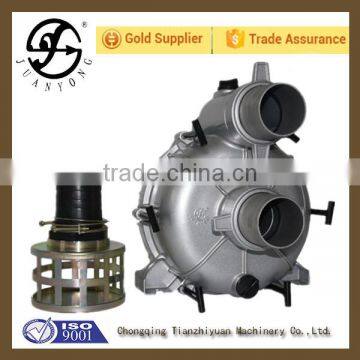

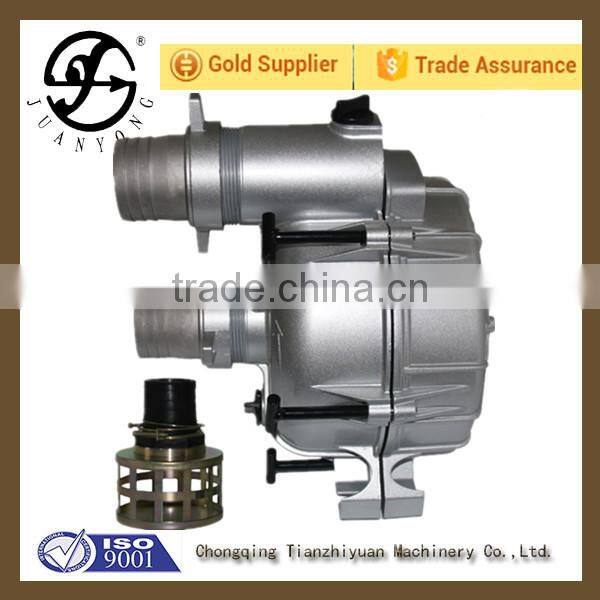

Juanyong Brand 4 Inch Self Priming Dirty Water Suction Pump

Name: Juanyong Brand 4 Inch Self Priming Dirty Water Suction Pump
Brand: JUANYONG
SKU: 141986470
Availability: InStock

US$ 60 - 70 MOQ: 5 Sets

Key Specifications

Get Latest Price

Place of Origin:

Chongqing, China

Brand Name:

JUANYONG

Model Number:

WB100

Contact Supplier Request Quote Chat Now

Chongqing Tianzhiyuan Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai or Chongqing Port

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Chongqing, China

Brand Name JUANYONG

Model Number WB100

Theory Centrifugal Pump

Structure Multistage Pump

Usage Water

Power Hydraulic

Standard or Nonstandard Standard

Fuel Gasoline

Pressure Low Pressure

Application Sewage

Product Description

4 inch dirty water pump

Quality Control:
1: On line inspection, we perform 100% on line inspection during production not to release any problem during production.
2: 100% inspection on each finished products.
3: Customer’s own inspection.
4: Third party inspection.
5: Testing: UT, PT, MT, X-ray testing etc.
6: GB/T6402-91, JB4730-2000, JB4726-2000, JB4727-2000, JB4728-2000 and JB/T5000.8-1998.

Specifications of 4 Inch Sewage Pump

Item	WB100
Inlet Size(mm)	100
Outlet Size(mm)	100
Speed(rpm)	3600
Displacement Q.max(m³/h)	68
Lift H.max(m)	20
Suction(m)	5
Engine Model	190F

Performance Curve

Water Pump Part List

No.	Name	Number
1	water pump cover	1
2	Aluminum flat washer Φ8×φ16×1.5	4
3	Bolt M8×60 GB5787	4
4	Pump sealing ring	1
6	mechanical seal/ceramic	1
7	Impeller	1
8	Eddy shell	1
9	Eddy shell sealing ring	1
10	water pump body	1
11	Outlet gasket	1
12	The water outlet joint	1
13	Bolt M8	12
14	Rudder plug gasket	2
15	Threaded plug pump	2
16	Inlet sealing gasket	1
17	Inlet joint	1
18	Pipe joint sealing gasket	2
19	Pipe joint connecting nut	2
20	Pipe joint	2
21	Clamp	3
22	The filtering orifices	1
23	filter cover	1

Image of Water Pump

Factory Pictures

Our Service

Chongqing Tianzhiyuan Machinery Co.,Ltd. is a professional manufacturer of water pumps in China and we will provide 24 hours services for customer. If you have any needs or technque question, you can choose by online talk or call us directly.
