petrol engine driven self priming effluent pumps

FOB Price

USD $65 - $70 / Set

5 Sets(Min.Order)

Supply Ability 1500 Set / Sets per Month
Port Shanghai or Chongqing Port
Payment Terms:T/T

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:	Chongqing, China	Brand Name:	JUANYONG	Model Number:	WB100
Theory:	Centrifugal Pump	Structure:	Multistage Pump	Usage:	Water
Power:	Hydraulic	Standard or Nonstandard:	Standard	Fuel:	Gasoline
Pressure:	Low Pressure	Application:	Sewage

Product Description

Introduction of 4 Inch Sewage Pump

We specilize in water pump for many years, which has enjoyed great popularity in world market.This kind of sewage pump is designed for iindustry usage with 190F engine, which can work efficiently and stably.

Quality Control:
1: On line inspection, we perform 100% on line inspection during production not to release any problem during production.
2: 100% inspection on each finished products.
3: Customer’s own inspection.
4: Third party inspection.
5: Testing: UT, PT, MT, X-ray testing etc.
6: GB/T6402-91, JB4730-2000, JB4726-2000, JB4727-2000, JB4728-2000 and JB/T5000.8-1998.

Specifications of 4 Inch Sewage Pump

Item	WB100
Inlet Size(mm)	100
Outlet Size(mm)	100
Speed(rpm)	3600
Displacement Q.max(m³/h)	68
Lift H.max(m)	20
Suction(m)	5
Engine Model	190F

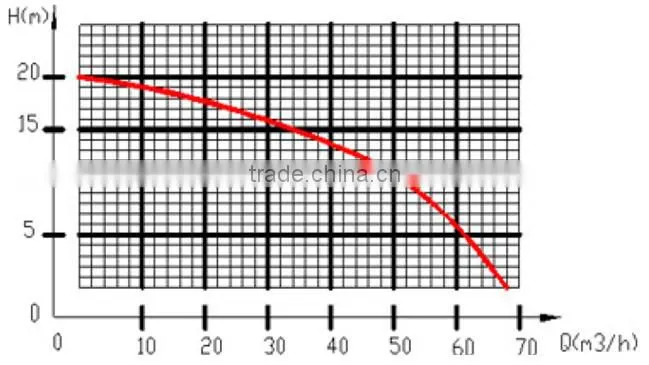

Performance Curve

Water Pump Part List

No.	Name	Number
1	water pump cover	1
2	Aluminum flat washer Φ8×φ16×1.5	4
3	Bolt M8×60 GB5787	4
4	Pump sealing ring	1
6	mechanical seal/ceramic	1
7	Impeller	1
8	Eddy shell	1
9	Eddy shell sealing ring	1
10	water pump body	1
11	Outlet gasket	1
12	The water outlet joint	1
13	Bolt M8	12
14	Rudder plug gasket	2
15	Threaded plug pump	2
16	Inlet sealing gasket	1
17	Inlet joint	1
18	Pipe joint sealing gasket	2
19	Pipe joint connecting nut	2
20	Pipe joint	2
21	Clamp	3
22	The filtering orifices	1
23	filter cover	1

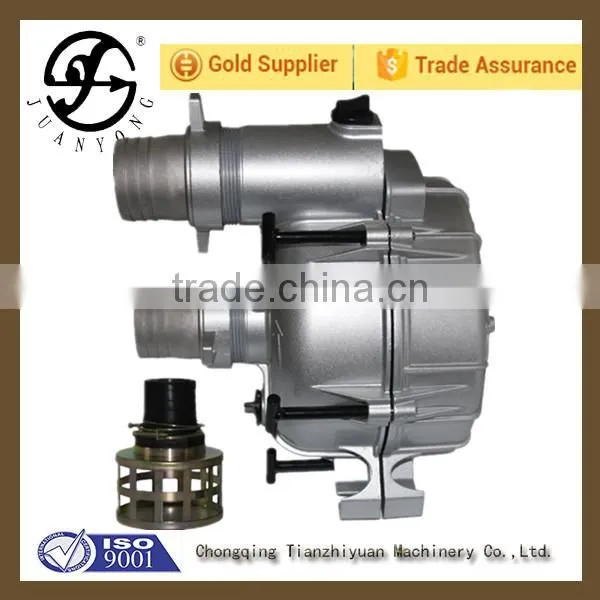

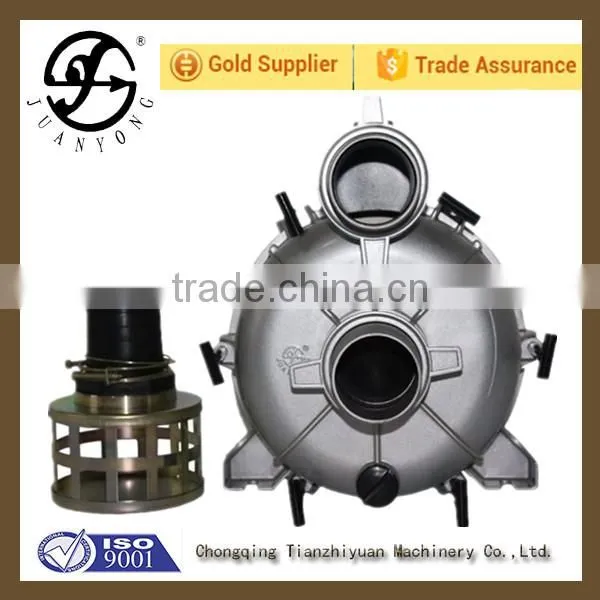

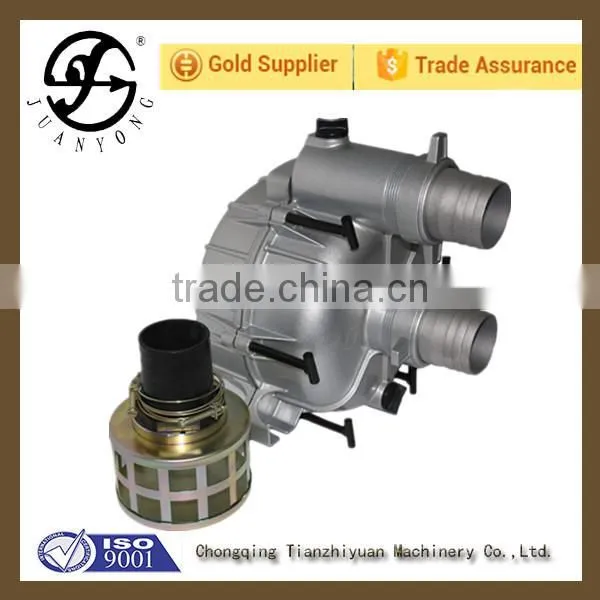

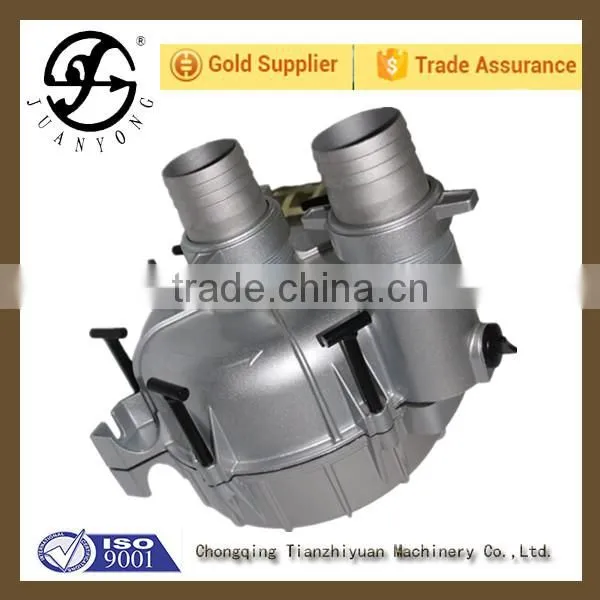

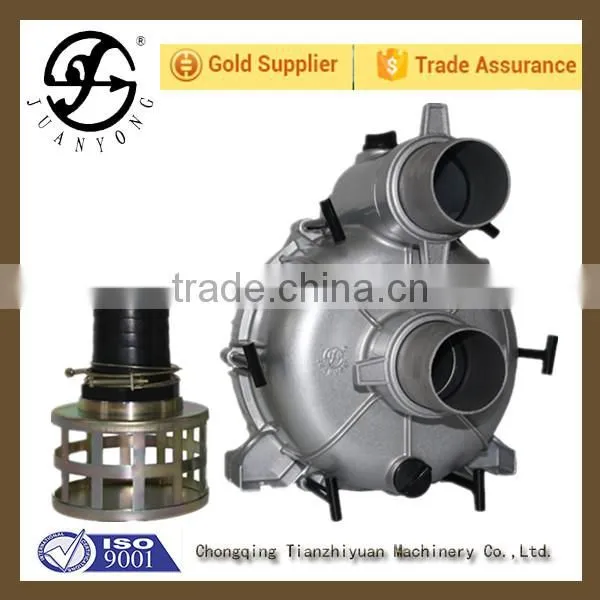

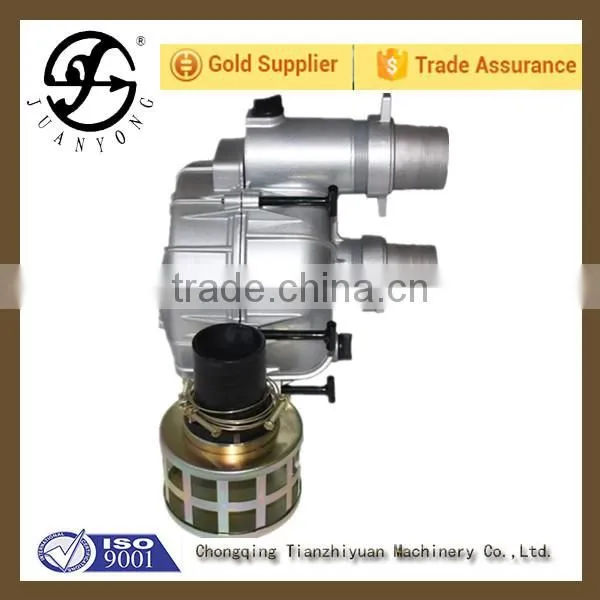

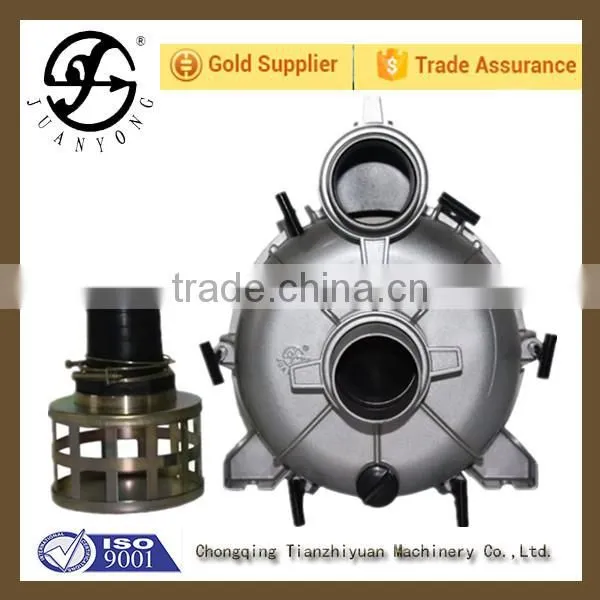

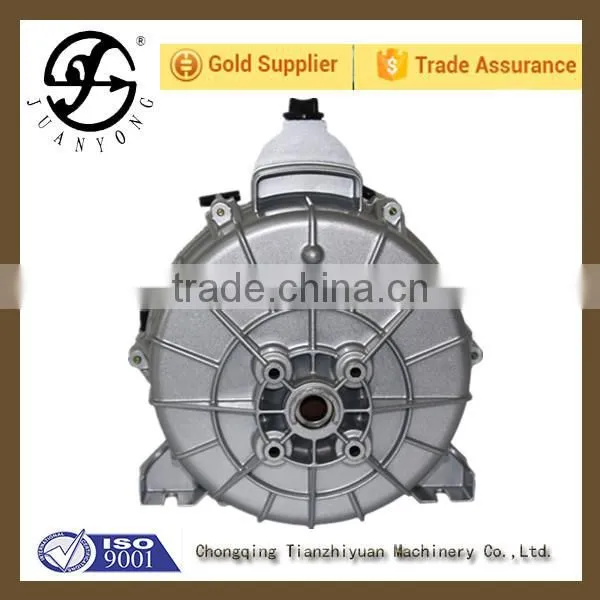

Image of Water Pump

FAQ

1.Q:Are you a manufactory or trading company?

A:We are water pump manufactory with more than seven years production experience,welcome to visit our factory.

2.Q:What's your MOQ?

A:Trial sample order is ok.

3.Q:What's ypur payment terms?

A:T/T 30% payment in advance,70% pay it when we send all goods after.
