Home > Products > Drag Water Pump > Juanyong Brand 3 Inch manual pressure farm irrigation lift pump
Juanyong Brand 3 Inch manual pressure farm irrigation lift pump
- 1500 Set / Sets per Month
- Chongqing port
- T/T
- MONO progressive block for prefabried concrete houses
- MONO progressive block for concrete pump spare parts
- MONO progressive block for ready mix concrete trucks
- MONO progressive block for concrete statue molds
- MONO progressive block for concrete columns mold
- MONO progressive block for gearbox for concrete mixer
Product Details
Place of Origin: | Chongqing, China | Brand Name: | JUANYONG | Model Number: | SU80 |
Theory: | Centrifugal Pump | Structure: | Single-stage Pump | Usage: | Water |
Power: | Hydraulic | Standard or Nonstandard: | Standard | Fuel: | Gasoline |
Pressure: | Low Pressure | Application: | Other, Agricultural Irrigation |
Product Description
Introduction of water pump
We specilize in water pump for many years, which has enjoyed great popularity in world market.This kind of drag pump is designed for irrigation with 168F engine, which can work efficiently and stably.
Quality Control:
1: On line inspection, we perform 100% on line inspection during production not to release any problem during production.
2: 100% inspection on each finished products.
3: Customer’s own inspection.
4: Third party inspection.
5: Testing: UT, PT, MT, X-ray testing etc.
6: GB/T6402-91, JB4730-2000, JB4726-2000, JB4727-2000, JB4728-2000 and JB/T5000.8-1998.
Main Specifications
Item | SU80 |
Inlet Size(mm) | 80 |
Outlet Size(mm) | 80 |
Speed(rpm) | 3600 |
Displacement Q.max(m3 /h) | 47 |
Lift H.max(m) | 30 |
Suction(m) | 7 |
Engine Model | 168F |
Features:
1.Good engine will be used and lightweight die-cast aluminum pump delivers high volume of water.
2.The highly effective mechanical seal with special carbon ceramics provide extra durability.
3.The entire unit is protected by a sturdy rollover pipe frame.
4.Guaranteed suction head of 7 meters.
Applications:
1.Sprinkling for field irrigation.
2.Irrigation of paddy fields.
3.Orchard calculation.
4.Pumping water from wells.
5.Feeding or draining water to /from ponds or troughs.
6.Feeding or draining water on fish farms.
7.Washing cattle,barns or agricultural tools.
8.Feeding water into water reservoirs.

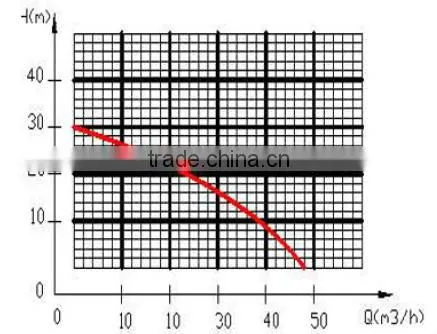

Performance Curve

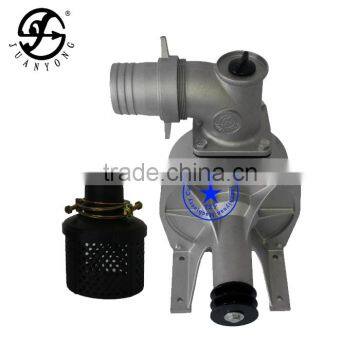

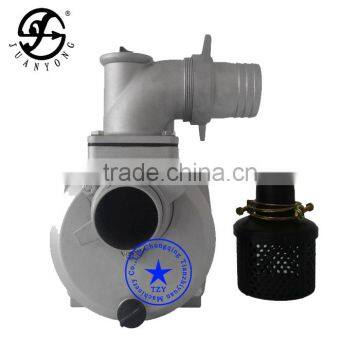

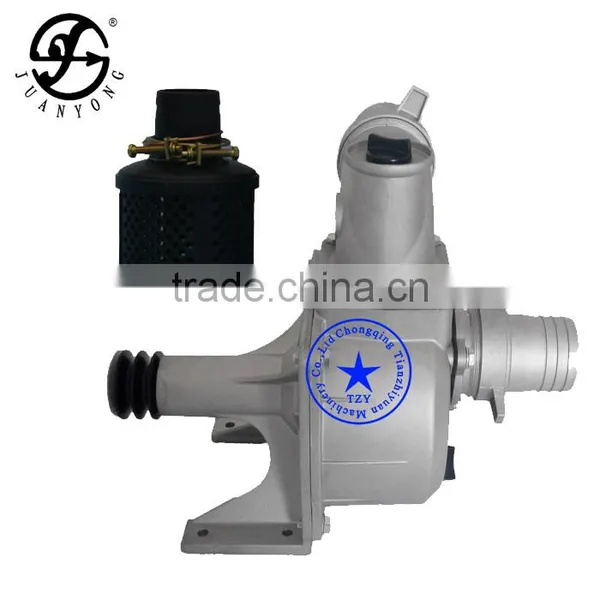

Image of Water Pump
Certificate of Tianzhiyuan Water Pump
Our Service
Chongqing Tianzhiyuan Machinery Co.,Ltd. is a professional manufacturer of water pumps in China and we will provide 24 hours services for customer. If you have any needs or technque question, you can choose by online talk
or call us directly.
FAQ
1.What’s your MOQ?
The sample order is OK.
2.What’s your payment terms?
T/T,L/C,D/A,D/P,etc.
3.What is the delivery time?
Standard sample 1 day.
