3 inch pulley pump farm irrigation centrifugal belt driven water pump
- 1500 Set / Sets per Month
- Chongqing port
- T/T
- MONO progressive block for prefabried concrete houses
- MONO progressive block for concrete pump spare parts
- MONO progressive block for ready mix concrete trucks
- MONO progressive block for concrete statue molds
- MONO progressive block for concrete columns mold
- MONO progressive block for gearbox for concrete mixer
Product Details
Place of Origin: | Chongqing, China | Brand Name: | JUANYONG | Model Number: | SU80 |
Theory: | Centrifugal Pump | Structure: | Single-stage Pump | Usage: | Water |
Power: | Hydraulic | Standard or Nonstandard: | Standard | Fuel: | Gasoline |
Pressure: | Low Pressure | Application: | Other, Agricultural Irrigation |
Product Description
Juanyong brand 3 inch belt driven pump
Main Specifications
Item | SU80 |
Inlet Size(mm) | 80 |
Outlet Size(mm) | 80 |
Displacement Q.max(m3 /h) | 47 |
Lift H.max(m) | 30 |
Suction(m) | 7 |
Engine Model | 168F |
Features:
1.3" suction/discharge ports
2.Belt driven pump
3.Rigid mounted cast iron volute and cast iron impeller
4.Strong die cast aluminium alloy
5.Guaranteed suction head of 7 meters.
6.One year warranty on pump
Applications:
1.Sprinkling for field irrigation.
2.Irrigation of paddy fields.
3.Orchard calculation.
4.Pumping water from wells.
5.Feeding or draining water to /from ponds or troughs.
6.Feeding or draining water on fish farms.
7.Washing cattle,barns or agricultural tools.
8.Feeding water into water reservoirs.
Performance Curve

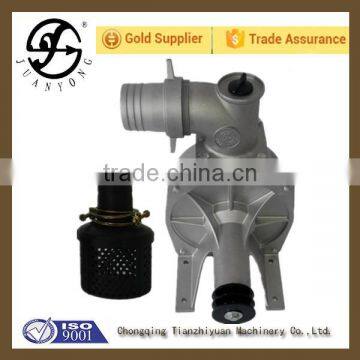

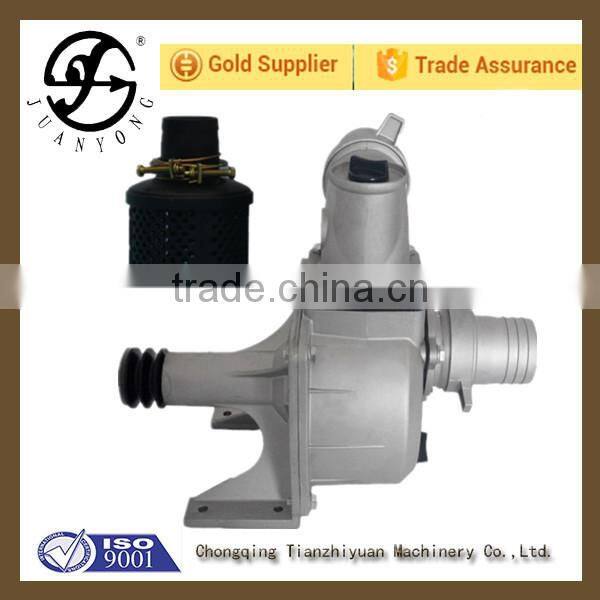

Image of belt driven pump
Chongqing Tianzhiyuan Machinery Co.,Ltd. is a professional manufacturer of water pumps in China and we will provide 24 hours services for customer. If you have any needs or technque question, you can choose by online talk or call us directly.
