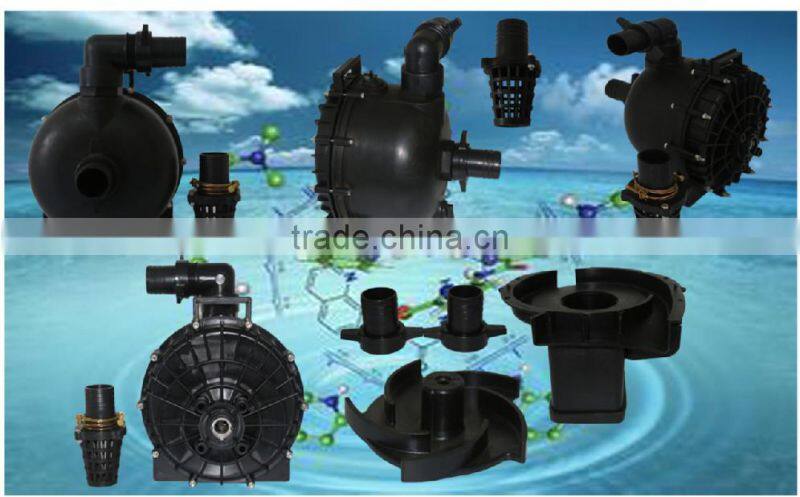

Help Center3 Inch Chemical Water Pump Acid Usage
Related Products
-
NEW Gasoline Pump /Chemical Pump With Specification of Centrifugal Pump for WaterUS$ 42 - 52MOQ: 3 Sets -
Chemical Pumps With Plastic for Industry Usage With Sea PumpsUS$ 50 - 60MOQ: 5 Sets
-
Hot Sale 3 Inch Portable Gasoline Honda Chemical Pump Small Water PumpUS$ 50 - 60MOQ: 5 Sets
-
Petroleum Chemical Centrifugal PumpUS$ 42 - 52MOQ: 5 Sets
-
Electric or Diesel Power and Water, Oil, Corrosive Liquid Usage Low Flow Chemical Process PumpUS$ 42 - 52MOQ: 5 Sets

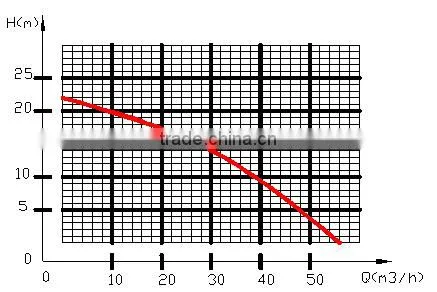

Performance curve
Parameter
ITEM | FTB80 |
Outlet Size(mm) | 80 |
Inlet Size(mm) | 80 |
Speed(rpm) | 3600 |
Displacement Q.max(m3/h) | 50 |
Lift H.max(m) | 22 |
Suction(m) | 7 |
Engine Model | 168F |

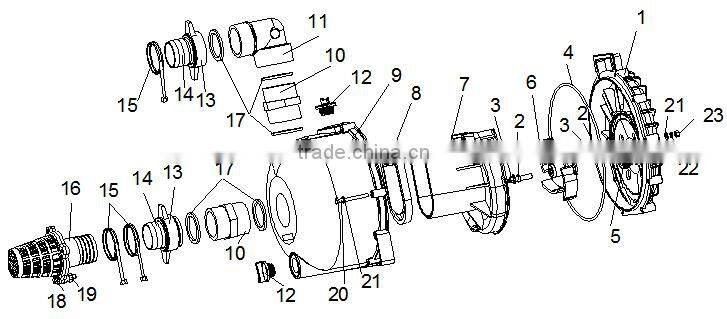

| Serial number | Name | Number |
| 1 | Water pump cover | 1 |
| 2 | Rubber ring Φ12×Φ6×3.1 | 4 |
| 3 | Bolt M8×35 | 4 |
| 4 | Pump sealing ring | 1 |
| 5 | Mechanical seal/ceramic | 1 |
| 6 | Impeller | 1 |
| 7 | Eddy shell | 1 |
| 8 | Eddy shell sealing ring | 1 |
| 9 | Water pump body | 1 |
| 10 | Inlet joint | 2 |
| 11 | The water outlet joint | 1 |
| 12 | Threaded plug pump | 2 |
| 13 | Pipe joint connecting nut | 2 |
| 14 | Pipe joint | 2 |
| 15 | Clamp | 3 |
| 16 | Filter cover | 1 |
| 17 | Pipe joint sealing gasket | 2 |
| 18 | Bolt M6×20 | 2 |
| 19 | Nut M5 | 2 |
| 20 | Bolt M6×65 | 10 |
| 21 | Shim | 20 |
| 22 | Spring pad | 10 |
| 23 | Nut M5 | 10 |
Customers to visit our factory
Business type:manufacturer,trading company.
Location:chongqing,china(mainland).
Year established:2010.
Company certifications:
Main products:chemical pumps,sewage pumps,self priming drag pumps,self priming high lift pumps,self priming pumps.
Our philosophy is to provide our clients with a wide choice of quality products and unprecedented services,we assure our clients of a mutually beneficial relationship as we look forward to developing a long term strategic partnership with your esteemed organization.
Advantages we have:
A. Experienced slate products supplier.
B. Professional design team and sales department for your service.
C. Alibaba golden supplier, factory recognized by "CE/IS9001"and so no.
D. 7/24 service for you all the question will be dealed within 24 hours.
Benelit you got:
A. stable quality-coming from good material and technic.
B. lower price-not cheapest but the lowest at the same quality.
C. good service-satisfactory service before and after sale.
D. delivery time10-15 days for mass production.
Delivery time:10-15days after initial payment.
Sampe by express, like UPS,TNT,FEDEX,EMS by air.
For large goods will delivery by sea.
Payment :T/T30% payment in advance,70% pay it when we prepared all goods after.
West Uion/PayPal and the special issues can be discussed.
Chongqing Tianzhiyuan Machinery Co.,Ltd. is a professional manufacturer of water pumps in China and we will provide 24 hours services for customer. If you have any needs or technque question, you can choose by online talk or call us directly.
