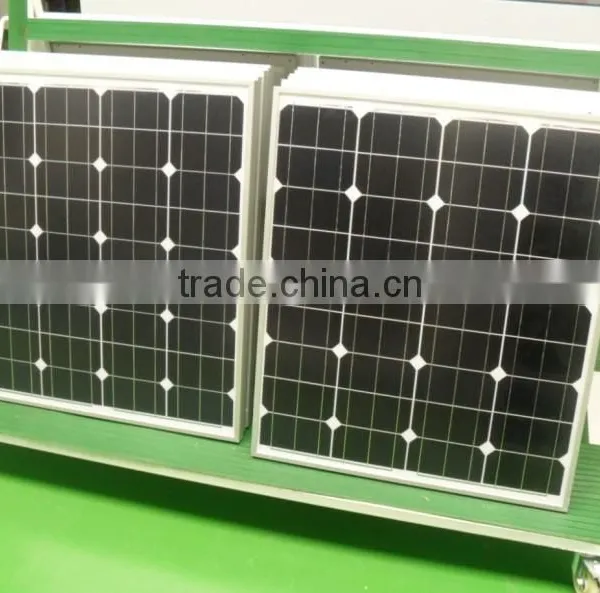

18% High efficiency solar cells Photovoltaic sets application 135W solar panel
YUNNAN YAOCHUANG ENERGY DEVELOPMENT CO., LTD.
Contact Sunny
Skype: yaochuangsolar
TUV & IEC & CE & ISO & RoHS & UL certificated solar cells solar application
Customized photovoltaic sets solutions
2014 Hot selling China manufacturer supply high efficient solar panels
Solar Panel Supplier Warranty
10-year repair and workmanship warranty
12-year warranty at 90% power output
25-year warranty at 80% power output
Typical Electrical Characteristics
Models | XH130M(36) | XH135M(36) | XH140M(36) | XH145M(36) | XH150M(36) | XH155M(36) |
Max. Power (Pmax) | 130Wp | 135Wp | 140Wp | 145Wp | 150Wp | 155Wp |
Optimum Operating Voltage (Vm) | 17.5V | 17.6V | 17.8V | 18V | 18.2V | 18.3V |
Optimum Operating Current (Im) | 7.43A | 7.67A | 7.87A | 8.06A | 8.24A | 8.47A |
Open-circuit Voltage (Voc) | 21.9V | 22.1V | 22.2V | 22.3V | 22.4V | 22.5V |
Short-circuit Current (Isc) | 7.85A | 8.07A | 8.34A | 8.6A | 8.69A | 8.83A |
Cells efficiency | 15.2% | 15.7% | 16.3% | 16.9% | 17.5% | 18% |
Note: the specifications are obtained under the Standard Test Condition (STC): 1,000W/m², Am 1.5, Cell Temperature 25℃
Solar Cell | Mono-crystalline 156×156mm |
Power Tolerance (Pmax) | 0 ~ +3% |
Numbers of cells | 36pcs of cells in series |
Module Dimension | 1488×664×35mm |
Weight | 12Kg |
Max. System Voltage | 1000V DC |
Max. Series Fuse Rating | 10A |
Temperature cycling range | -40℃ ~ +85℃ |
NOTC | 47℃ |
Temperature coefficients of Isc | (+0.06%/℃) |
Temperature coefficients of Voc | (-0.35%/℃) |
Temperature coefficients of Pmax | (-0.4%/℃) |
Load Capacity | 392pcs/ 20'GP |
840pcs/ 40'HQ |
Functional Features
- Applies to commercial, residential applications for on-grid and off-grid applications.
- Produced with strict quality control standards and a worldwide certification program.
- Easily installed on the ground, roof, building face or tracking system.
- Reduces electricity cost and creates energy independently.
- Modular, no moving parts, fully scalable and easily installed.
- Reliable and virtually maintenance-free power generation.
- Helps environment by reducing air, water and land pollution.
- Provides clean, quiet and reliable electricity generation.
Offering
Solar panel, charge controller, inverter, rechargeable battery, LED light
Solar water pump system
Off grid solar generator system
Grid tie solar generator system
Solar street light system
Wind & solar hybrid generator system
Customized solar energy system application according to your demand
Yunnan Yaochuang Energy Development Co., Ltd. locates in Kunming, Yunnan, China. It is a subsidiary of Shanghai XIHE Solar Co., Ltd, a trade & Industry integrated production-oriented enterprise.
YC Solar specializes in solar system research & developing, producing & marketing. We produce solar panels ranging from 5w to 310w mono & poly crystalline solar modules, and keep growing production ability from 200MW/Y at present. Customized solar panels can be produced according to clients’ requirement. TUV & IEC & EC & ISO certificated, high quality promise. YC solar provide 25 years solar panels quality guarantee.
Solar generator system, solar water pump system, solar street lamp system, solar & wind hybrid system we supplied are welcomed throughout America, Australia, Europe, Africa, Asia.
Shanghai is one of largest port in China, it ensures our products can be sent out to over world timely & safe. Yunnan is near by 9 states in Southeast Asia, unique geographical advantages make international trade more convenient. Sincerely hope we can be your long-term cooperator, and both of us get more flourishing future.
1. Are you a trading company or manufacturer?
We are a trading company attach to SHANGHAI XIHE ENERGY TECHNOLOGY CO.,LTD. which is manufacturer, has own production workshop.
2. Why choose to order from your company?
The products we offer is factory competitive price, TUV, IEC, CE, ISO, RoHS, VDE, UL certificated quality. From factory to you directly, no resale. Over 10 years solar energy development experience, professional engineers give you suggestion.
3. Can I get some discount?
Of course, if your order is large enough, or you are a regular repeat order client, we surely try our best to offer you some discount. 4. What is shipping method?
Air express for sample order, ocean shipping for bulk order.
5. How to pay for it?
T/T, L/C, Paypal, Western Union payments are acceptable, you can choose a convenient one.
6. How should I order it?
Firstly, you can contact us via trademanager or email to inform what products you need; Secondly, we will quote the best price according to your demand; If you accept the offer, the products will be prepared once getting 50% deposit; Then arranging shipping when getting balance payment; Finally, you can wait for delivery.

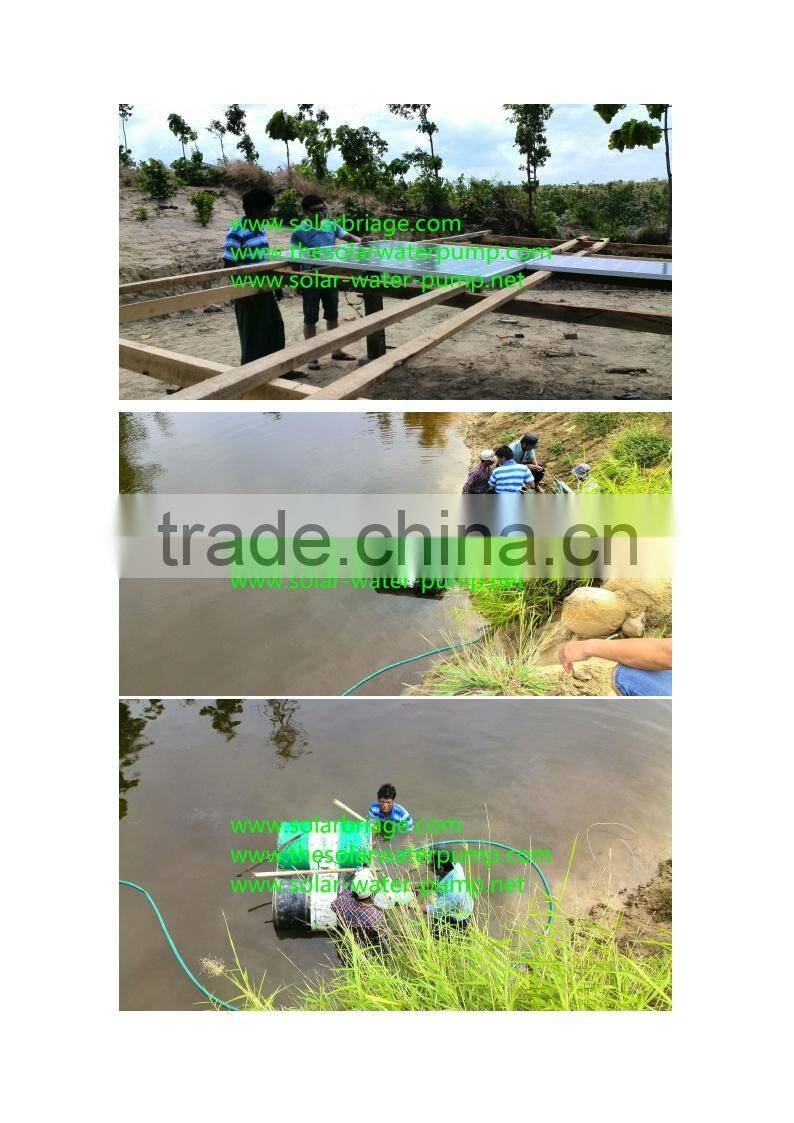

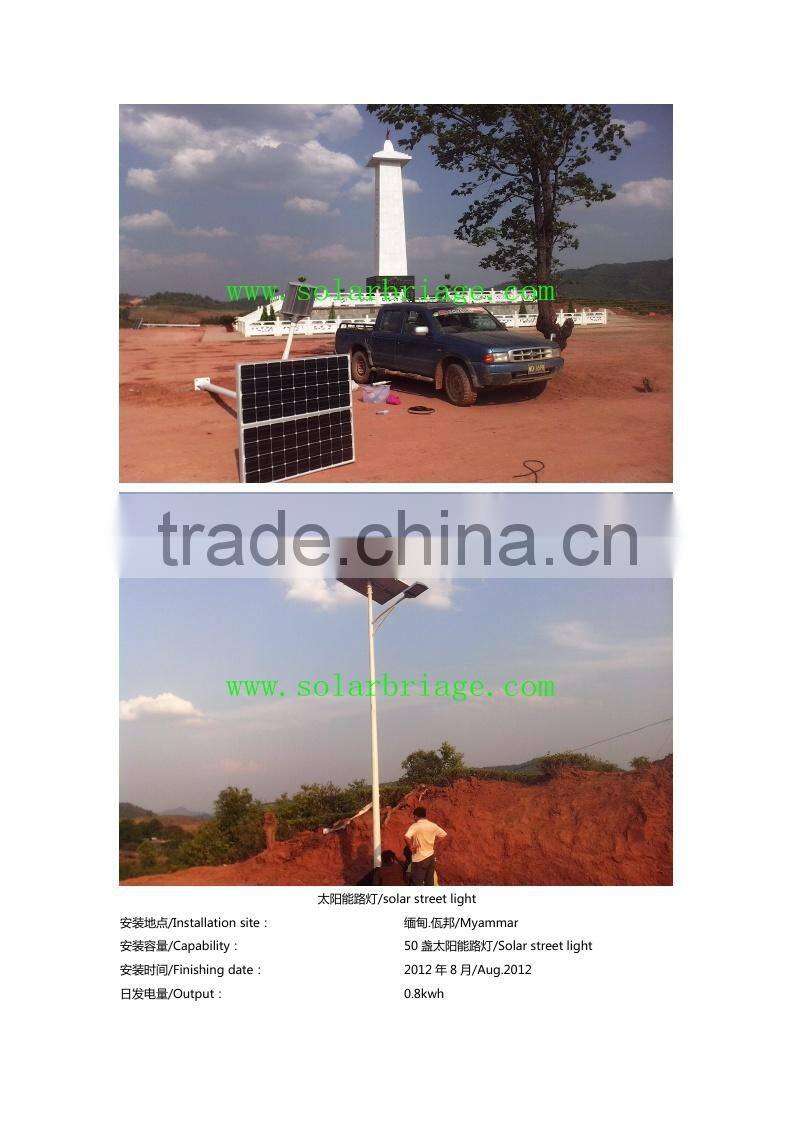

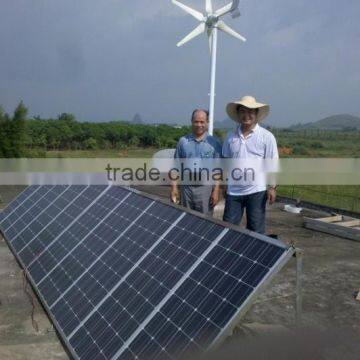

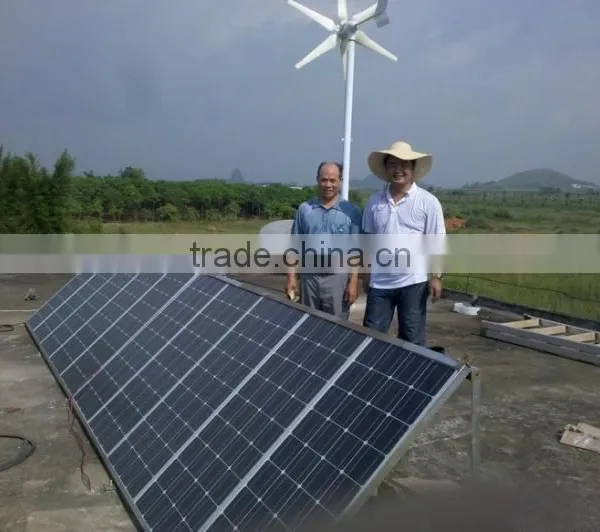

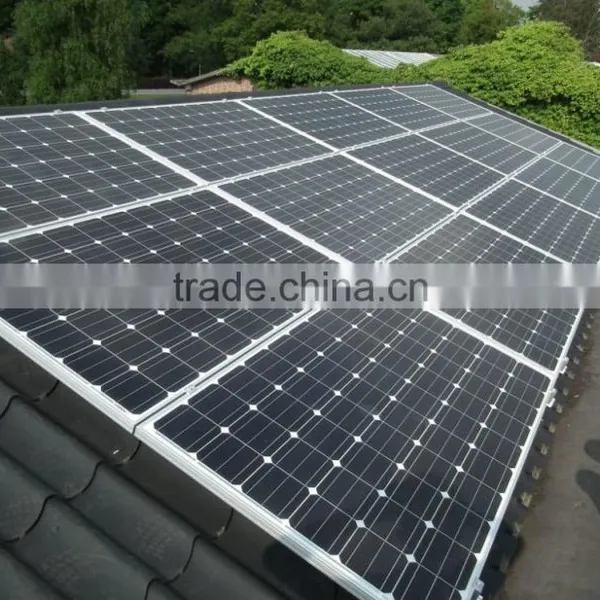

Some Application Cases
Thanks your attention, any question, please feel free contact us:)
