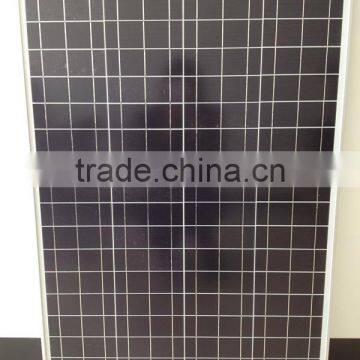

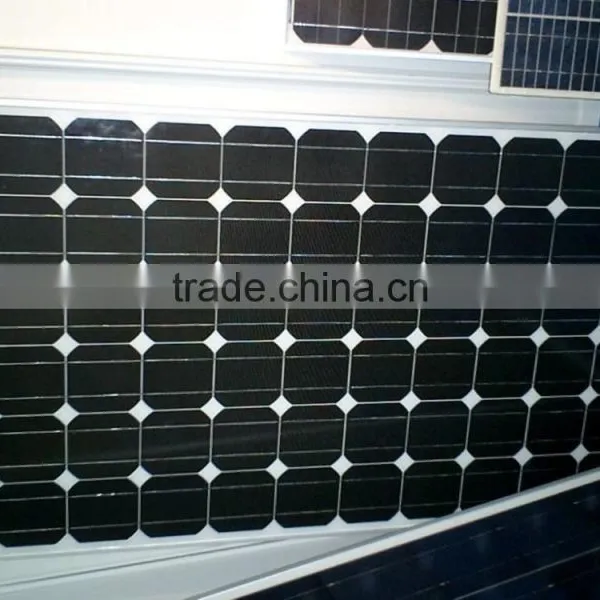

185Wp Solar panel 6*8pcs series solar cell array solar energy system
Yunnan Yaochuang Energy Development Co., Ltd. supply
TUV & IEC & CE & ISO certificated solar cell Array
10-year repair and workmanship warranty
12-year warranty at 90% power output
25-year warranty at 80% power output
Over 10 years solar poducts export experience
Convenient & safe trade cooperate with us
Whole set solar energy system

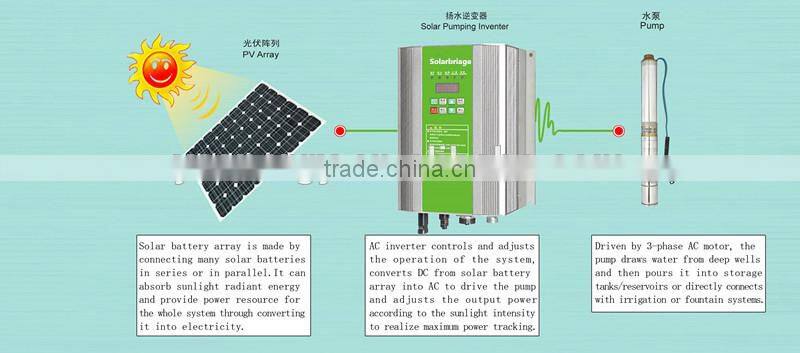

Solar water pump
Home solar generator
Grid tie solar system

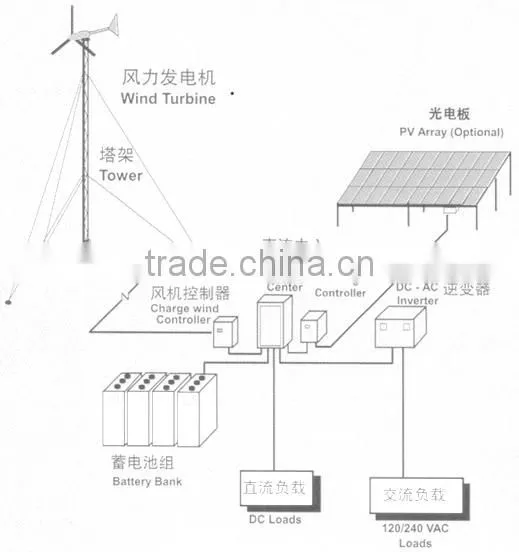

Solar wind hybrid power system
Solar street light
Important specification
Typical Electrical Characteristics
Models | XH165P(48) | XH175P(48) | XH185P(48) | XH195P(48) |
Max. Power (Pmax) | 165Wp | 175Wp | 185Wp | 195Wp |
Optimum Operating Voltage (Vm) | 23.3V | 23.5V | 23.7V | 23.9V |
Optimum Operating Current (Im) | 7.09A | 7.45A | 7.81A | 8.04A |
Open-circuit Voltage (Voc) | 28.8V | 28.9V | 29.1V | 29.2V |
Short-circuit Current (Isc) | 7.95A | 8.29A | 8.61A | 8.79A |
Cells efficiency | 14.5% | 15.2% | 16% | 16.8% |
Note: the specifications are obtained under the Standard Test Condition (STC): 1,000W/m², Am 1.5, Cell Temperature 25℃
Solar Cell | Poly-crystalline 156×156mm |
Power Tolerance (Pmax) | 0 ~ +3% |
Numbers of cells | 48pcs of cells in series |
Module Dimension | 1335×990×35mm |
Weight | 15.80Kg |
Max. System Voltage | 1000V DC |
Max. Series Fuse Rating | 12A |
Temperature cycling range | -40℃ ~ +85℃ |
NOTC | 47℃ |
Temperature coefficients of Isc | (+0.06%/℃) |
Temperature coefficients of Voc | (-0.35%/℃) |
Temperature coefficients of Pmax | (-0.4%/℃) |
Load Capacity | 320pcs/ 20'GP |
670pcs/ 40'HQ |

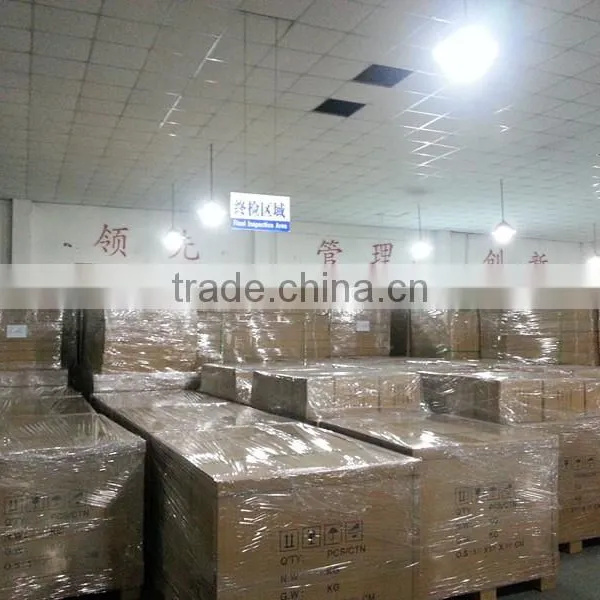

Packing Details

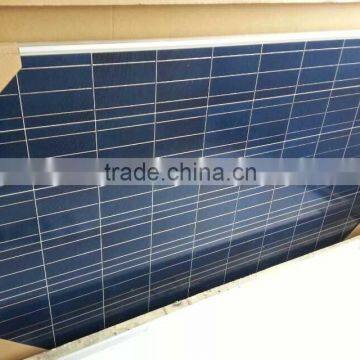

Each panel with a single carton box or four sides with carton box covered
10pcs or 5pcs in one outer carton
Finally use wooden pallets to pack the carton

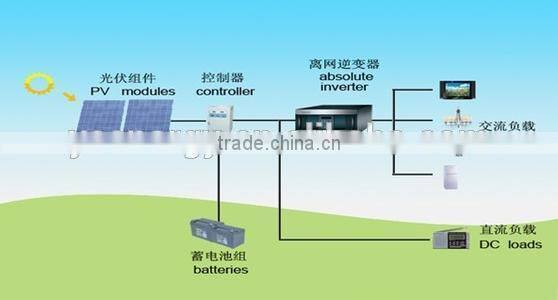

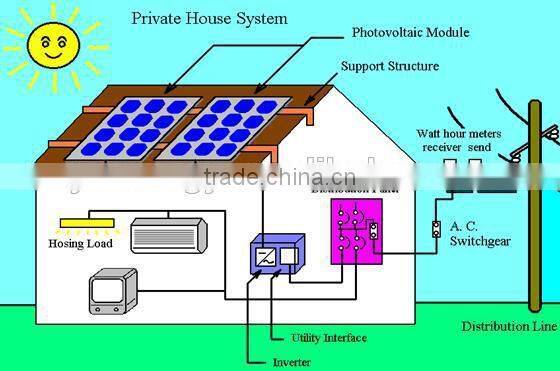

Solar power application display
Any question, please do not hesitate to contact us, we are happy to hear from you. Your inquiry will be responded within 12 hours.
