Specifications
lar water pump system used,A class solar panel,quality confirmed;2.25 year 80% efficiency guarantee;
3.ISO,TUV,CE;

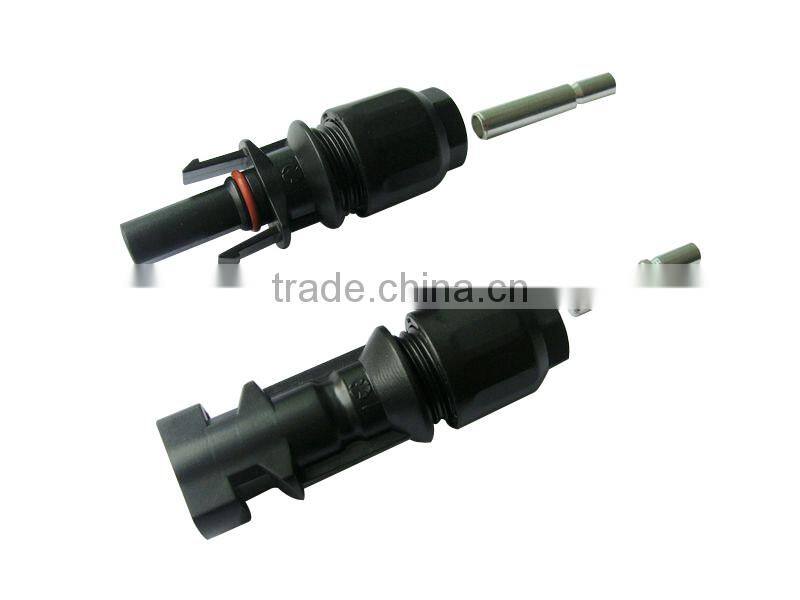

4.MC4

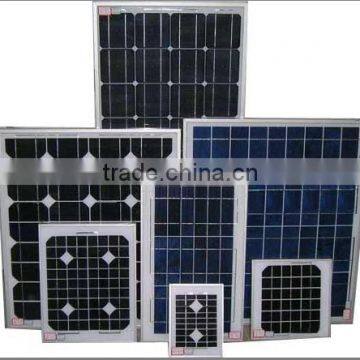

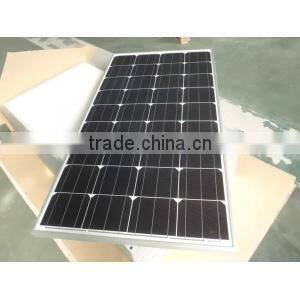

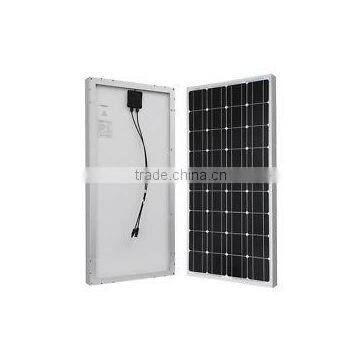

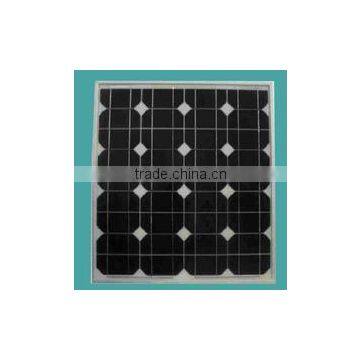

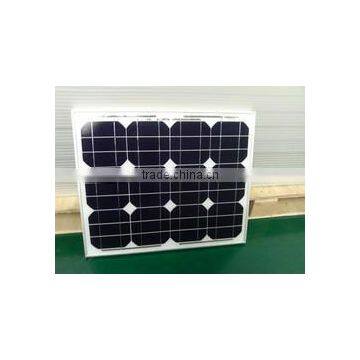

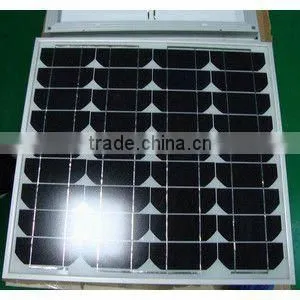

30W poly silicon solar module(panel) XH30P(36)
Typical Electrical Characteristics
Models | XH30P(36) |
Max. Power (Pmax) | 30Wp |
Optimum Operating Voltage (Vm) | 17.3V |
Optimum Operating Current (Im) | 1.74A |
Open-circuit Voltage (Voc) | 21.7V |
Short-circuit Current (Isc) | 1.89A |
Cells efficiency | 15.0% |
Solar cell | Poly-crystalline 156×36mm |
Power Tolerance (Pmax) | 0 ~ +3% |
Numbers of cells | 36pcs of cells in series |
Module Dimension | 506×506×25mm |
Weight | 3.0Kg |
Max. System Voltage | 1000V DC |
Max. Series Fuse Rating | -------- |
Temperature cycling range | -40℃ ~ +85℃ |
NOTC | 47℃ |
Temperature coefficients of Isc | (+0.06%/℃) |
Temperature coefficients of Voc | (-0.35%/℃) |
Temperature coefficients of Pmax | (-0.4%/℃) |
Load Capacity | 2160pcs/ 20'GP |
4560pcs/ 40'GP |
1.Help u design your own solar power system&solar plant;
2.Offer you some document and design drawing;
3.We are specialized in establishing solar plant,solar power system(Grid tie&off grid);solar street lamp;solar watet pump system;
lar related accessories.
Yunnan Yaochuang Energy Development Co., Ltd. locates in Kunming, Yunnan, China. It is a subsidiary of Shanghai XIHE Solar Co., Ltd, a trade & Industry integrated production-oriented enterprise.

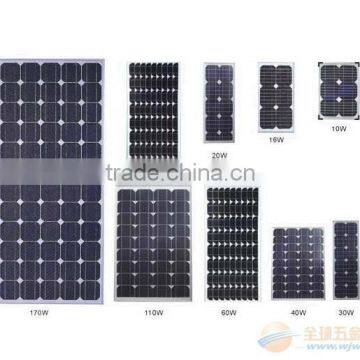

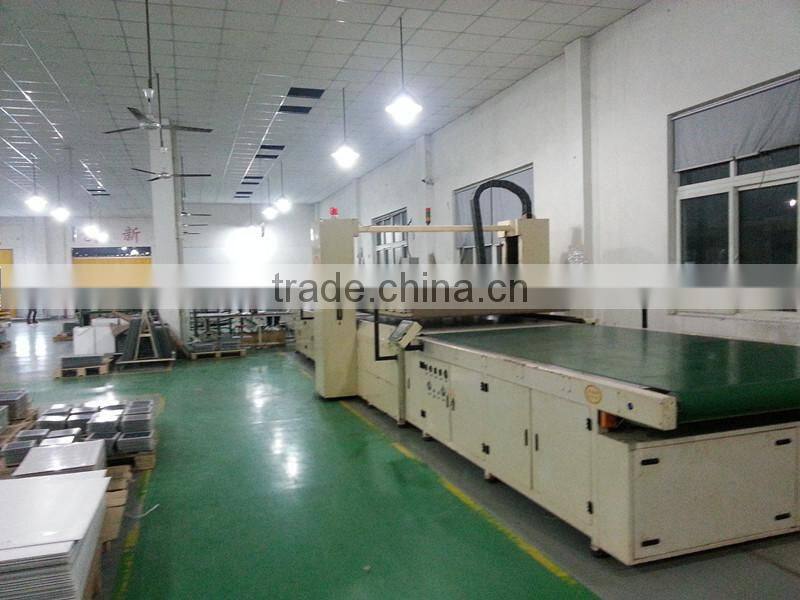

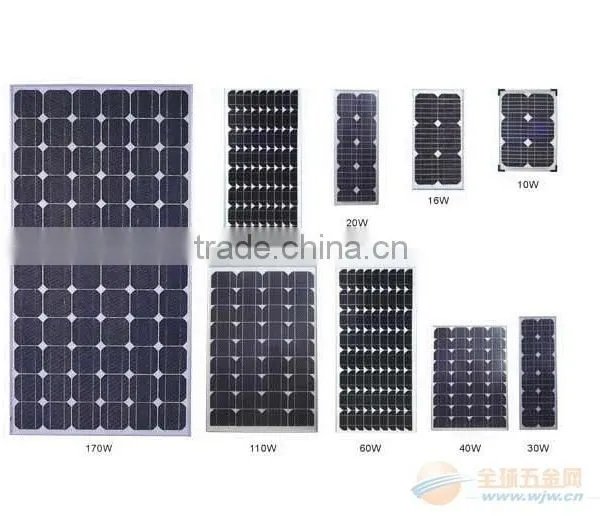

YC Solar specializes in solar system research & developing, producing & marketing. We produce solar panels ranging from 5w to 310w mono & poly crystalline solar modules, and keep growing production ability from 200MW/Y at present. Customized solar panels can be produced according to clients’ requirement. TUV & IEC & EC & ISO certificated, high quality promise. YC solar provide 25 years solar panels quality guarantee.
Solar generator system, solar water pump system, solar street lamp system, solar & wind hybrid system we supplied are welcomed throughout America, Australia, Europe, Africa, Asia.
Shanghai is one of largest port in China, it ensures our products can be sent out to over world timely & safe. Yunnan is near by 9 states in Southeast Asia, unique geographical advantages make international trade more convenient. Sincerely hope we can be your long-term cooperator, and both of us get more flourishing future.
