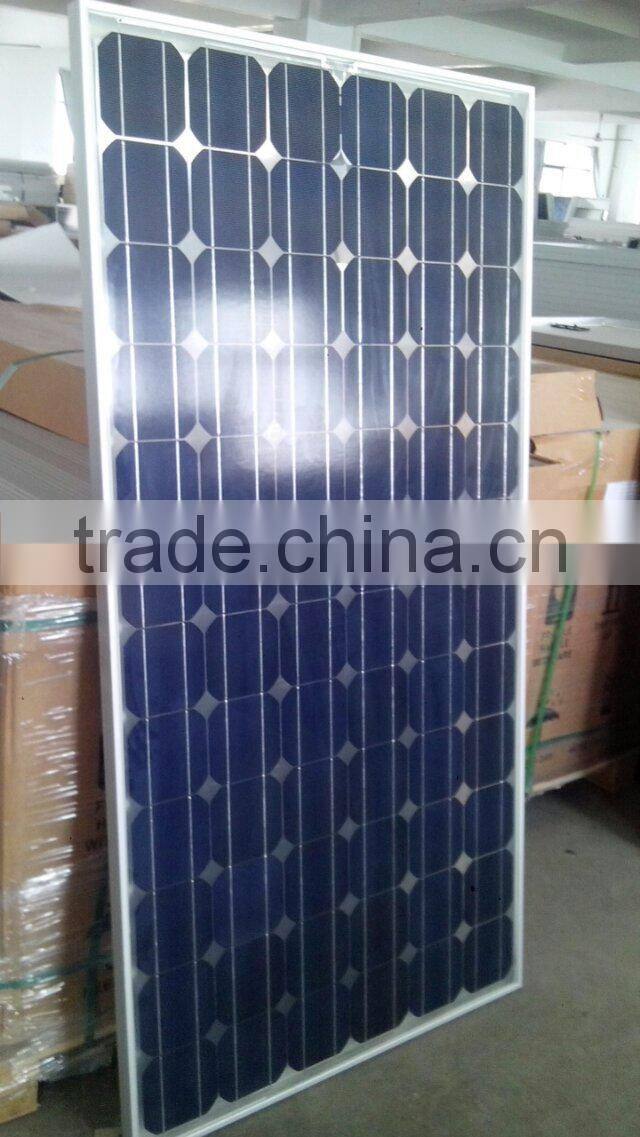

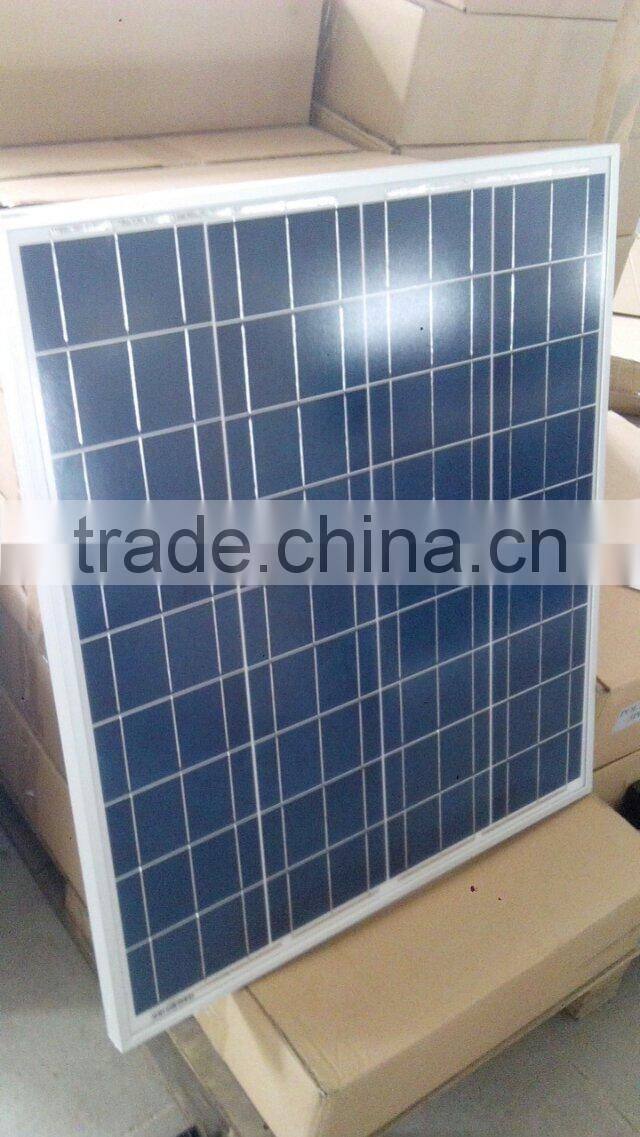

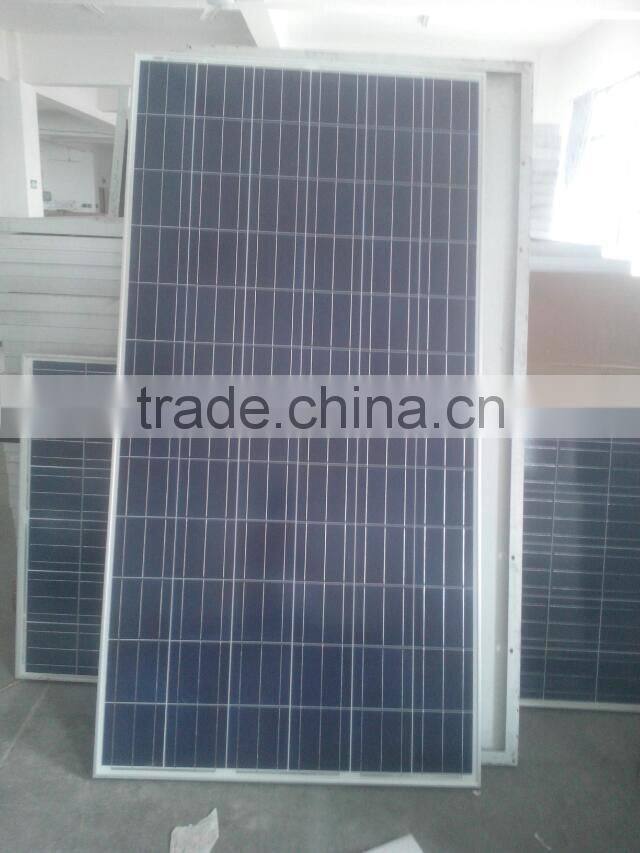

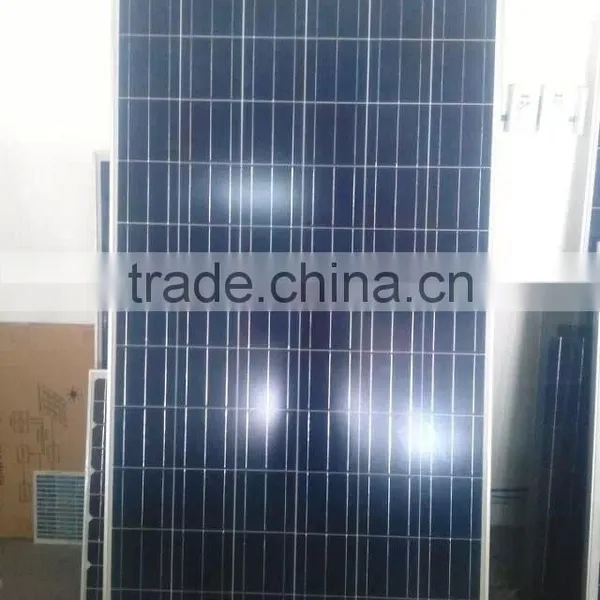

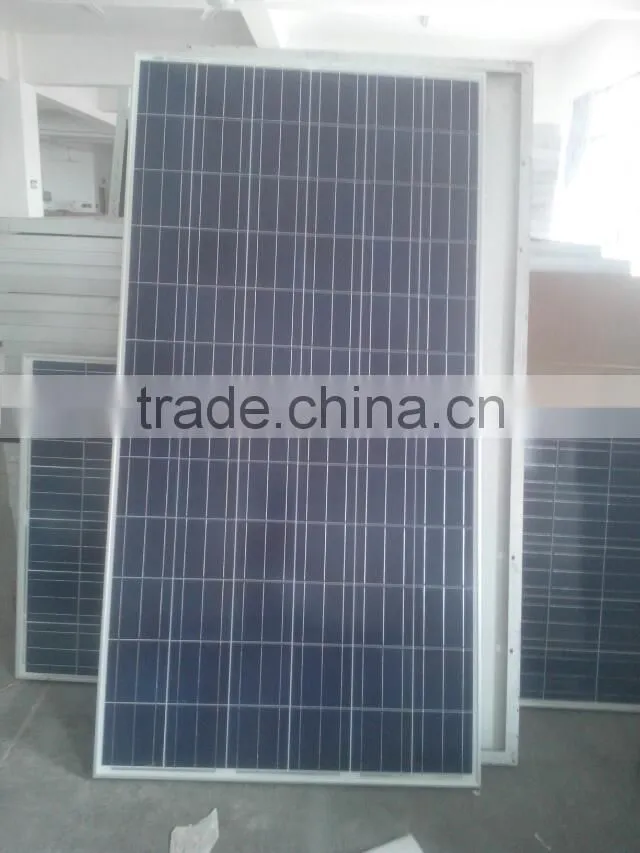

250Watt polycrystailline sicicon solar module
Features | |
1.Nominal 30V DC for standard Output 2.High cell efficiency PV solar panel with quality silicon material for long term output stability and reliability 3.High transmittance low iron tempered glass with enhanced stiffness and impact resistance 4.Unique frame design with high mechanical strength for easy Installation 5.5 years product warranty and 25 years performance warranty ensure reliability of modules | |
Electrical Characteristics | |
Model | JC250W-60P |
Max-Power Pm(W) | 250 |
Max-Power Voltage(V) | 30.15 |
Max-Power Current Im(A) | 8.29 |
Short-Circuit Current lsc(A) | 8.73 |
Open-Circuit Voltage Voc(V) | 37.89 |
Power Tolerance(W) | +/-3% |
Module Efficiency(%) | 15.4% |
Cell Efficiency(%) | 17.4% |
Max-System Voltage(v) | 1000 |
Note:STC Irradiance 1000W/Wm2 with AM1.5 spectrum,Cell temperature 25ºC.
Mechanical Characteristics | |
Type of Solar Cell | Poly-Crystalline 156*156mm |
No.of Cells and Connections | 60pcs(6*10) |
Dimension of Module | 1640*992*40(mm) |
Weight | 18.5KG |

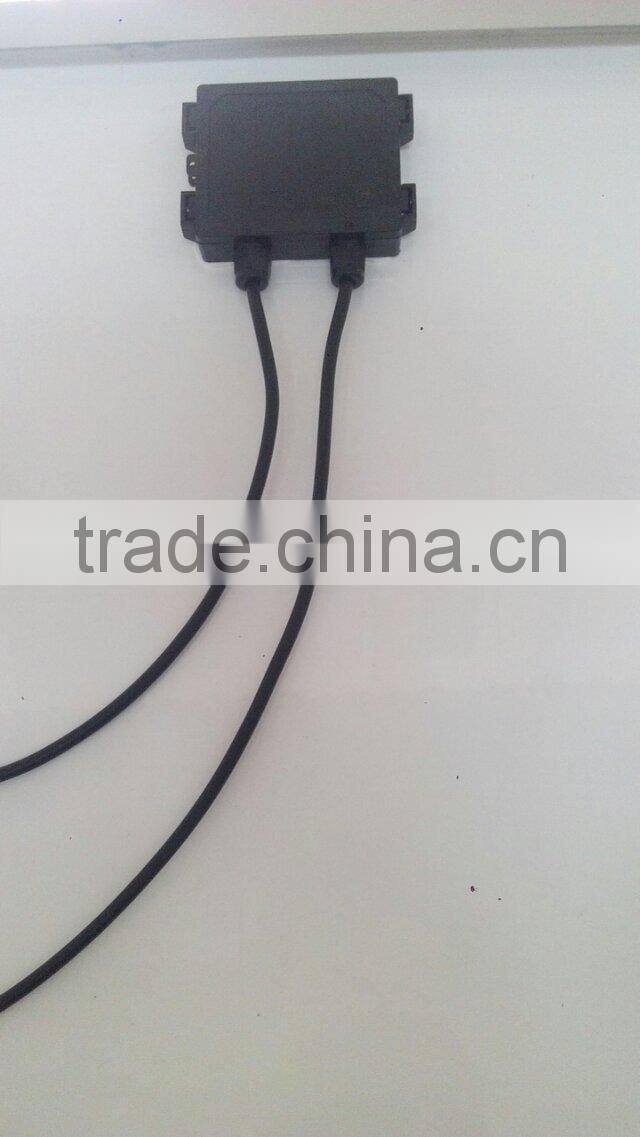

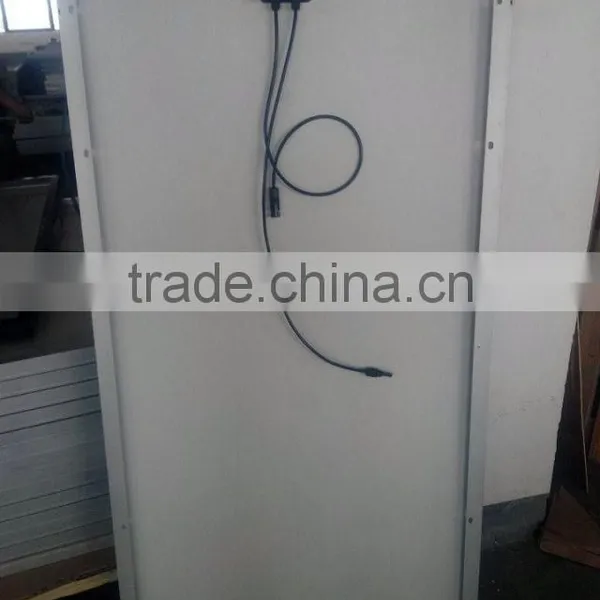

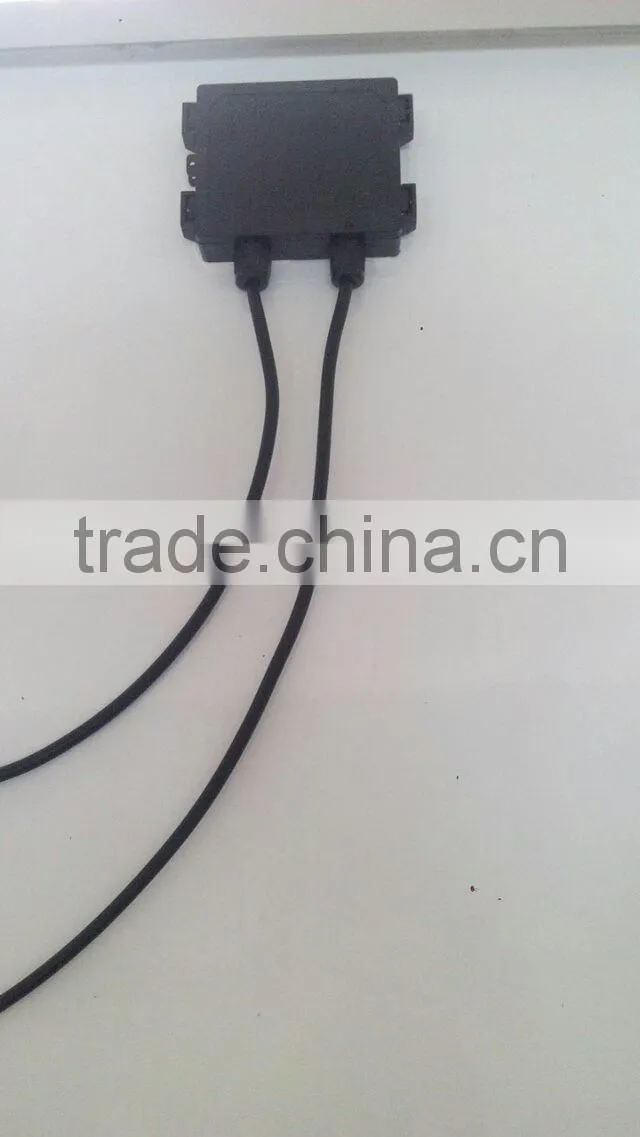

Junction Box | IP65 Rated |
Type of Glass and Thickness | Low-iron Tempered Glass |
Frame | Clear anodized aluminum alloy.Color:silver |
Packing
