250Wp polycrystalline solar panel China manufacturer supplier
Over 10 years solar panels sale export experience, beginning alibaba sale now, thanks your support.
Yunnan Yaochuang Energy Developmemt Co., Ltd.

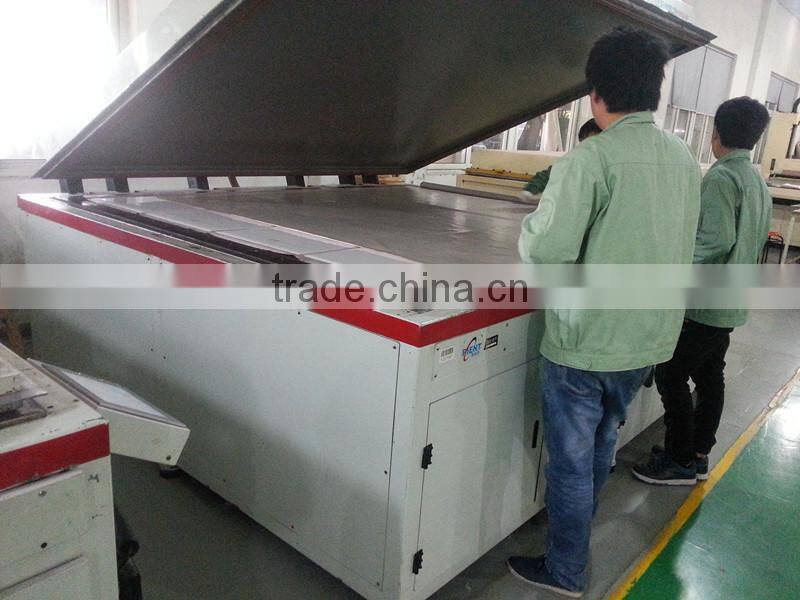

ooi solar panel production line
Original manufacturer supply high quality
TUV & IEC & CE & ISO certificated solar panels
10-year repair and workmanship warranty
12-year warranty at 90% power output
25-year warranty at 80% power output
Important specification
Typical Electrical Characteristics
Models | XH225P(60) | XH230P(60) | XH235P(60) | XH240P(60) | XH245P(60) | XH250P(60) |
Max. Power (Pmax) | 225Wp | 230Wp | 235Wp | 240Wp | 245Wp | 250Wp |
Optimum Operating Voltage (Vm) | 29.6V | 29.7V | 29.6V | 29.7V | 30V | 30V |
Optimum Operating Current (Im) | 7.44A | 7.58A | 7.78A | 7.92A | 8.06A | 8.33A |
Open-circuit Voltage (Voc) | 36.6V | 36.7V | 36.8V | 36.9V | 37V | 37.1V |
Short-circuit Current (Isc) | 7.95A | 8.1A | 8.27A | 8.42A | 8.57A | 8.72A |
Cells efficiency | 15.1% | 15.5% | 15.8% | 16.1% | 16.5% | 16.8% |
Note: the specifications are obtained under the Standard Test Condition (STC): 1,000W/m², Am 1.5, Cell Temperature 25℃
Solar Cell | Poly-crystalline 156×156mm |
Power Tolerance (Pmax) | 0 ~ +3% |
Numbers of cells | 60pcs of cells in series |
Module Dimension | 1650×992×40mm |
Weight | 19.5Kg |
Max. System Voltage | 1000V DC |
Max. Series Fuse Rating | 15A |
Temperature cycling range | -40℃ ~ +85℃ |
NOTC | 47℃ |
Temperature coefficients of Isc | (+0.06%/℃) |
Temperature coefficients of Voc | (-0.35%/℃) |
Temperature coefficients of Pmax | (-0.4%/℃) |
Load Capacity | 240pcs/ 20'GP |
520pcs/ 40'HQ |
Packing Details
Each panel with a single carton box or four sides with carton box covered
10pcs or 5pcs in one outer carton
Finally use wooden pallets to pack the carton
Offering
Solar panel, charge controller, inverter, rechargeable battery, LED light
Solar water pump system
Off grid solar generator system
Grid tie solar generator system
Wind & solar hybrid generator system
Customized solar energy system application according to your demand
About us
Yunnan Yaochuang Energy Development Co., Ltd. locates in Kunming, Yunnan, China. It is a subsidiary of Shanghai XIHE Solar Co., Ltd, a trade & Industry integrated production-oriented enterprise.
YC Solar specializes in solar system research & developing, producing & marketing. We produce solar panels ranging from 5w to 310w mono & poly crystalline solar modules, and keep growing production ability from 200MW/Y at present. Customized solar panels can be produced according to clients’ requirement. TUV & IEC & EC & ISO certificated, high quality promise. YC solar provide 25 years solar panels quality guarantee.
Solar generator system, solar water pump system, solar street lamp system, solar & wind hybrid system we supplied are welcomed throughout America, Australia, Europe, Africa, Asia.
Shanghai is one of largest port in China, it ensures our products can be sent out to over world timely & safe. Yunnan is near by 9 states in Southeast Asia, unique geographical advantages make international trade more convenient. Sincerely hope we can be your long-term cooperator, and both of us get more flourishing future.
Supply ability

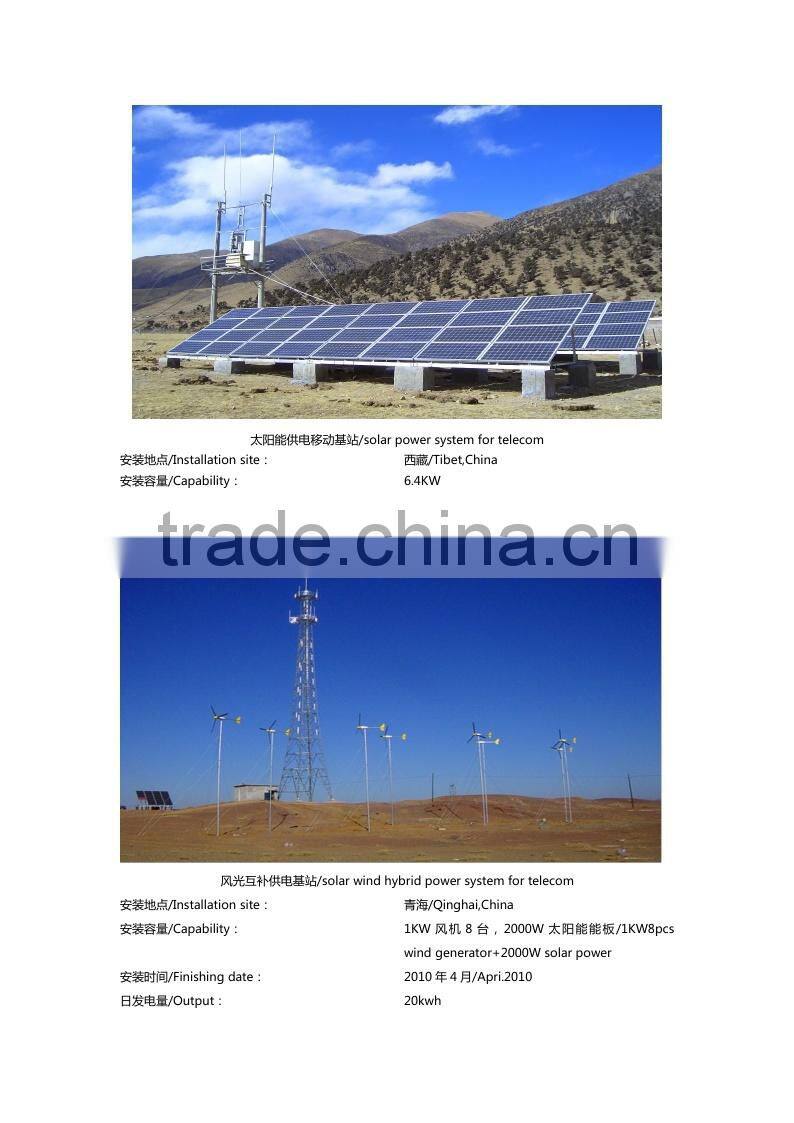

July, 2009 Solar Power System for Telecom in Tibet, China
April, 2010 Solar & Wind Hybrid Power System for Telecom in Qinghai, China
April, 2013 Solar Water Pump in Pakistan
Anything we can do for you, please do not hesitate to contact us, your inquiry will be responed within 12 hours.
