solar panel system solar energy system solar power system home 1kw 2kw 3kw 4kw 5kw 6kw 7kw 8kw 10kw 15kw 20kw 25kw
Yaochuang Energy solar power system home 1kw 5kw 10kw 15kw 20kw configuration
More specifications please feel free to contact me
Email: flower(at) Whatsapp: +86 15368183363 Skype: Annie20166
| Yaochuang solar power system home | |||||
| Power | solar panel | solar controller | Battery | Solar inverter | Cable |
| 1KW | 10*100W Poly | 24V 50A | 2*200AH 12V | 1000W 24V | PV 4-6mm² |
| 2KW | 20*100W Poly | 48V 50A | 4*200AH 12V | 2000W 48V | PV 4-6mm² |
| 3KW | 20*150W Poly | 48V 80A | 8*120AH 12V | 3000W 48V | PV 4-6mm² |
| 4KW | 26*160W Poly | 48V 90A | 8*180AH 12V | 4000W 96V | PV 4-6mm² |
| 5KW | 20*250W Poly | 96V 60A | 8*200AH 12V | 5000W 96V | PV 4-6mm² |
| 6KW | 24*255W Poly | 96V 70A | 8*250AH 12V | 6000W 96V | PV 4-10mm² |
| 7KW | 28*255W Poly | 96V 80A | 16*150AH 12V | 7000W 96V | PV 4-10mm² |
| 10KW | 40*255W Poly | 96V 110A | 16*200AH 12V | 10KW 96V | PV 4-25mm² |
| 15KW | 60*250W Poly | 192V 110A | 32*150AH 12V | 15KW 192V | PV 4-25mm² |
| 20KW | 80*250W Poly | 192V 110A | 32*200AH 12V | 20KW 192V | PV 4-35mm² |
2kw solar panel system solar power system home
Application:
Families, island, none or short of electricity area, Satellite Ground Stations,
weather stations,forest fire stations, etc.
Features:
1.Long-term, sustainable power
2.Reliable, mainenance-free performance
3.Easy and quick installation
4.Simple control interface
High quality solar panel 100W 150W 200W 250W 300W
Warranty
10-year repair and workmanship warranty
12-year warranty at 90% power output
25-year warranty at 80% power output
Lead acid battery for solar power system
completely sealed and maintenance-free, low self-discharge
100% precise quality testing, stable quality and high reliable performance
Unique grid alloy formula and updated manufacturing technique
Floating & standby use:up to 5 years
Cycle use 1: More than 280 cycles at 100% DOD
Cycle use2: More than 1400 cycles at 30% DOD
Specifications: 24 to 200AH
Pure wave inverter for solar power system
Features:
1. Toroidal transformer of light weight, small size, high conversion efficiency, low power consumption, good load capacity and load adaptability, etc.
2. AC input automatic voltage regulator (AVR), input voltage range of 145V ~ 275V.
3. Liquid crystal (LCD) display, backlight power saving mode. The main display real-time battery voltage, battery capacity, input and output voltage, output frequency, duty ratio, etc. Automatically switch the display according to different working conditions.
4. Having overload, battery overcharge, over discharge, output short circuit, over-temperature protection features.
5. Full SMD modular structure, stable performance, easy maintenance
Solar charge controller
Product description
The controller applies to the solar net division system (independent system). It can control the electrical charge and discharge process automatically. The discharge process of the storage battery has been optimized thus it can increase the lifetime of the storage battery and improve the function of the system. The thorough electronic protection function can keep the controller away from damage when the users install it error or the system is in bug.
Certificates of solar power system for home

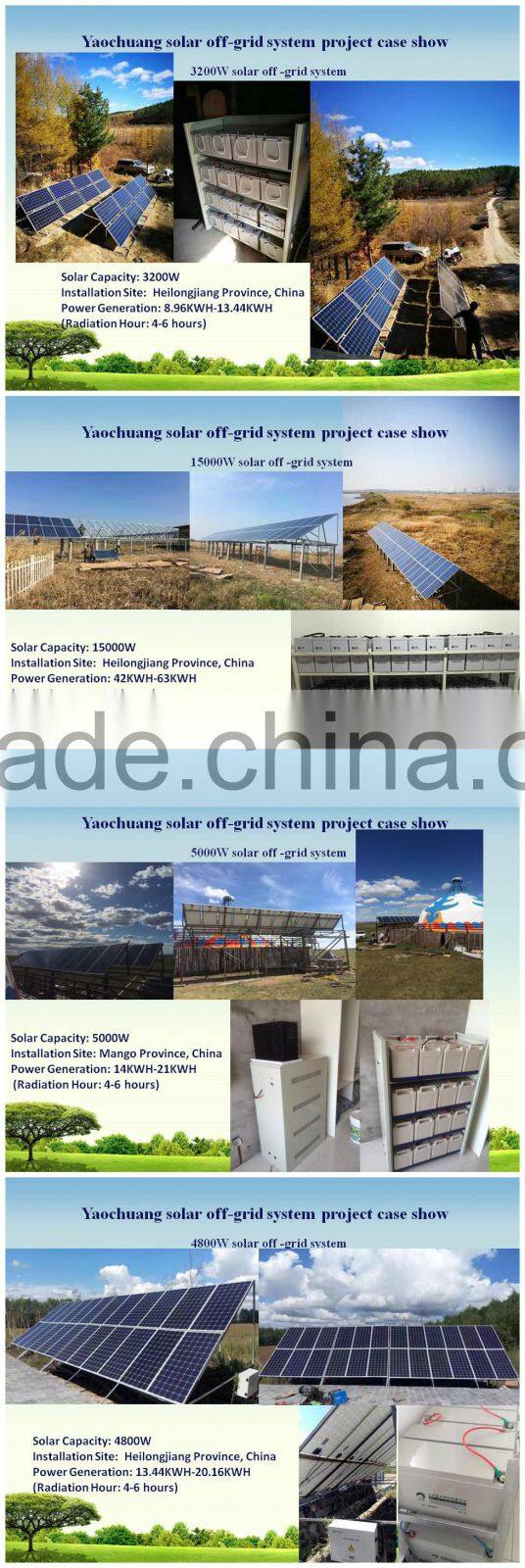

Our projects are our best advantages
