Solar Water Pump Controller ac Single/three Phase Inverter Solar Pool Pump Inverter DC to AC

The function of solar water pump inverter

The function of solar water pump inverter : solar panel produce DC electrivity,but in our daily life most household loads are AC electrocity,so solar water pump inverter make the DC electricity transfer to AC electricity for offering AC electrivity to solar water pump work.

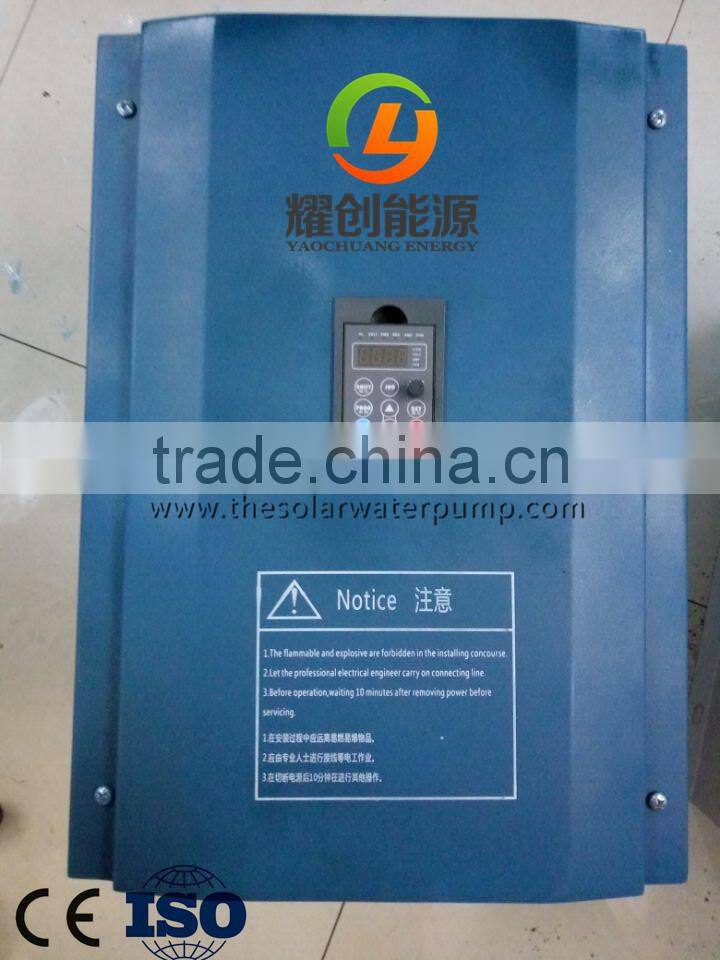

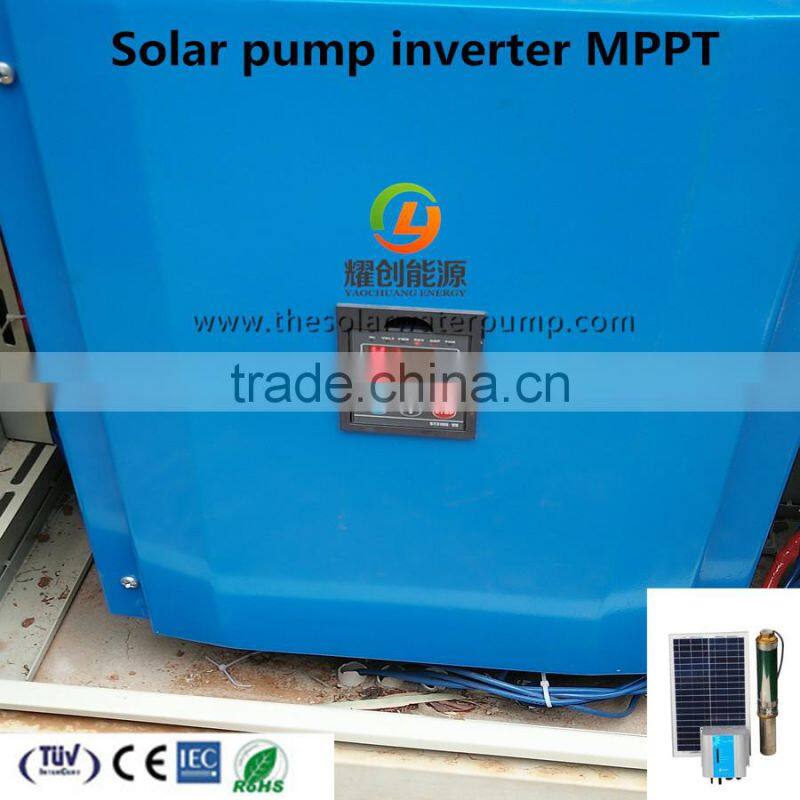

YAOCHUANG solar pump controller does not only converter DC 560V to AC 380V or 220V, but also controlling pump working condition, anti- dry pumping, and remote monitoring. It is highly welcomed in solar water pump irrigation system, and livestock water supply.

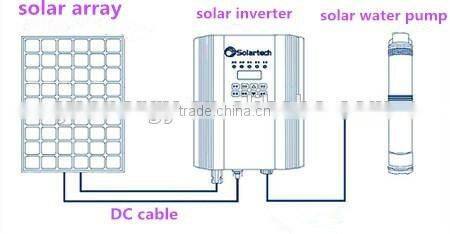

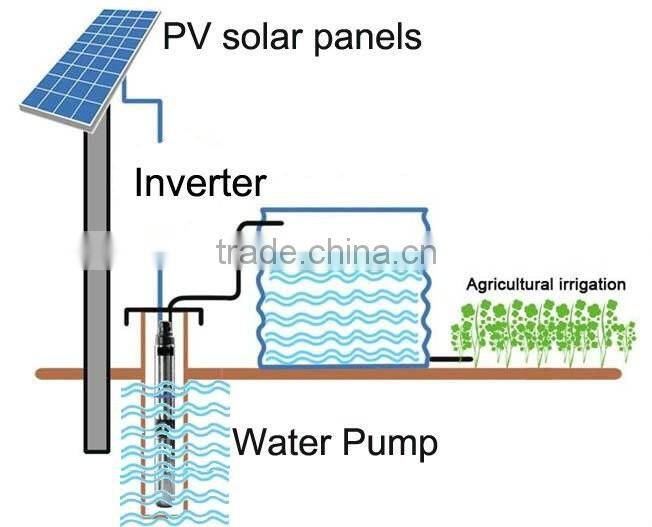

The solar water pump working theory

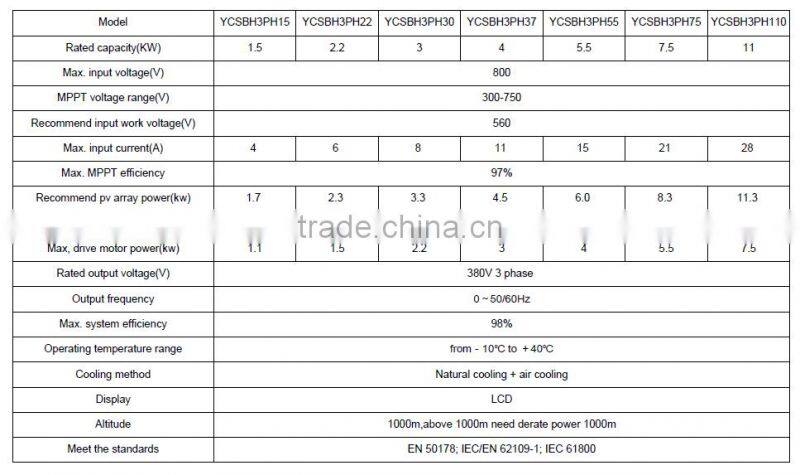

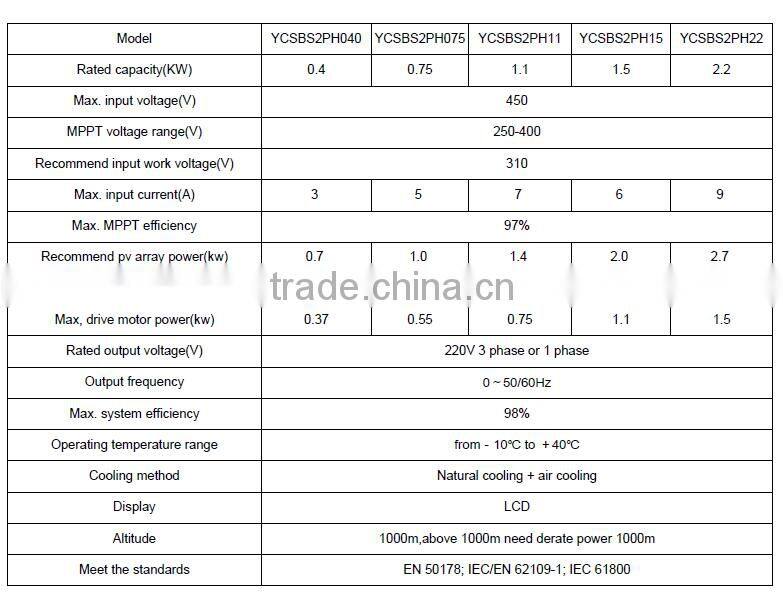

Yaochuang Solar water pump inverter parameters

Most popular 1hp 0.75 kw solar water pump system configuration

After choosing a suitable solar water pump,we next choose suitable solar water pump inverter and solar panel.

 Yunnan Yaochuang Energy CO.,LTD

• Yaochuang Energy Co.,Ltd. is a professional solar power system integrator, especially solar water pump system, We offer 370W - 50KW solar water pump systems for agriculture & home use.residence off grid solar power system, on grid solar power plant, solar street light, etc.
• Our solar panel & solar pump inverter factory is located in Shanghai, the biggest sea port in China makes transport more convenient.

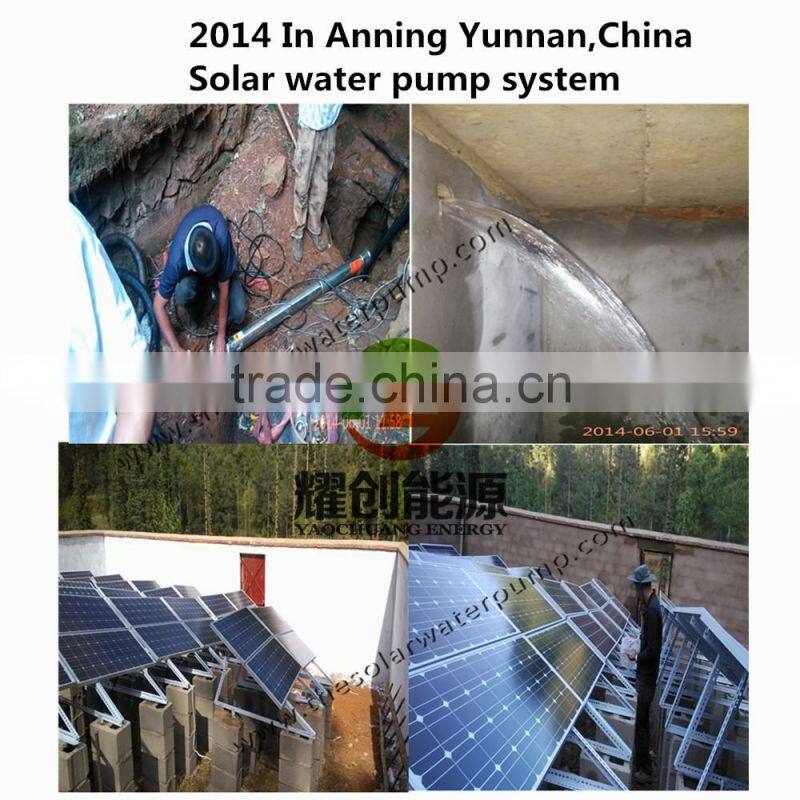

• Sale office is located in Kunming, a very beautiful place be named as Flower city, it is near to Thailand, Myanmar, Vietnam, Laos, and we have installed many solar water pump system in those countries, and get high praise.

Solar Water pump Advantage:

1) No area limited, even in none power supply village

2) Economical power supply system, perpetual energy source

3) Environment protection, no noise

4) Easy application, convenient & efficient

5) Operating with solar panel or battery

• Factory price solar panel & solar water pump inverter, and other solar power system equipments
• 1-10 years warranty high quality solar energy products with CE & TUV & RoHS certificate
• Free system design solution.
• Installation (training) service. We offer installation technic guidance service,We have a large number of cases to let you trust that we have the absolute ability for you to customize a solar power system and install the whole system.

• After-sale service. We offer best products and best attitude for you not when you are paying to us, you are our client now, you are our friend forever !

We are not only solar pump inverter manufacturer, but also solar water pump system integrator & installaer. If you have any solar water pump system project, it is highly honored to offer solution. For better service, please inform us

1) The system installation Country _________             City __________

2) daily water supply ________ m3

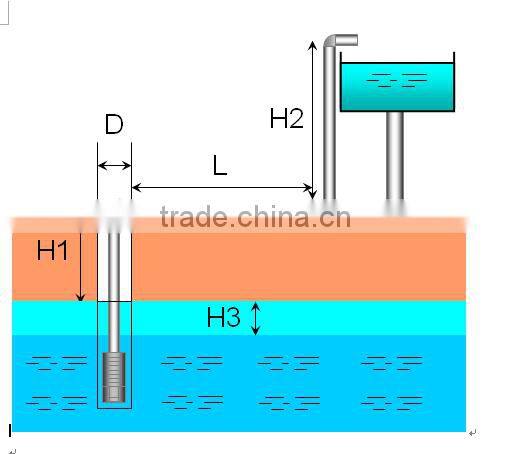

3) Vertical height from water level to ground H1 (Static Head) ___________ m

4) Vertical height from tank (if any) to ground H2 _________ m

5) Horizontal distance from tank (if any) to water source L __________ m

6) Water level drop when pumping water H3 (Dynamic head) _____________ m

1.What is solar pumping system?

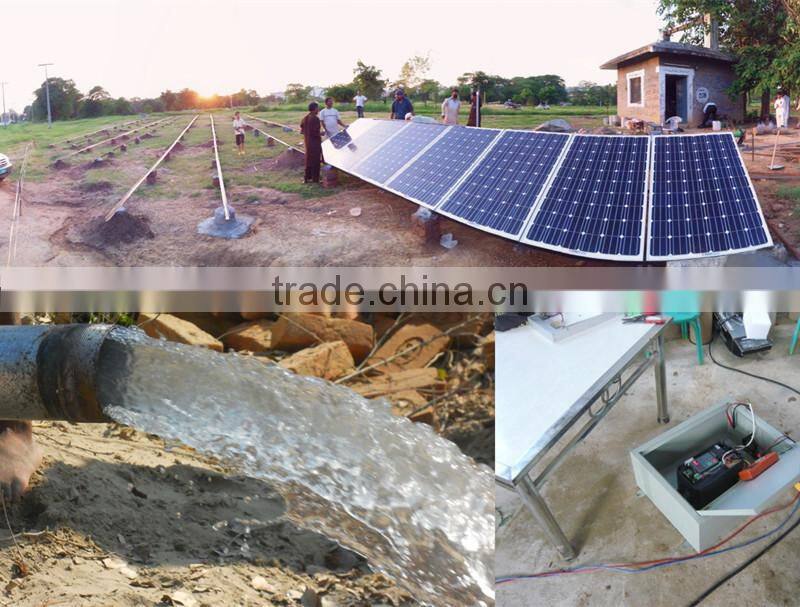

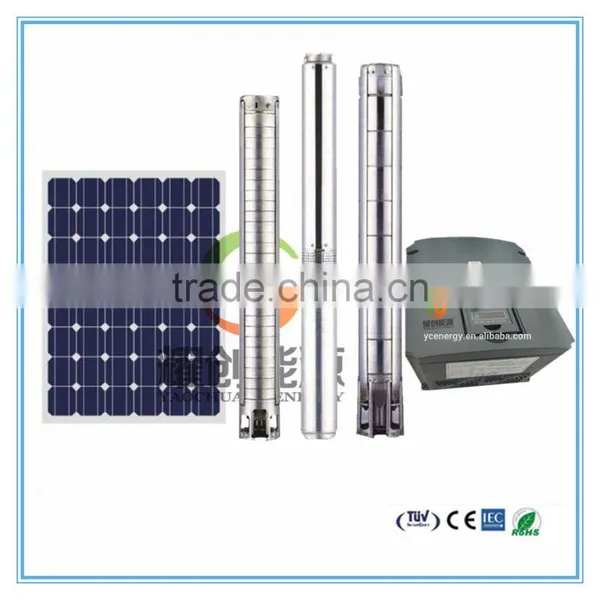

The solar pumping system is composed of solar pumping inverter, 3 phase AC pump, and solar array. The solar array is composed of many solar cells panels in series and in parallel, and absorbs irradiation from Sunlight, and converts into electrical energy (DC). Inverter controls and regulates pumping operation system and converts DC voltage from PV modules to AC to drive the AC pump, with the function of MPPT and it regulates the output frequency according to irradiation in actual time to achieve the maximum power. The AC pump driven by a 3 phase induction motor, draws water from well or rivers and lakes, then water reserved on tank/ponds for irrigation systems or other applications. Based on the requirements and installation conditions, different types of pumps will be required.

The solar pumping system is widely used for sea water desalination system, desert controlling, daily life water supplying, agricultural irrigation, forest irrigation, waterscape, and water treatment project. The YCsolar solar pumping system is dispensed with battery and that enhance the reliability of the system and reduce the bill invest.

2.Why cubic meters/day not cubic meters/hour for measuring the solar pumping system?
The YCsolar solar pumping dedicated inverter is adopted to achieve MPPT (Maximum Power Point Tracking) to regulate the speed of the pump, and the water output changes while the sunshine radiation changes, so, cubic meters/day is the only standard measurement of the water output of a solar pumping system.

3.How long will the photovoltaic system serve?
The solar PV module is with 25 years of using life, and the output power will get lower as the time past.
