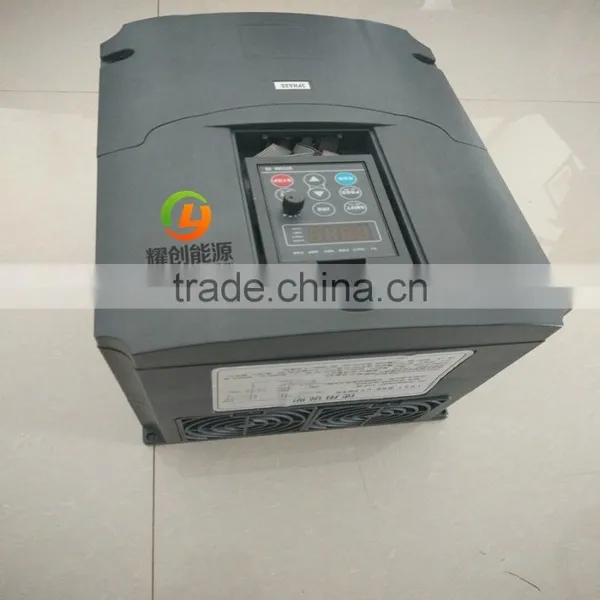

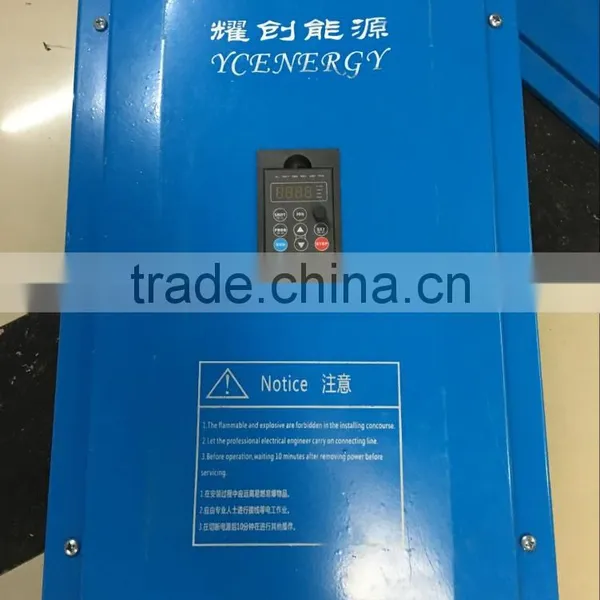

Solar Water Pump Inverter DC to AC Converter Mppt Function Three Phase 380V 1.5kw 1500W
US$ 29 - 39
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
YC
Model Number:
Yaochuang solar water pump inverter
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Solar Water Pump Inverter Solar Inverter 380v AC TO DC Converter Solar Power Inverter Mppt for Solar Water Pump SystemUS$ 29 - 39MOQ: 1 Set -
11000W Solar Water Pump Inverter for 7500W Solar Water Pump SystemUS$ 29 - 39MOQ: 1 Set
-
7500W Solar Water Pump Inverter for 5500w Solar Water Pump SystemUS$ 29 - 39MOQ: 1 Set
-
5500W Solar Water Pump Inverter for 4000W Solar Water Pump SystemUS$ 29 - 39MOQ: 1 Set
-
4000W Solar Water Pump Inverter for 3000W Solar Water Pump SystemUS$ 29 - 39MOQ: 1 Set
Place of Origin
Shanghai, China
Brand Name
YC
Model Number
Yaochuang solar water pump inverter
Application
Solar System Controller
Rated Voltage
Other, 380V solar water pump inverter
Maximum Current
50A/100A/150A/200A
Solar water pump inverter DC to AC converter Mppt function three phase 380V 1.5kw 1500W
In order to meet various pumping water applications requirements, YCSB solar water pump controller adopts maximum power point tracking and mature motor driving technology to maximize the output power of PV array. It supports DC and AC input, if sunshine is insufficient, the controller will switch to single or three phase AC input, such as genset or battery. And it provides fault detection, build-in VFD, and speed-controlling function, out of the box, convenient installation.
| Model | YCSBH3PH15 | YCSBH3PH22 | YCSBH3PH30 | YCSBH3PH37 | YCSBH3PH55 | YCSBH3PH75 | YCSBH3PH110 |
| Rated capacity(KW) | 1.5 | 2.2 | 3 | 4 | 5.5 | 7.5 | 11 |
| Max. input voltage(V) | 800 | ||||||
| MPPT voltage range(V) | 300-750 | ||||||
| Recommend input work voltage(V) | 560 | ||||||
| Max. input current(A) | 4 | 6 | 8 | 11 | 15 | 21 | 28 |
| Max. MPPT efficiency | 97% | ||||||
| Recommend pv array power(kw) | 1.7 | 2.3 | 3.3 | 4.5 | 6.0 | 8.3 | 11.3 |
| Input road | 2 | ||||||
| Max, drive motor power(kw) | 1.1 | 1.5 | 2.2 | 3 | 4 | 5.5 | 7.5 |
| Rated output voltage(V) | 380V 3 phase | ||||||
| Output frequency | 0~50/60Hz | ||||||
| Max. system efficiency | 98% | ||||||
| Operating temperature range | from-10℃ to +40℃ | ||||||
| Cooling method | Natural cooling + air cooling | ||||||
| Display | LCD | ||||||
| Altitude | 1000m,above 1000m need derate power 1000m | ||||||
| Meet the standards | EN 50178; IEC/EN 62109-1; IEC 61800 | ||||||

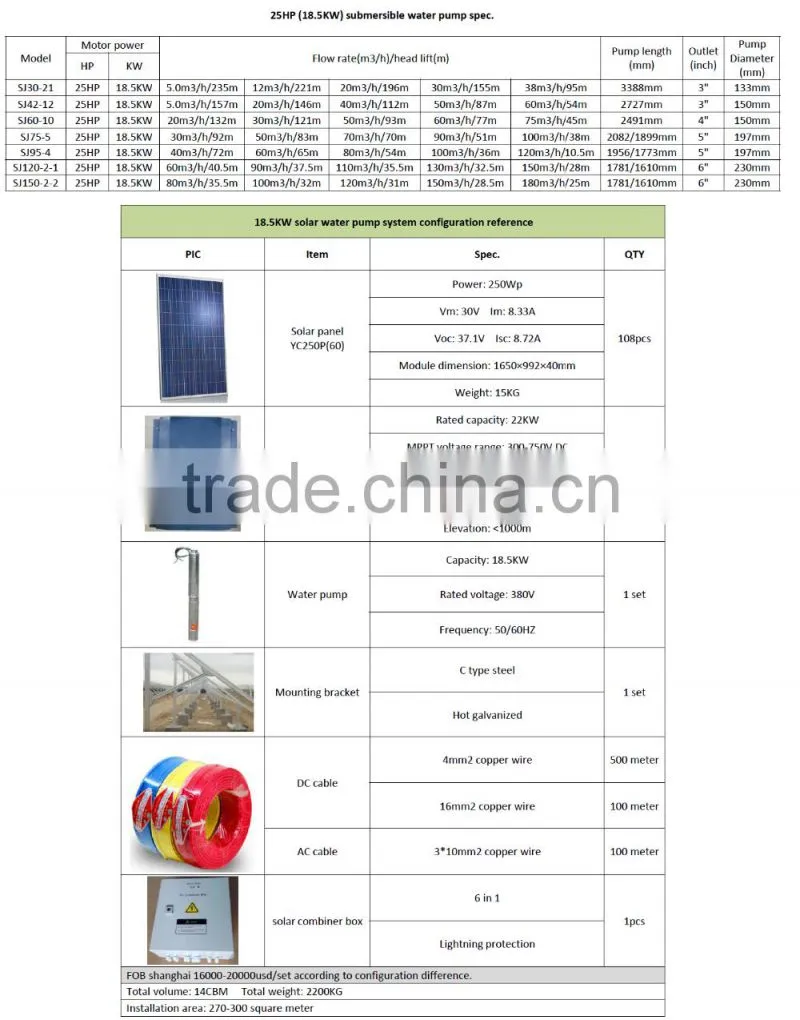

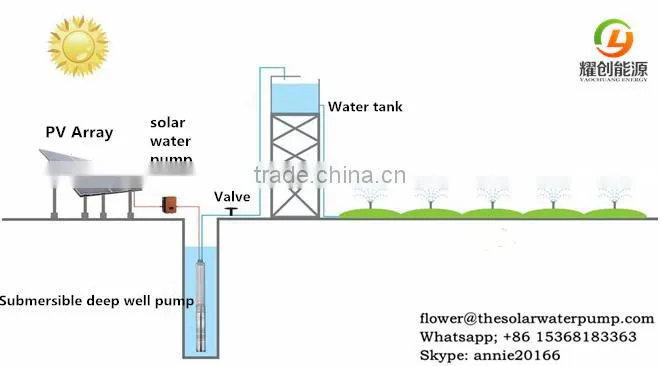

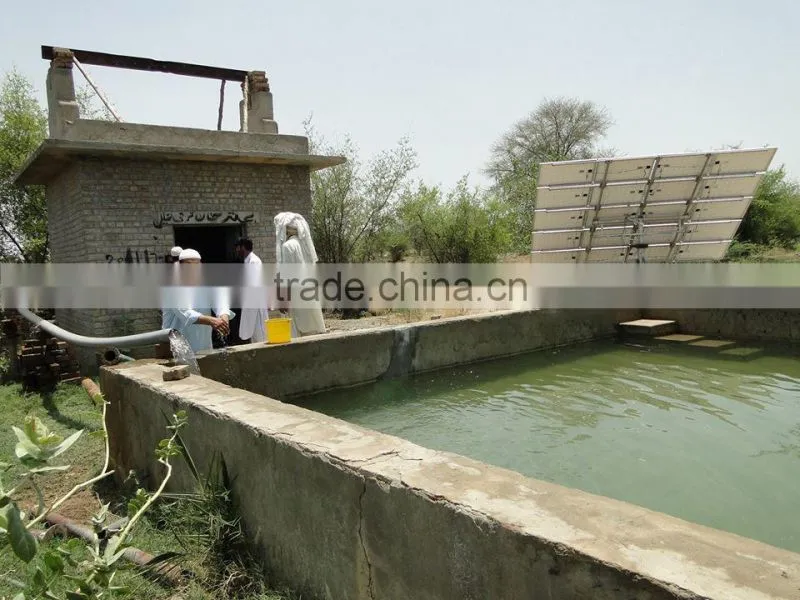

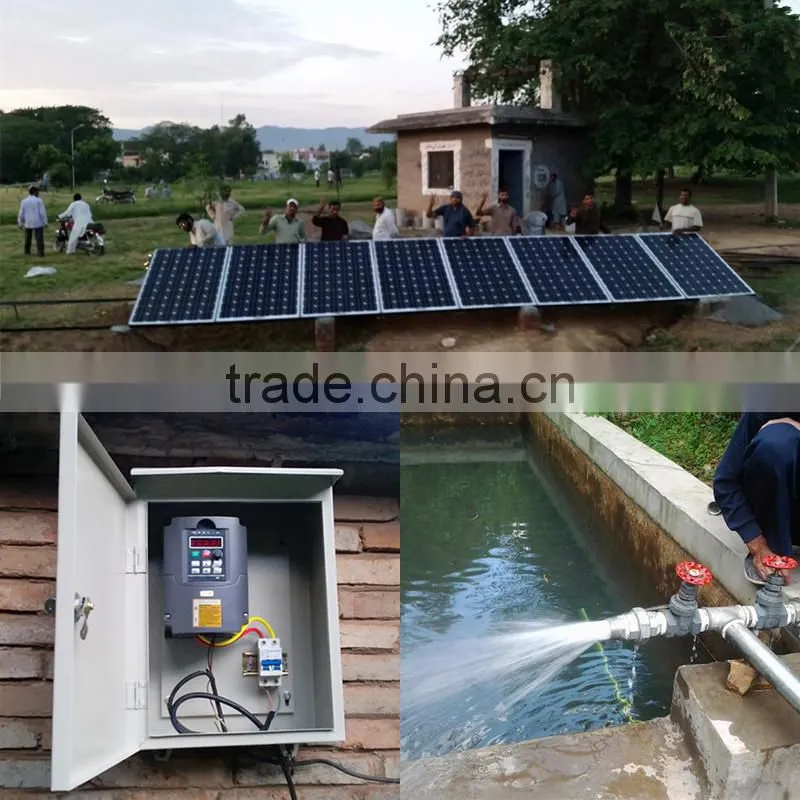

25hp solar water pump system configuration (solar panel + solar water pump + deep well pump)
