Solar water pump inverter DC to AC converter Mppt function three phase 380V 15kw 15 kw

FOB Price

USD $29 - $39 / Set

1 Set(Min.Order)

Supply Ability 9999 Set / Sets per Month
Port Shanghai
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shanghai, China	Brand Name	YC
Model Number	Yaochuang solar water pump inverter	Application	Solar System Controller
Rated Voltage	Other, 380V solar water pump inverter	Maximum Current	50A/100A/150A/200A

Product Description

Solar water pump inverter DC to AC converter Mppt function three phase 380V 15kw 15 kw

In order to meet various pumping water applications requirements, YCSB solar water pump controller adopts maximum power point tracking and mature motor driving technology to maximize the output power of PV array. It supports DC and AC input, if sunshine is insufficient, the controller will switch to single or three phase AC input, such as genset or battery. And it provides fault detection, build-in VFD, and speed-controlling function, out of the box, convenient installation.

Model	YCSBH3PH110	YCSBH3PH150	YCSBH3PH180	YCSBH3PH220	YCSBH3PH300	YCSBH3PH350	YCSBH3PH450
Rated capacity(KW)	11	15	18	22	30	35	45
Max. input voltage(V)	800
MPPT voltage range(V)	300-750
Recommend input work voltage(V)	560
Max. input current(A)	35	41	56	69	83	113	139
Max. MPPT efficiency	97%
Recommend pv array power(kw)	13.8	16.5	22.5	27.8	33.0	45.0	55.5
Input road	2
Max, drive motor power(kw)	9.2	11	15	18.5	22	30	37
Rated output voltage(V)	380V 3 phase
Output frequency	0~50/60Hz
Max. system efficiency	98%
Operating temperature range	from-10℃ to +40℃
Cooling method	Natural cooling + air cooling
Display	LCD
Altitude	1000m,above 1000m need derate power 1000m
Meet the standards	EN 50178; IEC/EN 62109-1; IEC 61800

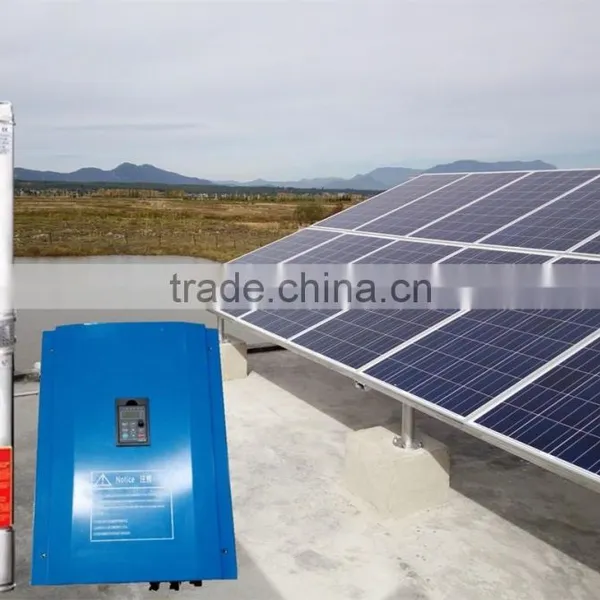

25hp solar water pump system configuration (solar panel + solar water pump + deep well pump)
