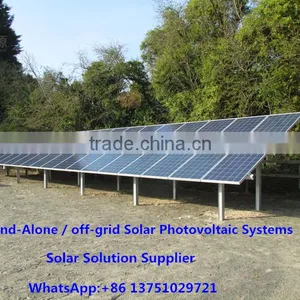

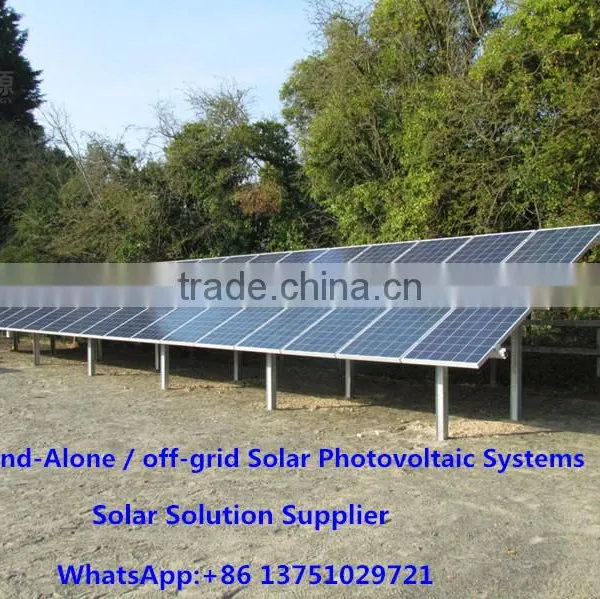

5kw 10kw 15kw 20kw Stand-Alone/off-grid Solar Photovoltaic Systems Solar Power System for home commercial
Solar photovoltaic system or Solar power system is one of renewable energy system which uses PV modules to convert sunlight into electricity. The electricity generated can be either stored or used directly, fed back into grid line or combined with one or more other electricity generators or more renewable energy source. Solar PV system is very reliable and clean source of electricity that can suit a wide range of applications such as residence, industry, agriculture, livestock, etc.
Solar PV system includes different components that should be selected according to your system type, site location and applications.

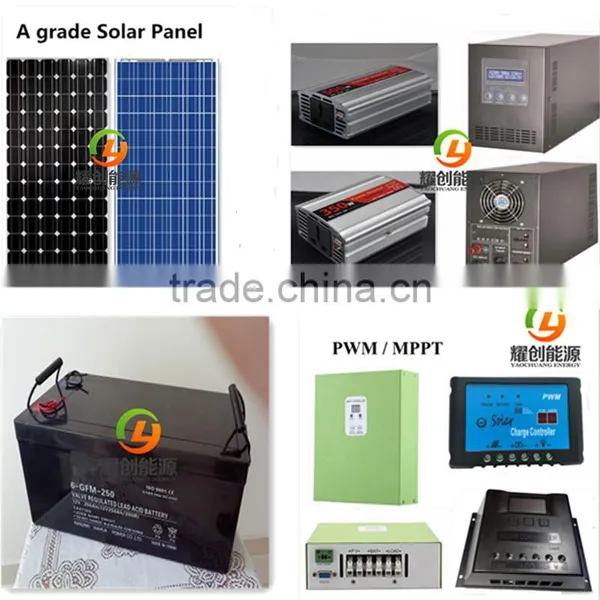

Major system components
• PV module – converts sunlight into DC electricity.
• Solar charge controller – regulates the voltage and current coming from the PV panels going to
battery and prevents battery overcharging and prolongs the battery life.
• Inverter – converts DC output of PV panels or wind turbine into a clean AC current for AC
appliances or fed back into grid line.
• Battery – stores energy for supplying to electrical appliances when there is a demand.
• Load – is electrical appliances that connected to solar PV system such as lights, radio, TV, computer, pump,refrigerator, etc.
• Auxiliary energy sources - is diesel generator or other renewable energy sources.
Solar panel
Reliable Quality
A grade Positive power tolerance:0~+5W
Potential Induced Degradation (PID) Resistant
Modules binned by current to improve system performance
100% EL double-inspection ensures modules are defects free
Functional Features
Applies to commercial, residential applications
Easily installed on the ground, roof, building face or tracking system.
Modular, no moving parts, fully scalable and easily installed.
Reliable and virtually maintenance-free power generation.
Produced with strict quality control standards and certification program.
Warranty
10-year repair and workmanship warranty
12-year warranty at 90% power output
25-year warranty at 80% power output
Solar Off grid inverter
1. Toroidal transformer of light weight, small size, high conversion efficiency, low power consumption, good load capacity and load adaptability, etc.
2. AC input automatic voltage regulator (AVR), input voltage range of 145V ~ 275V.
3. Liquid crystal (LCD) display, backlight power saving mode. The main display real-time battery voltage, battery capacity, input and output voltage, output frequency, duty ratio, etc. Automatically switch the display according to different working conditions.
4. Having overload, battery overcharge, over discharge, output short circuit, over-temperature protection features.
5. Full SMD modular structure, stable performance, easy maintenance.
Off grid solar charge controller
Solar panels may make power at very high voltage and current. If all that is fed directly to the battery then it may get overcharged or blast (in extreme cases).
A solar charge controller prevents this from happening. It is is placed in between the solar panels and the battery bank to regulate the charging (current and voltage) of the batteries through solar.
Basically, without a charge controller it is not possible to safely use solar energy for charging batteries.
Protection Functions
Battery over-charge/discharge protection
Over-current disconnect function
Over-loading disconnect function
Over-temperature protection
Short circuit disconnect function
Reverse polarity protection
Anti-reverse charging on night
Solar Off grid Battery
Solar Power Storage battery Features:
Low self-discharge and long shelf life
Non-Spillable construction
Safety valve installation for explosion proof
Exceptional deep discharge recovery performance
99.7% pure lead calcium grids and A recognized component of U.L
100% precise quality testing, stable quality and high reliable performance
Unique grid alloy formula and updated manufacturing technique
Performance show
Company Certifications
1. Free of making offers, craft and technical guidance timely.
2. We can also make customized products according to your needs.
After-sale service:
1. We provide long-term after-sale service.
2. Just call or email to consult any relevant questions since we have a special line of aftersale service which will be available all day,or you can communicate online with our foreign sales and solve the problems.
3. We will send many new styles to our old customers.
Yaochuang Energy Co.,Ltd. is a professional solar power system integrator, especially solar water pump system, residence off grid solar power system, on grid solar power plant, solar street light, etc.
Sale office is located in Kunming, a very beautiful place be named as Flower city, it is near to Thailand, Myanmar, Vietnam, Laos, and we have installed many solar water pump system in those countries, and get high praise.On the other hand,those provinces------Yunnan ,Guizhou,Tibet, three provinces are rich of solar radiation, we set our office in Kunming to dvelop the solar power system in those three provinces.
If have any doubt or want to know further about solar products,please feel free to contact us or send me inquiry .
Contact Cicily by :
Skype: ycenergy
Wechat&WhatsApp: + 86 13751029721
Email: green(at)
Send Inquiry to This Supplier
